Main Shaft

Lamborghini Gallardo LP550 Spyder

Find Your Part

Lamborghini Gallardo LP550 Spyder - MAIN SHAFT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

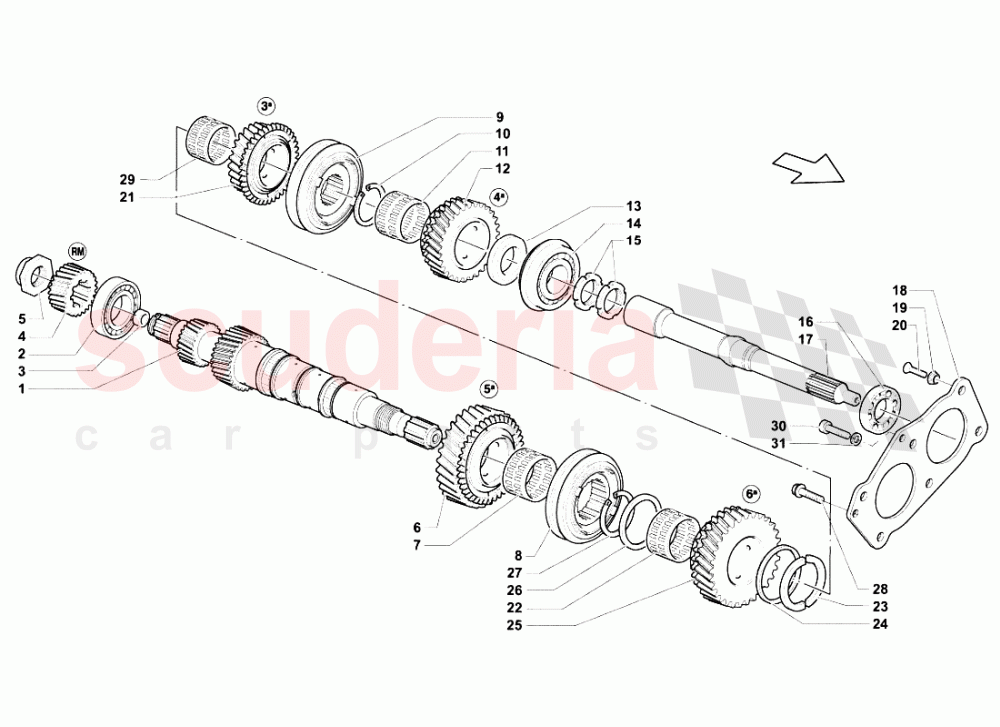

MAIN SHAFT of Lamborghini Lamborghini Gallardo LP550 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 86311105F
MAIN SHAFT 		$3,051.07 1
002 86311372C
BEARING
IN STOCK 		$252.03 1
003 86311357
BUSHING 		$47.45 1
004 86311507A
REVERSE IDLE GEAR 		$634.43 1
005 86307303
RING NUT M27 X 15
IN STOCK 		$98.01 2
006 86311361K
FIFTH GEAR 		$1,875.00 1
007 86311325
ROLLER CAGE 		$91.00 1
008 86311241D
SYNCHRONIZING GEAR 		$1,673.40 1
009 86311301D
SYNCHRONIZING GEAR 		$1,092.75 1
010 86311287A
RING 		$20.52 1
011 86311118
ROLLER CAGE 		$102.83 1
012 86311351C
FOURTH GEAR 		$1,090.06 1
013 86311157
SPACER 		$70.42 1
014 86311235C
BEARING 35X80X21 		$137.77 1
015 86307291A
RING NUT 		$78.64 2
016 86311133
BEARING 		$82.25 1
017 86311103A
SHAFT 		$872.31 1
018 86301193B
PLATE 		$136.44 1
019 86311276
WASHER ( FOR 086525283A) 		$0.91 (87.4% off) 6
021 86311285A
THIRD GEAR 		$1,056.46 1
022 86311228
ROLLER CAGE 		$91.00 1
023 86311876
RING 		$280.27 2
024 86311183
RING 		$50.81 1
025 86311389J
SIXTH GEAR 		$1,090.06 1
026 86311876B
SPACER 		$173.39 1
027 86311152
RING 		$20.52 1
029 86311150
ROLLER CAGE 		$76.35 1
