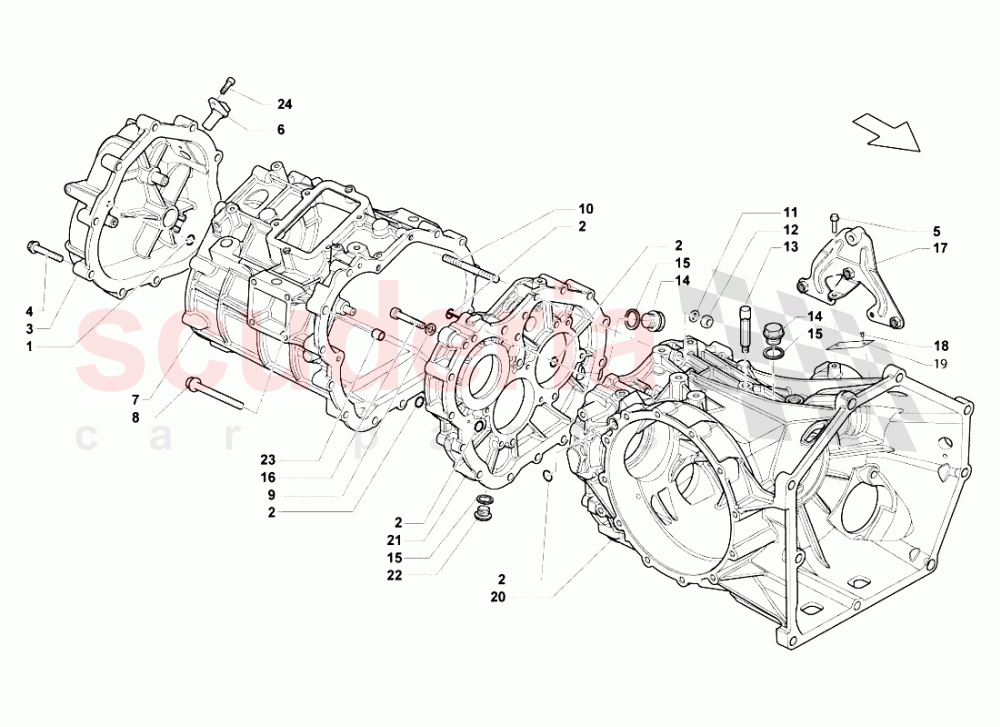

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
002	WHT001492	O-RING	WHT001492 O-RING	$4.58	1
003	86301201G	COVER (MANUAL GEARBOX)	86301201G COVER (MANUAL GEARBOX)	$2,782.25	1
003	86301201D	COVER (E-GEAR)	86301201D COVER (E-GEAR)	$875.00	1
004	WHT003209	SCREW M8X45	WHT003209 SCREW M8X45	$4.78	10
006	86927321	TIMING SENSOR	86927321 TIMING SENSOR	$121.40	1
007	86301051B	TRANSMISSION CASE (E-GEAR) -	86301051B TRANSMISSION CASE (E-GEAR) -	$3,413.98	1
007	86301051C	MANUAL TRANSMISSION CASE (MANUAL GEARBOX) -	86301051C MANUAL TRANSMISSION CASE (MANUAL GEARBOX) -	$3,944.89	1
013	86301047B	BREATHER PIPE	86301047B BREATHER PIPE	$94.89	1
014	86301114A	PLUG	86301114A PLUG	$21.57	1
017	420251375	BRACKET	420251375 BRACKET	$33.22	1
022	86301141	MAGNETIC PLUG	86301141 MAGNETIC PLUG	$26.89	1
023	86301153B	DOWEL SLEEVE	86301153B DOWEL SLEEVE	$5.72	6
