Cooler For Coolant of Lamborghini Lamborghini Gallardo LP550 Coupe

View All

Lamborghini Gallardo LP550 Coupe - Cooler For Coolant

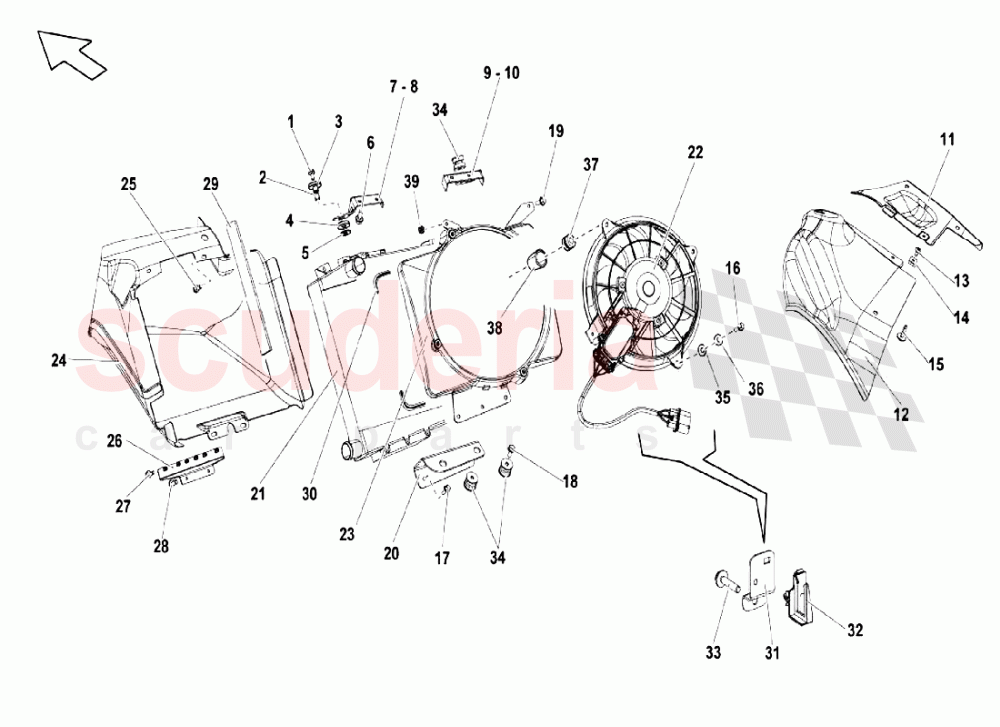

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N10005109	SCREW M8X35	N10005109 SCREW M8X35	$2.78	8
002	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE	$10.37	8
003	400121268	RUBBER BUSH	400121268 RUBBER BUSH	$11.56	8
004	WHT001189	PLASTIC WASHER	WHT001189 PLASTIC WASHER	$6.27	8
005	WHT001942	WASHER	WHT001942 WASHER	$3.30	8
006	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT	$1.96	8
007	400121241	LH BRACKET	400121241 LH BRACKET	$93.08	1
007	400121240	RH BRACKET	400121240 RH BRACKET	$293.69	1
009	400121233	LH BRACKET	400121233 LH BRACKET	$101.77	1
009	400121232	RH BRACKET	400121232 RH BRACKET	$341.63	1
011	400807946	RH Conveyor	400807946 RH Conveyor	$148.51	1
011	400807945	LH CONVEYOR	400807945 LH CONVEYOR	$148.51	1
012	400809963A	LH CONVEYOR	400809963A LH CONVEYOR	$454.29	1
012	400809964A	RH CONVEYOR	400809964A RH CONVEYOR	$454.29	1
015	N0902324	SCREW M6X10	N0902324 SCREW M6X10	$1.04 MSRP: ~~7.25~~ (85.7% off)	8
016	N10347004	SCREW M6X16	N10347004 SCREW M6X16	$0.98 MSRP: ~~7.27~~ (86.5% off)	8
017	WHT002225A	HEXAGON SOCKET HEAD BOLT	WHT002225A HEXAGON SOCKET HEAD BOLT	$1.43 MSRP: ~~7.16~~ (80% off)	6
018	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT	$1.96	4
019	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	N90780903 OVAL HEXAGON SOCKET HEAD BOLT	$0.98	4
020	400121235A	RH BRACKET	400121235A RH BRACKET	$203.65	1
020	400121235	LH BRACKET	400121235 LH BRACKET	$226.50	1
021	400121252D	RH WATER RADIATOR	400121252D RH WATER RADIATOR	$2,075.52	1
021	400121253D	LH WATER RADIATOR	400121253D LH WATER RADIATOR	$2,009.42	1
022	4Z7959455M	RADIATOR ELECTRIC FAN	4Z7959455M RADIATOR ELECTRIC FAN	$1,721.48	2
023	400122193C	LH SUPPORT	400122193C LH SUPPORT	$509.42	1
023	400122194C	RH Support	400122194C RH Support	$610.21	1
024	400807158C	RH Conveyor	400807158C RH Conveyor	$879.02	1
024	400807157C	LH CONVEYOR	400807157C LH CONVEYOR	$879.02	1
025	N0902324	SCREW M6X10	N0902324 SCREW M6X10	$1.04 MSRP: ~~7.25~~ (85.7% off)	4
026	400260197C	BRACKET	400260197C BRACKET	$73.66	1
029	400807265	GASKET	400807265 GASKET	$10.55	2
030	417103484	GASKET	417103484 GASKET	$8.20	4
031	420121261A	BRACKET	420121261A BRACKET	$3.55	2
032	1J0971830R	BRACKET FOR CONNECTOR HOUSING	1J0971830R BRACKET FOR CONNECTOR HOUSING	$4.90	2
033	N10347004	SCREW M6X16	N10347004 SCREW M6X16	$0.98 MSRP: ~~7.27~~ (86.5% off)	2
035	WHT002961	WASHER	WHT002961 WASHER	$0.42	8
036	N0115484	WASHER	N0115484 WASHER	$4.37	8
037	400121129A	SPACER HOLDER	400121129A SPACER HOLDER	$15.47	8
038	7L121585	RUBBER BUSHING	7L121585 RUBBER BUSHING	$18.96	8
039	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	$0.21	8
