Coolant Regulator Housing of Lamborghini Lamborghini Gallardo LP550 Coupe

View All

Lamborghini Gallardo LP550 Coupe - Coolant Regulator Housing

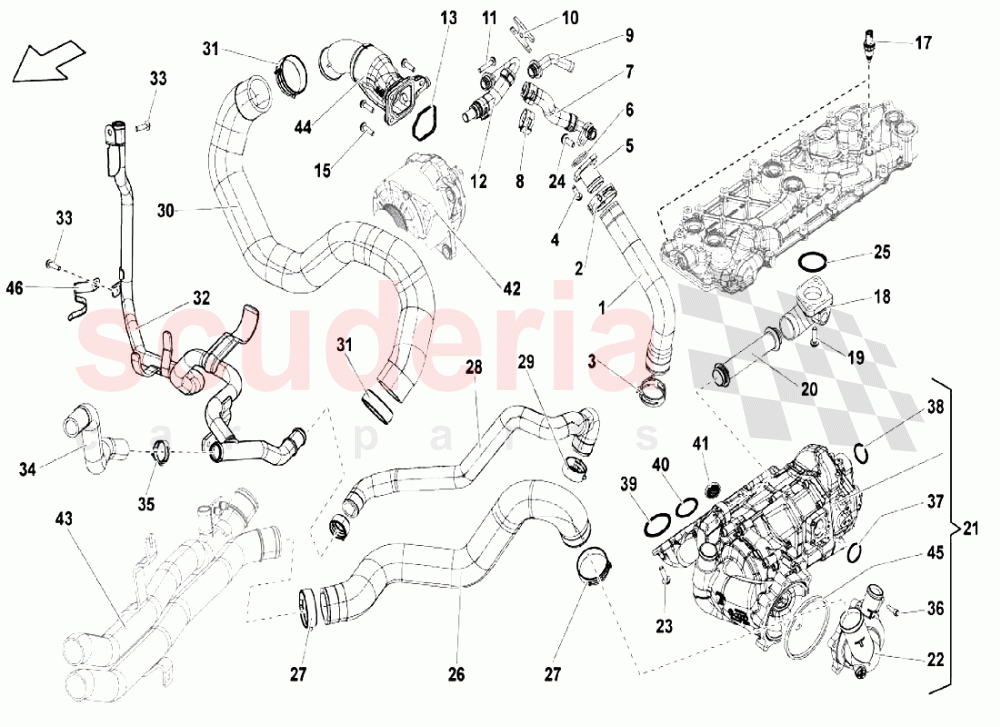

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7L121057T	COOLANT HOSE IN STOCK	7L121057T COOLANT HOSE IN STOCK	$19.79	1
002	N90687101	SPRING BAND CLAMP IN STOCK	N90687101 SPRING BAND CLAMP IN STOCK	$7.68	1
003	6B145917	SPRING BAND CLAMP IN STOCK	6B145917 SPRING BAND CLAMP IN STOCK	$5.66	1
004	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	$1.34	2
005	7L121133M	WATER CONNECTION	7L121133M WATER CONNECTION	$61.09	1
006	N90544501	SEAL RING IN STOCK	N90544501 SEAL RING IN STOCK	$3.89 MSRP: ~~16.90~~ (77% off)	1
007	7L121030C	COOLANT HOSE	7L121030C COOLANT HOSE	$126.61	1
008	N90926401	SPRING BAND CLAMP IN STOCK	N90926401 SPRING BAND CLAMP IN STOCK	$3.77	2
009	7L121131K	PIPE UNION	7L121131K PIPE UNION	$88.86	1
010	7C121077H	RETAINING PLATE	7C121077H RETAINING PLATE	$81.06	1
012	7L121030B	COOLANT HOSE	7L121030B COOLANT HOSE	$144.49	1
013	7L103121R	SEAL	7L103121R SEAL	$17.35	1
015	N10700201	HEXAGON SOCKET HEAD BOLT IN STOCK	N10700201 HEXAGON SOCKET HEAD BOLT IN STOCK	$2.96 MSRP: ~~7.25~~ (59.2% off)	3
018	7L121133J	WATER CONNECTION	7L121133J WATER CONNECTION	$127.70	1
020	7L121237B	Water Pipe	7L121237B Water Pipe	$56.58	1
023	N10700201	HEXAGON SOCKET HEAD BOLT IN STOCK	N10700201 HEXAGON SOCKET HEAD BOLT IN STOCK	$2.96 MSRP: ~~7.25~~ (59.2% off)	13
024	N10451408	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10451408 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.47	1
025	N91008501	O-RING IN STOCK	N91008501 O-RING IN STOCK	$5.14	1
026	420121082A	PIPE IN STOCK	420121082A PIPE IN STOCK	$72.03	1
027	N90926501	SPRING BAND CLAMP IN STOCK	N90926501 SPRING BAND CLAMP IN STOCK	$9.94	2
028	420819370A	PIPE IN STOCK	420819370A PIPE IN STOCK	$48.72	1
029	N90687101	SPRING BAND CLAMP IN STOCK	N90687101 SPRING BAND CLAMP IN STOCK	$7.68	2
031	N90926501	SPRING BAND CLAMP IN STOCK	N90926501 SPRING BAND CLAMP IN STOCK	$9.94	2
032	400121481A	PIPE	400121481A PIPE	$1,029.16	1
033	N91096701	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096701 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.63	3
034	400819371A	PIPE	400819371A PIPE	$84.42	1
035	N90686901	SPRING BAND CLAMP IN STOCK	N90686901 SPRING BAND CLAMP IN STOCK	$0.94	2
036	WHT003874	SEAL BOLT WITH SEALING RING	WHT003874 SEAL BOLT WITH SEALING RING	$5.72	5
037	WHT003732	O-RING IN STOCK	WHT003732 O-RING IN STOCK	$27.78	1
038	WHT003731	O-RING 27 X 3.5 IN STOCK	WHT003731 O-RING 27 X 3.5 IN STOCK	$27.78	1
039	7L121119B	O-RING IN STOCK	7L121119B O-RING IN STOCK	$49.16	1
040	7L115446A	ENGINE OIL PUMP SEAL IN STOCK	7L115446A ENGINE OIL PUMP SEAL IN STOCK	$31.78	1
041	7L103081	OIL STRAINER IN STOCK	7L103081 OIL STRAINER IN STOCK	$28.05	8
044	7L121127B	WATER CONNECTION	7L121127B WATER CONNECTION	$284.28	1
045	79121119C	SEAL IN STOCK	79121119C SEAL IN STOCK	$18.20	1
046	400121463A	BRACKET	400121463A BRACKET	$33.27	1
