Passenger Compartment Trims 1 of Lamborghini Lamborghini Diablo SV (1999)

View All

Lamborghini Diablo SV (1999) - Passenger Compartment Trims 1

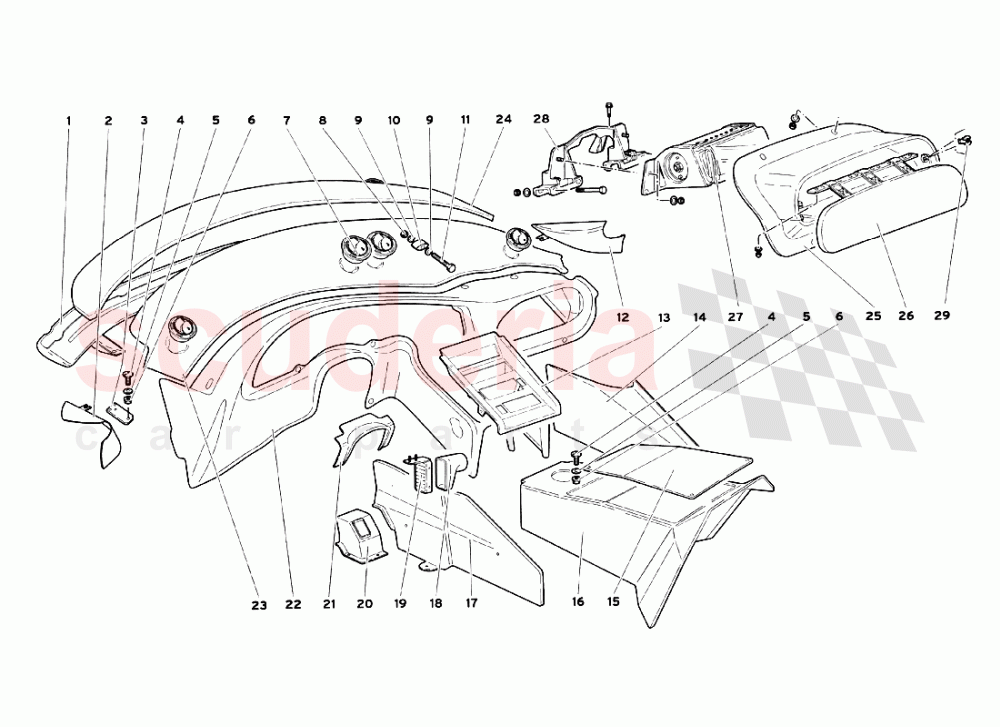

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9414019	CONVEYOR	9414019 CONVEYOR CONVOGLIATORE	$2,506.20	1
002	9414338	LEFT PANEL	9414338 LEFT PANEL PANNELLO SX	$145.80	1
003	9414136	PLATE	9414136 PLATE PIASTRINA	$17.62	2
004	9421547	SCREW	9421547 SCREW VITE	$0.68	6
005	9421549	WASHER	9421549 WASHER RONDELLA	-	6	Enquire
006	9421548	NUT	9421548 NUT DADO	$1.38	6
007	9414507	air vent	9414507 air vent BOCCHETTONE	$32.08	4
008	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	2
009	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	4
010	9414129	SPACER	9414129 SPACER DISTANZIALE	$93.96	2
011	8100636	SCREW	8100636 SCREW VITE	$0.13 MSRP: ~~7.37~~ (98.2% off)	2
012	9414337	RIGHT PANEL	9414337 RIGHT PANEL PANNELLO DX	$145.80	1
013	9414145	TUNNEL PANEL	9414145 TUNNEL PANEL PLANCIA TUNNEL	$1,631.51	1
014	9414303	PANEL	9414303 PANEL FIANCHETTO DX CONSOLLE	$299.63 MSRP: ~~303.00~~ (1.1% off)	1
015	9458444	PANEL ON TUNNEL	9458444 PANEL ON TUNNEL PANNELLO COPRITUNNEL	$62.46	1
016	78004090	TUNNEL COVERING	78004090 TUNNEL COVERING RIVESTIMENTO TUNNEL	$3,436.71	1
017	9414336	PANEL	9414336 PANEL FIANCHETTO SX CONSOLLE	$201.63 MSRP: ~~204.00~~ (1.2% off)	1
018	9458356	UNION	9458356 UNION BOCCHETTONE	$161.92 MSRP: ~~168.00~~ (3.6% off)	1
019	9958402	GRILLE	9958402 GRILLE GRIGLIA	$40.56 MSRP: ~~41.00~~ (1.1% off)	1
020	9458364	CASE	9458364 CASE SCATOLA	$66.95	1
021	9414321	COVERING	9414321 COVERING RIVESTIMENTO	$684.87	1
022	69003455	DASHBOARD PANEL	69003455 DASHBOARD PANEL CRUSCOTTO GREZZO	-	1	Enquire
023	69003720	UPPER COVERING	69003720 UPPER COVERING PARTE SUP. PLANCIA	$699.75	1
024	9414345	BEND	9414345 BEND CURVANO	$147.65	1
025	69003113	AIRBAG COVERING	69003113 AIRBAG COVERING RIVESTIMENTO AIRBAG	$828.79 MSRP: ~~867.00~~ (4.4% off)	1
026	9914316	AIRBAG LID	9914316 AIRBAG LID SPORTELLO AIRBAG	-	1	Enquire
027	9914313	AIRBAG MODULE	9914313 AIRBAG MODULE MODULO AIRBAG	$7,990.05	1
028	9914121	SUPPORT - SUPPORTO	9914121 SUPPORT - SUPPORTO O	$366.00	1
029	69003254	CLIP	69003254 CLIP	$5.72	4
