Dashboard Instruments of Lamborghini Lamborghini Diablo SV (1999)

View All

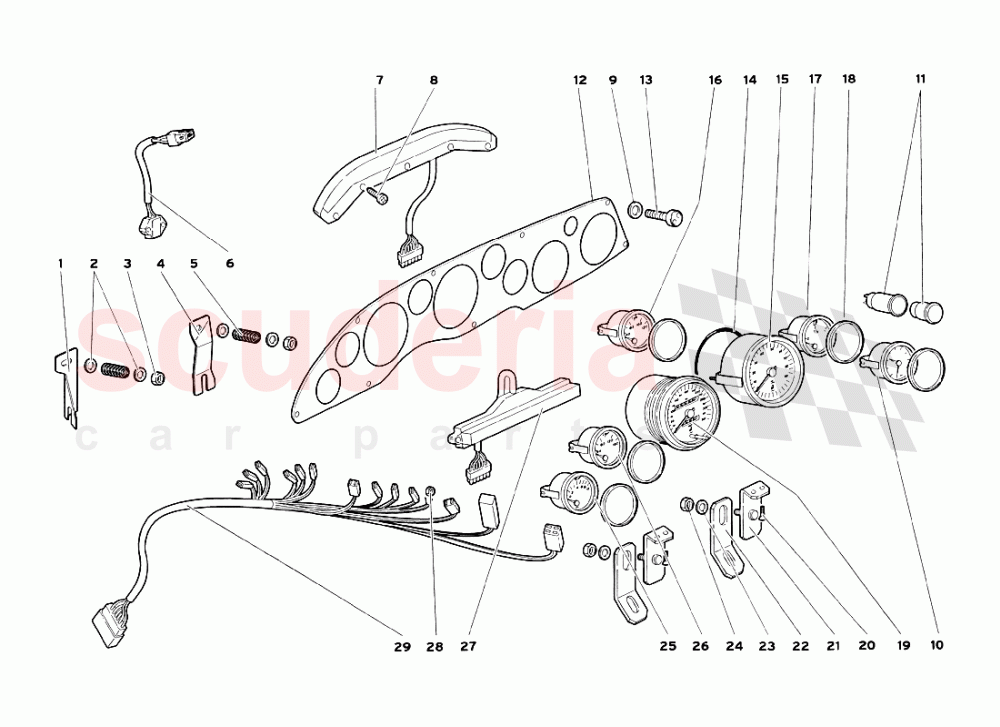

Lamborghini Diablo SV (1999) - Dashboard Instruments

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9414415	BRACKET	9414415 BRACKET STAFFA SX	-	1	Enquire
001	9414422	LEFT BRACKET	9414422 LEFT BRACKET (Valid for GB - July 1999) STAFFA SX	-	1	Enquire
001	9414422	LEFT BRACKET	9414422 LEFT BRACKET (Valid for AUSTRALIA - July 1999) STAFFA SX	-	1	Enquire
002	8400606	WASHER	8400606 WASHER RONDELLA	-	4	Enquire
003	N01100637	NUT M6	N01100637 NUT M6 DADO	-	4	Enquire
004	9414435	RIGHT BRACKET	9414435 RIGHT BRACKET (Valid for GB - July 1999) STAFFA DX	-	1	Enquire
004	9414414	BRACKET	9414414 BRACKET STAFFA DX	-	1	Enquire
004	9414435	RIGHT BRACKET	9414435 RIGHT BRACKET (Valid for AUSTRALIA - July 1999) STAFFA DX	-	1	Enquire
005	9414416	SPRING	9414416 SPRING MOLLA	-	2	Enquire
006	4526662	TEMPERATURE SENS.	4526662 TEMPERATURE SENS. SENSORE TEMPERATURA ESTERNA	-	1	Enquire
007	60002492	WARNING LIGHTS	60002492 WARNING LIGHTS GRUPPO SPIE	-	1	Enquire
008	8700449	SCREW	8700449 SCREW VITE	-	5	Enquire
009	8220306	SPRING	8220306 SPRING MOLLA	-	9	Enquire
010	60002603	CLOCK	60002603 CLOCK OROLOGIO	-	1	Enquire
011	5933188	CIGAR LIGHTER	5933188 CIGAR LIGHTER ACCENDISIGARI	-	1	Enquire
012	60002617	INSTRUMENT PANEL	60002617 INSTRUMENT PANEL (Valid for GB - July 1999) PLANCIA PORTASTRUMENTI	-	1	Enquire
012	60002596	INSTRUMENT PANEL	60002596 INSTRUMENT PANEL PLANCIA PORTASTRUMENTI	-	1	Enquire
012	60002617	INSTRUMENT PANEL	60002617 INSTRUMENT PANEL (Valid for AUSTRALIA - July 1999) PLANCIA PORTASTRUMENTI	-	1	Enquire
013	8700347	SCREW	8700347 SCREW VITE	-	9	Enquire
014	8609802	SEAL	8609802 SEAL ANELLO COMMA	-	1	Enquire
015	60002598	REVOLUTION COUNT.	60002598 REVOLUTION COUNT. CONTAGIRI	-	1	Enquire
016	60002601	WATER TEMP. GAUGE	60002601 WATER TEMP. GAUGE INDICATORE TEMPERATURA ACQUA	-	1	Enquire
017	60002602	FUEL LEVEL GAUGE	60002602 FUEL LEVEL GAUGE INDICATORE LIVELLO CARBURANTE	-	1	Enquire
018	6030886	SPACER	6030886 SPACER DISTANZIALE	-	5	Enquire
019	60002604	SPEEDOMETER-MILES	60002604 SPEEDOMETER-MILES (Valid for USA - July 1999) CONTAMIGLIA	-	1	Enquire
019	60002597	SPEEDOMETER - KM	60002597 SPEEDOMETER - KM CONTACHILOMETRI	-	1	Enquire
019	60002604	SPEEDOMETER-MILES	60002604 SPEEDOMETER-MILES (Valid for GB - July 1999) CONTAMIGLIA	-	1	Enquire
020	8700457	SCREW	8700457 SCREW VITE	-	4	Enquire
021	9414433	BRACKET	9414433 BRACKET STAFFA	-	2	Enquire
022	9414432	BRACKET	9414432 BRACKET STAFFA	-	2	Enquire
023	8400509	WASHER	8400509 WASHER RONDELLA	-	2	Enquire
024	8200501	NUT	8200501 NUT DADO	-	2	Enquire
025	60002599	OIL PRESSURE GAUGE	60002599 OIL PRESSURE GAUGE INDICATORE PRESSIONE OLIO	-	1	Enquire
026	60002600	OIL TEMPERA. GAUGE	60002600 OIL TEMPERA. GAUGE INDICATORE TEMPERATURA OLIO	-	1	Enquire
027	60002493	WARNING LIGHTS	60002493 WARNING LIGHTS GRUPPO SPIE	-	1	Enquire
028	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT DADO	-	2	Enquire
029	61002126	ELECT CABLE	61002126 ELECT CABLE CABLAGGIO CRUSCOTTO	-	1	Enquire
