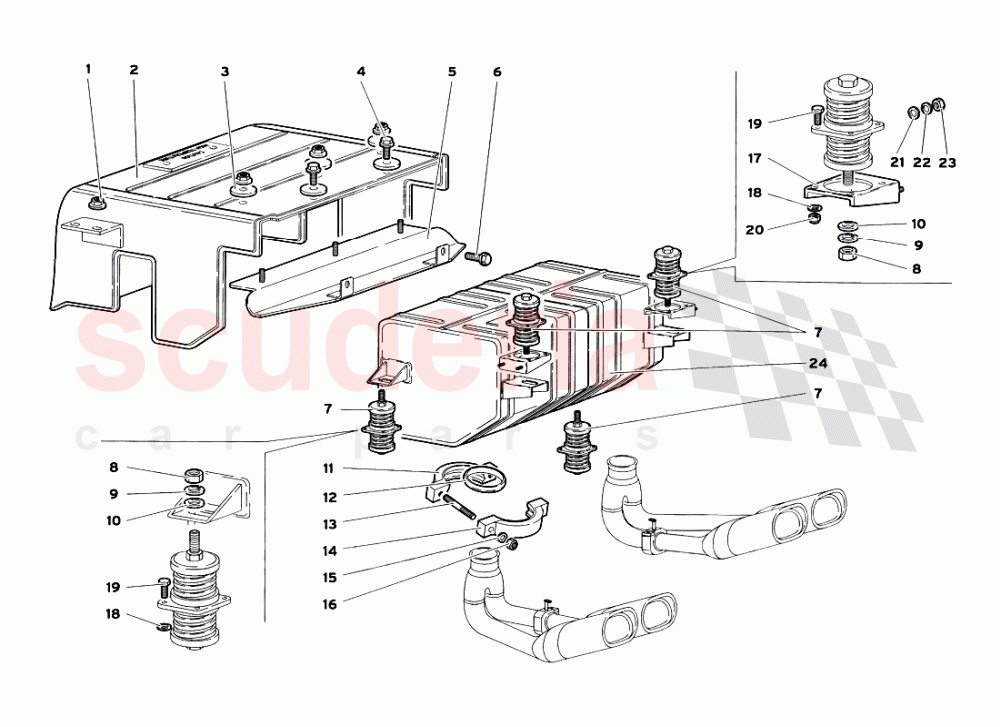

Lamborghini Diablo SV (1999) - Exhaust System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	-	7	Enquire
002	4435003	SHIELD	4435003 SHIELD PROTEZIONE	-	1	Enquire
003	9444151	WASHER	9444151 WASHER RONDELLA	-	5	Enquire
004	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	2	Enquire
005	44001454	SHIELD	44001454 SHIELD PROTEZIONE	-	1	Enquire
006	8700449	SCREW	8700449 SCREW VITE	-	2	Enquire
007	4432031	SHOCK ABSORBER	4432031 SHOCK ABSORBER AMMORTIZZATORE	-	4	Enquire
008	N10155210	NUT	N10155210 NUT DADO	-	4	Enquire
009	8451005	WASHER	8451005 WASHER RONDELLA	-	4	Enquire
010	8401006	WASHER	8401006 WASHER RONDELLA	-	4	Enquire
011	4425084	HALF RING	4425084 HALF RING SEMIANELLO FILETTATO	-	2	Enquire
012	4424070	BI-CONE RING	4424070 BI-CONE RING ANELLO DOPPIO CONO	-	2	Enquire
013	N0444416	STUD BOLT	N0444416 STUD BOLT PRIGIONIERO	-	4	Enquire
014	4425084	HALF RING	4425084 HALF RING SEMIANELLO	-	2	Enquire
015	8440806	WASHER	8440806 WASHER use : WHT001185	-	4	Enquire
016	N02214621	HEXAGON NUT M8 SELF-LOCKING	N02214621 HEXAGON NUT M8 SELF-LOCKING DADO	-	4	Enquire
017	4437428	SUPPORT - SUPPORTO	4437428 SUPPORT - SUPPORTO O	-	2	Enquire
018	8410508	WASHER	8410508 WASHER RONDELLA	-	16	Enquire
019	N01020717	SCREW M5X12	N01020717 SCREW M5X12 VITE	-	16	Enquire
020	N0211963	NUT	N0211963 NUT DADO	-	16	Enquire
021	8400801	WASHER	8400801 WASHER RONDELLA	-	4	Enquire
022	N0152785	WASHER	N0152785 WASHER RONDELLA	-	4	Enquire
023	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	4	Enquire
024	4430979	SILENCER/MUFFLER	4430979 SILENCER/MUFFLER SILENZIATORE	-	1	Enquire
024	4432231	SILENCER/MUFFLER	4432231 SILENCER/MUFFLER (Valid for JAPAN - July 1999) SILENZIATORE	-	1	Enquire
