Exhaust System 1 of Lamborghini Lamborghini Diablo SV (1999)

View All

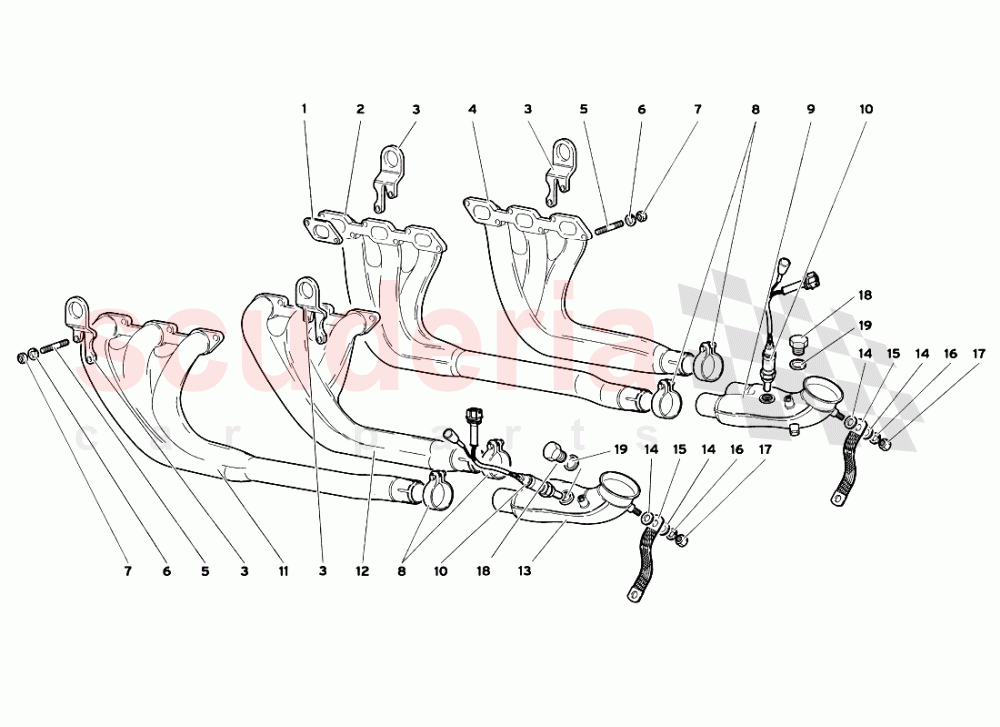

Lamborghini Diablo SV (1999) - Exhaust System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7M253039	GASKET	7M253039 GASKET Alternative use : 111532	$39.86	12
002	4427530	EXHAUST MANIFOLD	4427530 EXHAUST MANIFOLD COLLETTORE ANT. DX	$1,007.45 MSRP: ~~1,020.00~~ (1.2% off)	1
003	4432438	HOOK	4432438 HOOK GANCIO	$36.36 MSRP: ~~38.05~~ (4.4% off)	4
004	4427529	EXHAUST MANIFOLD	4427529 EXHAUST MANIFOLD COLLETTORE POST. DX	$1,007.45 MSRP: ~~1,020.00~~ (1.2% off)	1
005	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$22.30	24
006	8410817	WASHER	8410817 WASHER RONDELLA	$4.69	24
007	N90522002	NUT 8X1,25	N90522002 NUT 8X1,25 DADO	$2.35 MSRP: ~~7.13~~ (67% off)	24
008	8835002	STRAP	8835002 STRAP FASCETTA	$288.78	4
009	44001238	EXHAUST MANIFOLD	44001238 EXHAUST MANIFOLD COLLETTORE A TRE VIE DX	$636.48	1
010	R1470226	OXIGEN SENSOR IN STOCK	R1470226 OXIGEN SENSOR IN STOCK	$300.25 MSRP: ~~353.00~~ (14.9% off)	2
011	4427528	EXHAUST MANIFOLD	4427528 EXHAUST MANIFOLD COLLETTORE ANT. SX	$1,007.45 MSRP: ~~1,020.00~~ (1.2% off)	1
012	4427527	EXHAUST MANIFOLD	4427527 EXHAUST MANIFOLD COLLETTORE POST. SX	$1,007.45 MSRP: ~~1,020.00~~ (1.2% off)	1
013	44001236	EXHAUST MANIFOLD	44001236 EXHAUST MANIFOLD COLLETTORE A TRE VIE SX	$636.48	1
014	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	4
015	1604328	GROUND CABLE	1604328 GROUND CABLE CAVO MASSA	-	2	Enquire
016	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	2
017	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	2
018	8931808	PLUG	8931808 PLUG (Valid for SOUTH AFRICA - July 1999) TAPPO	$10.58	2
018	8931808	PLUG	8931808 PLUG (Valid for DUBAI - July 1999) TAPPO	$10.58	2
018	8931808	PLUG	8931808 PLUG (Valid for ARABIA - July 1999) TAPPO	$10.58	2
019	N91122801	WASHER 18,5X24X1,5 IN STOCK	N91122801 WASHER 18,5X24X1,5 (Valid for SOUTH AFRICA - July 1999) RONDELLA IN STOCK	$3.05 MSRP: ~~7.18~~ (57.5% off)	2
019	N91122801	WASHER 18,5X24X1,5 IN STOCK	N91122801 WASHER 18,5X24X1,5 (Valid for ARABIA - July 1999) RONDELLA IN STOCK	$3.05 MSRP: ~~7.18~~ (57.5% off)	2
019	N91122801	WASHER 18,5X24X1,5 IN STOCK	N91122801 WASHER 18,5X24X1,5 (Valid for DUBAI - July 1999) RONDELLA IN STOCK	$3.05 MSRP: ~~7.18~~ (57.5% off)	2
