Front Suspension of Lamborghini Lamborghini Diablo SV (1999)

View All

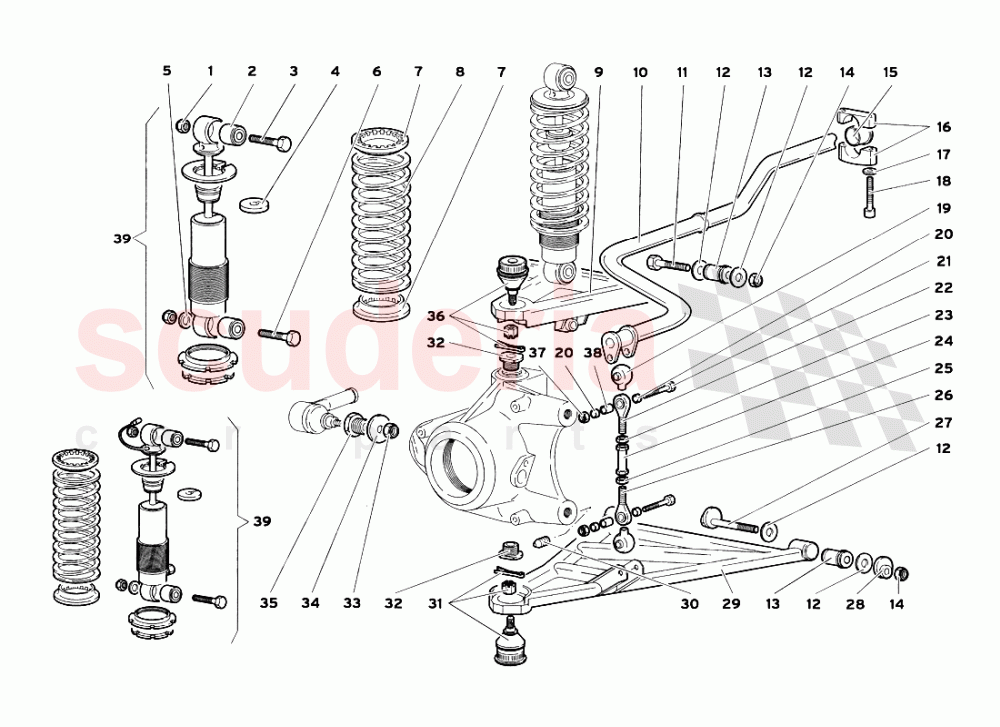

Lamborghini Diablo SV (1999) - Front Suspension

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003355	NUT M12X1,25	WHT003355 NUT M12X1,25 DADO	-	4	Enquire
002	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	-	4	Enquire
003	8101269	SCREW	8101269 SCREW VITE	-	2	Enquire
004	5134315	SPACER	5134315 SPACER DISTANZIALE	-	2	Enquire
005	8401234	WASHER	8401234 WASHER RONDELLA	-	12	Enquire
006	5133229	SCREW	5133229 SCREW VITE	-	2	Enquire
007	410512385	RUBBER RING	410512385 RUBBER RING	-	4	Enquire
008	5133618	SPRING	5133618 SPRING MOLLA	-	2	Enquire
009	5133344	ARM	5133344 ARM BRACCIO SUPERIORE DX	-	1	Enquire
009	5133345	ARM	5133345 ARM BRACCIO SUPERIORE SX	-	1	Enquire
010	5134057	TORSION BAR	5134057 TORSION BAR BARRATORSIONE	-	1	Enquire
011	8101269	SCREW	8101269 SCREW VITE	-	4	Enquire
012	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM DISTANZIALE 1 MM	-	1	Enquire
012	5133488	SHIM	5133488 SHIM DISTANZIALE 1.5 MM	-	1	Enquire
012	410407295D	WASHER	410407295D WASHER DISTANZIALE 3 MM	-	1	Enquire
012	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM DISTANZIALE 2 MM	-	1	Enquire
012	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM DISTANZIALE 2,5 MM	-	1	Enquire
013	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING BOCCOLA ELASTICA	-	8	Enquire
014	WHT003355	NUT M12X1,25	WHT003355 NUT M12X1,25 DADO	-	8	Enquire
015	5238302	BUSHING	5238302 BUSHING BOCCOLA	-	2	Enquire
016	5230258	RETAINER	5230258 RETAINER CAVALLOTTO	-	2	Enquire
017	8410602	WASHER	8410602 WASHER RONDELLA	-	4	Enquire
018	WHT002960	SCREW	WHT002960 SCREW VITE	-	4	Enquire
019	5109714	BOOT	5109714 BOOT CUFFIA	-	4	Enquire
020	5227297	BUSHING	5227297 BUSHING BOCCOLA	-	8	Enquire
021	8100807	SCREW	8100807 SCREW VITE	-	4	Enquire
022	417801931A	BALL JOINT	417801931A BALL JOINT GIUNTO SFERICO	-	2	Enquire
023	8201035	NUT	8201035 NUT DADO	-	2	Enquire
024	5209770	TIE ROD	5209770 TIE ROD TIRANTE	-	2	Enquire
025	8201034	NUT	8201034 NUT DADO	-	2	Enquire
026	5227295	BALL JOINT	5227295 BALL JOINT GIUNTO SFERICO	-	2	Enquire
027	410407127A	BOLT	410407127A BOLT VITE CON ECCENTRICO	-	4	Enquire
028	410407127A	BOLT	410407127A BOLT ECCENTRICO	-	4	Enquire
029	5133039	ARM	5133039 ARM BRACCIO INFERIORE SX	-	1	Enquire
029	5133038	ARM	5133038 ARM BRACCIO INFERIORE DX	-	1	Enquire
030	8700606	SCREW	8700606 SCREW VITE	-	4	Enquire
031	410407361B	COUPLING	410407361B COUPLING TESTA A SNODO	-	2	Enquire
032	410407171C	BUSH	410407171C BUSH BUSSOLA	-	4	Enquire
033	8201003	NUT	8201003 NUT DADO	-	2	Enquire
034	WHT000919	WASHER	WHT000919 WASHER	-	2	Enquire
035	51001030	BUSHING	51001030 BUSHING BUSSOLA	-	2	Enquire
036	410407365	Coupling	410407365 Coupling TESTA A SNODO	-	2	Enquire
037	8200809	NUT	8200809 NUT DADO	-	4	Enquire
038	5227298	BUSHING	5227298 BUSHING BOCCOLA	-	4	Enquire
039	5129802	SHOCK ABSORBER	5129802 SHOCK ABSORBER AMMORTIZZATORE	-	2	Enquire
039	5133241	SHOCK ABSORBER	5133241 SHOCK ABSORBER (LIFTING SYSTEM) AMMORTIZZATORE	-	2	Enquire
