Find Your Part

Steering (Valid for Vehicles With Lifting System) of Lamborghini Lamborghini Diablo SV (1999)

View All

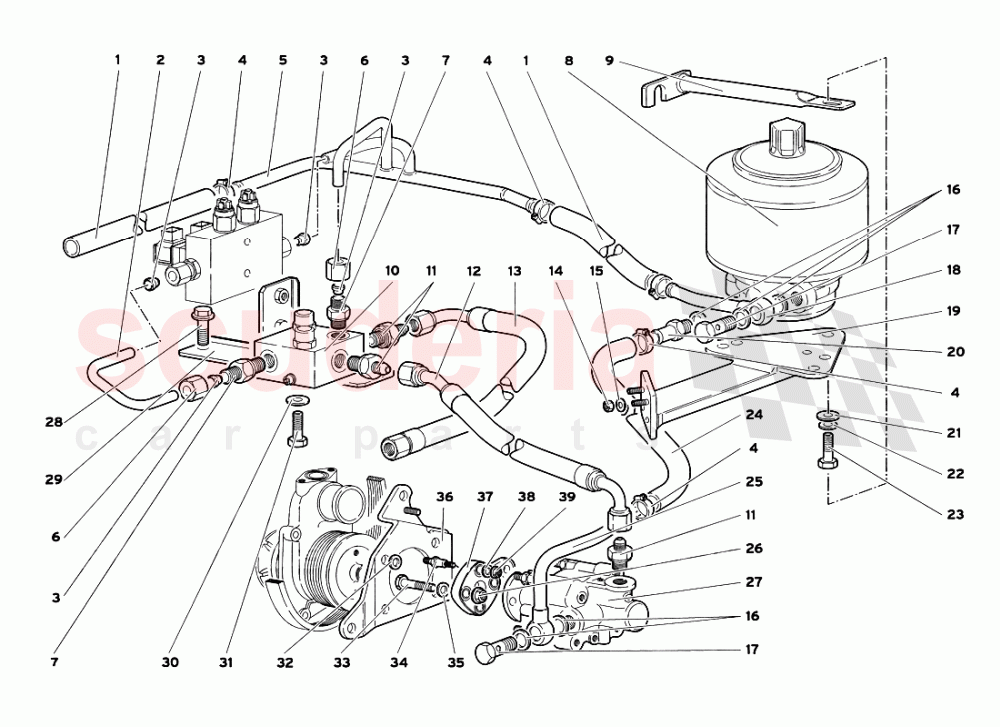

Lamborghini Diablo SV (1999) - Steering (Valid for Vehicles With Lifting System)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4034577	PIPE	4034577 PIPE (Valid for vehicles with lifting system) TUBO	$4.16 MSRP: ~~4.30~~ (3.3% off)	2
002	5134578	RIGID PIPE	5134578 RIGID PIPE (Valid for vehicles with lifting system) TUBAZIONE RIGIDA	$26.42	1
003	4036492	BUSHING	4036492 BUSHING (Valid for vehicles with lifting system) BUSSOLA	-	4	Enquire
004	8831524	STRAP	8831524 STRAP (Valid for vehicles with lifting system) FASCETTA	-	6	Enquire
005	5134584	RIGID PIPE	5134584 RIGID PIPE (Valid for vehicles with lifting system) TUBAZIONE RIGIDA	$150.74	1
006	4036493	NUT	4036493 NUT (Valid for vehicles with lifting system) DADO	$6.45 MSRP: ~~6.70~~ (3.7% off)	2
007	4036490	CONNECTION	4036490 CONNECTION (Valid for vehicles with lifting system) RACCORDO	$21.05 MSRP: ~~21.95~~ (4.1% off)	2
008	4037387	W/W RESERVOIR	4037387 W/W RESERVOIR (Valid for vehicles with lifting system) SERBATOIO	-	1	Enquire
009	4036796	BRACKET	4036796 BRACKET (Valid for vehicles with lifting system) STAFFA	$46.71	1
010	4034570	VALVE	4034570 VALVE (Valid for vehicles with lifting system) VALVOLA	$1,013.65 MSRP: ~~1,060.00~~ (4.4% off)	1
011	4033472	CONNECTION	4033472 CONNECTION (Valid for vehicles with lifting system) RACCORDO	$17.00 MSRP: ~~17.20~~ (1.2% off)	3
012	4034576	PIPE	4034576 PIPE (Valid for vehicles with lifting system) TUBO	$621.60 MSRP: ~~649.00~~ (4.2% off)	1
013	4034582	PIPE	4034582 PIPE (Valid for vehicles with lifting system) TUBO	$663.77 MSRP: ~~692.00~~ (4.1% off)	1
014	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING (Valid for vehicles with lifting system) DADO IN STOCK	$2.04	2
015	WHT002961	WASHER IN STOCK	WHT002961 WASHER (Valid for vehicles with lifting system) RONDELLA IN STOCK	$0.42	2
016	N91122801	WASHER 18,5X24X1,5 IN STOCK	N91122801 WASHER 18,5X24X1,5 (Valid for vehicles with lifting system) RONDELLA IN STOCK	$3.05 MSRP: ~~7.18~~ (57.5% off)	5
017	4009760	SCREW	4009760 SCREW (Valid for vehicles with lifting system) VITE FORATA	-	2	Enquire
018	4036521	CONNECTION	4036521 CONNECTION (Valid for vehicles with lifting system) RACCORDO	$64.76	1
019	4036489	SUPPORT - (Valid for vehicles with lifting system) SUPPORTO	4036489 SUPPORT - (Valid for vehicles with lifting system) SUPPORTO (Valid for vehicles with lifting system) O	$62.04	1
020	4036491	CONNECTION	4036491 CONNECTION (Valid for vehicles with lifting system) RACCORDO	-	1	Enquire
021	8400801	WASHER	8400801 WASHER (Valid for vehicles with lifting system) RONDELLA	$0.68	3
022	8410819	WASHER	8410819 WASHER (Valid for vehicles with lifting system) RONDELLA	$2.29 MSRP: ~~2.40~~ (4.6% off)	3
023	8100812	SCREW	8100812 SCREW (Valid for vehicles with lifting system) VITE	$0.36 MSRP: ~~7.33~~ (95.1% off)	3
024	4033457	PIPE	4033457 PIPE (Valid for vehicles with lifting system) TUBO	$55.22	1
025	4033467	CONNECTION	4033467 CONNECTION (Valid for vehicles with lifting system) RACCORDO	$93.54 MSRP: ~~97.80~~ (4.4% off)	1
026	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING (Valid for vehicles with lifting system) DADO	$2.29 MSRP: ~~7.22~~ (68.3% off)	2
027	4036816	OIL PUMP	4036816 OIL PUMP (Valid for vehicles with lifting system) POMPA OLIO	$4,668.10	1
028	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT (Valid for vehicles with lifting system) VITE	$0.95	1
029	4036494	SUPPORT - (Valid for vehicles with lifting system) SUPPORTO	4036494 SUPPORT - (Valid for vehicles with lifting system) SUPPORTO (Valid for vehicles with lifting system) O	-	1	Enquire
030	WHT002961	WASHER IN STOCK	WHT002961 WASHER (Valid for vehicles with lifting system) RONDELLA IN STOCK	$0.42	2
031	8100613	SCREW	8100613 SCREW (Valid for vehicles with lifting system) VITE	$0.27 MSRP: ~~7.35~~ (96.3% off)	2
032	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 (Valid for vehicles with lifting system) RONDELLA IN STOCK	$0.33 MSRP: ~~7.35~~ (95.5% off)	4
033	4037039	SCREW	4037039 SCREW (Valid for vehicles with lifting system) VITE	$48.23	2
034	1737044	PIN	1737044 PIN (Valid for vehicles with lifting system) PERNO	$186.73	2
035	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 (Valid for vehicles with lifting system) RONDELLA IN STOCK	$0.33 MSRP: ~~7.35~~ (95.5% off)	2
036	4037040	SUPPORT - (Valid for vehicles with lifting system) SUPPORTO	4037040 SUPPORT - (Valid for vehicles with lifting system) SUPPORTO (Valid for vehicles with lifting system) O	$120.36	1
037	1737220	FLEXIBLE JOINT	1737220 FLEXIBLE JOINT (Valid for vehicles with lifting system) GIUNTO ELASTICO	$311.95	1
038	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) (Valid for vehicles with lifting system) RONDELLA	$7.53	2
039	N0211963	NUT IN STOCK	N0211963 NUT (Valid for vehicles with lifting system) DADO IN STOCK	$0.76	2
