Fuel System 1

Lamborghini Diablo SV (1998)

Find Your Part

Lamborghini Diablo SV (1998) - Fuel System 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

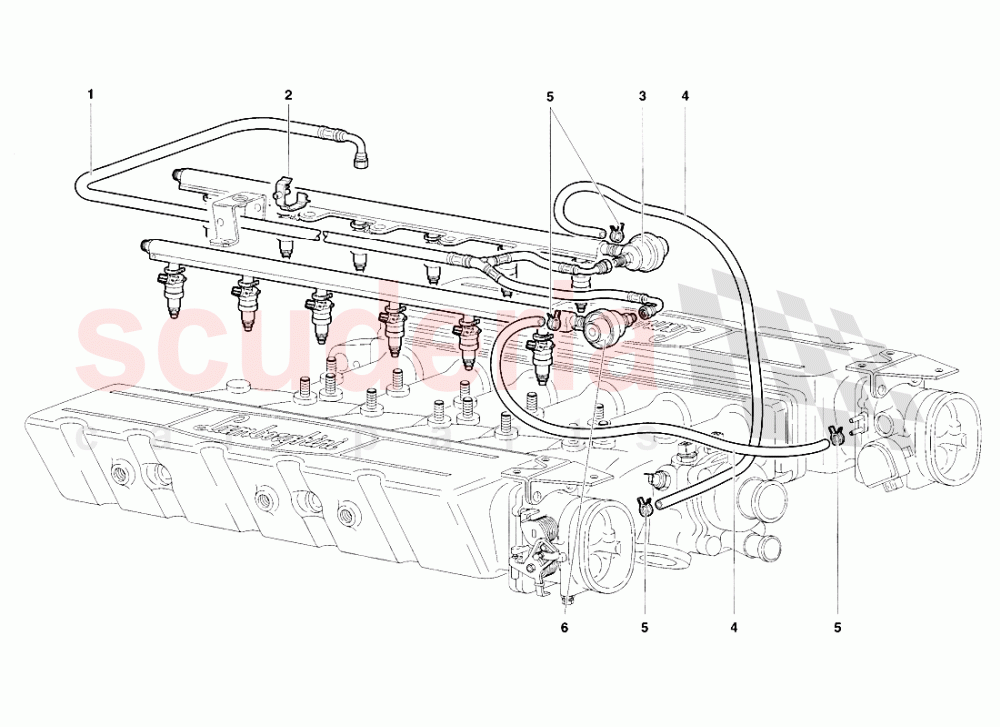

Fuel System 1 of Lamborghini Lamborghini Diablo SV (1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 62001155
PIPE
TUBO 		- 1 Enquire
002 6134202
STRAP
FASCETTA 		- 4 Enquire
003 20001114
DELIVERY PIPE
TUBO COMPLETO SX 		- 1 Enquire
004 13001673
PIPE
TUBO 		- 2 Enquire
005 8830128
CLAMP
FASCETTA 		- 4 Enquire
006 20001115
DELIVERY PIPE
TUBO COMPLETO DX 		- 1 Enquire
