Fuel System 2 of Lamborghini Lamborghini Diablo SV (1998)

View All

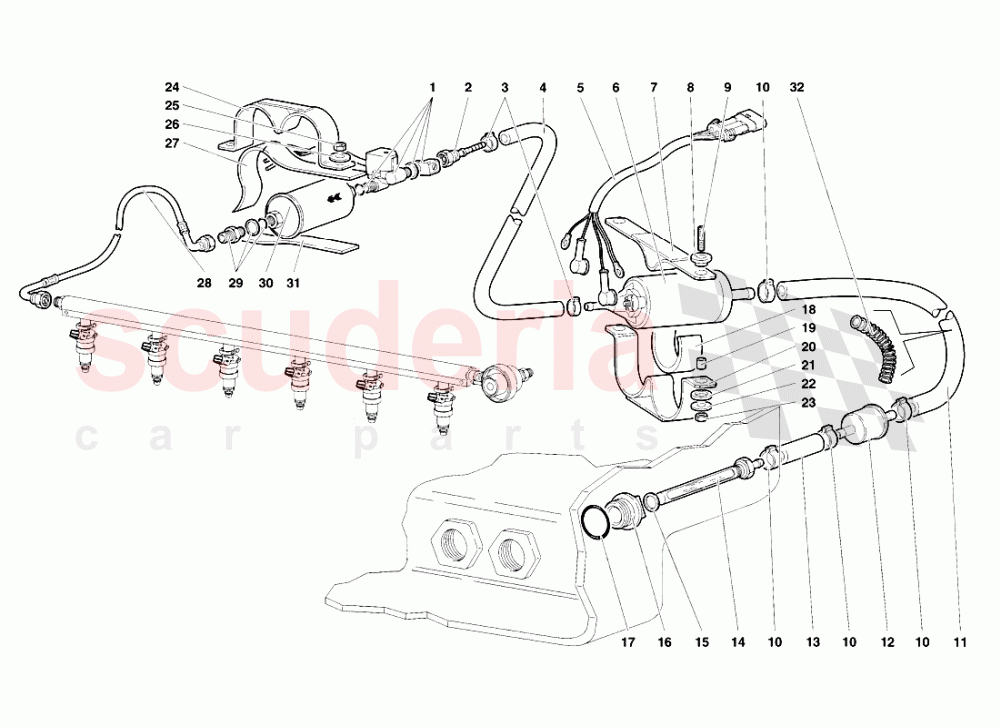

Lamborghini Diablo SV (1998) - Fuel System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	6138349	ELECTRO-VALVE KIT	6138349 ELECTRO-VALVE KIT KIT ELETTROVALVOLA	-	1	Enquire
002	6227630	CONNECTION	6227630 CONNECTION RACCORDO	-	2	Enquire
003	8831528	CLAMP	8831528 CLAMP FASCETTA	-	4	Enquire
004	6230218	PIPE	6230218 PIPE TUBO	-	2	Enquire
005	6130194	ELECT CABLE	6130194 ELECT CABLE CABLAGGIO POMPE BENZINA	-	1	Enquire
006	2024398	FUEL PUMP	2024398 FUEL PUMP POMPA ALIMENTAZIONE	-	2	Enquire
007	6229533	PLATE	6229533 PLATE PIASTRA	-	1	Enquire
008	1701495	RUBBER RING	1701495 RUBBER RING ANELLO COMMA	-	2	Enquire
009	8300803	STUD BOLT	8300803 STUD BOLT PRIGIONIERO	-	2	Enquire
010	400251189B	CLAMP	400251189B CLAMP	-	8	Enquire
011	6230225	PIPE	6230225 PIPE TUBO	-	2	Enquire
012	6229221	OIL FILTER	6229221 OIL FILTER FILTRO	-	2	Enquire
013	6230226	PIPE	6230226 PIPE TUBO	-	2	Enquire
014	62001649	PIPE	62001649 PIPE TUBO PESCANTE	-	2	Enquire
015	WHT003048	WASHER	WHT003048 WASHER RONDELLA	-	2	Enquire
016	62001647	ADAPTER	62001647 ADAPTER ADATTATORE	-	2	Enquire
017	8603703	SEAL	8603703 SEAL ANELLO TENUTA	-	2	Enquire
018	6226900	GASKET	6226900 GASKET GUARNIZIONE	-	2	Enquire
019	1701592	DOWEL	1701592 DOWEL DISTANZIALE	-	2	Enquire
020	6229532	STRAP	6229532 STRAP FASCETTA	-	1	Enquire
021	WHT001189	PLASTIC WASHER	WHT001189 PLASTIC WASHER	-	2	Enquire
022	WHT001942	WASHER	WHT001942 WASHER RONDELLA	-	2	Enquire
023	8200804	NUT M8	8200804 NUT M8 DADO	-	2	Enquire
024	6230214	STRAP	6230214 STRAP FASCETTA	-	1	Enquire
025	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	2	Enquire
026	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	2	Enquire
027	410201349	GASKET	410201349 GASKET GUARNIZIONE	-	1	Enquire
028	6231554	PIPE	6231554 PIPE TUBO PER BANCATA 7-12	-	1	Enquire
028	6231552	PIPE	6231552 PIPE TUBO PER BANCATA 1-6	-	1	Enquire
029	6230564	CONNECTION	6230564 CONNECTION RACCORDO	-	2	Enquire
030	400201511A	Fuel Filter	400201511A Fuel Filter	-	2	Enquire
031	410201196	GASKET	410201196 GASKET GUARNIZIONE	-	1	Enquire
032	62002430	SPRING	62002430 SPRING MOLLA	-	2	Enquire
