Engine Oil Filter and Thermostat (Valid for USA and Canada - November 1998) of Lamborghini Lamborghini Diablo SV (1998)

View All

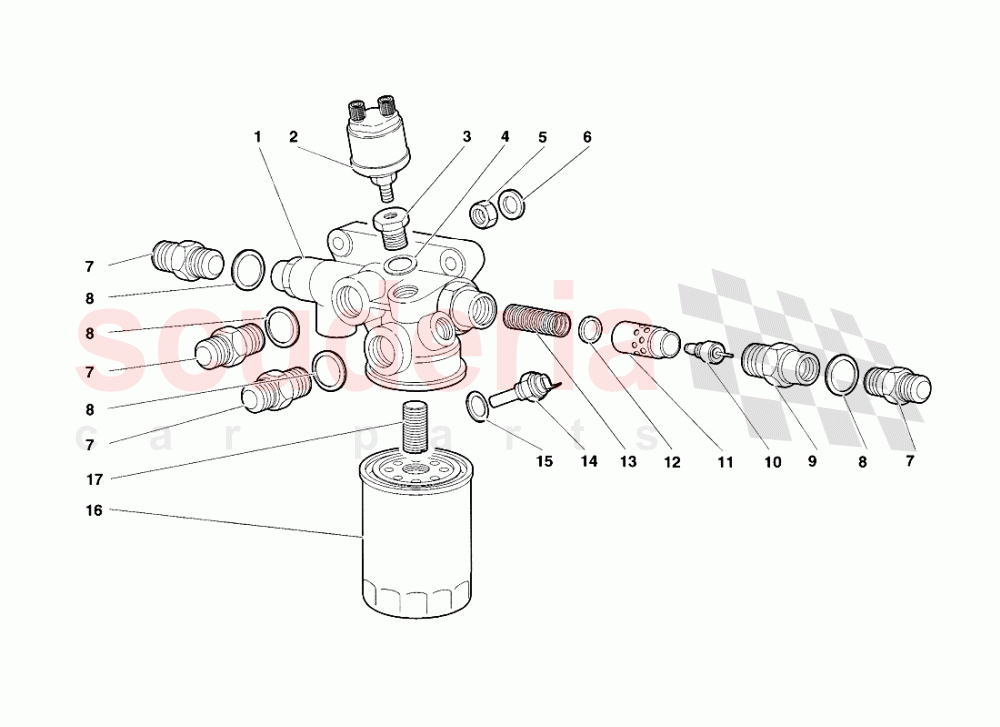

Lamborghini Diablo SV (1998) - Engine Oil Filter and Thermostat (Valid for USA and Canada - November 1998)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1529644	VALVE HOUSING	1529644 VALVE HOUSING (Valid for USA AND CANADA - November 1998) CORPO VALVOLA TERMOSTATICA	-	1	Enquire
002	1530303	OIL PRESSURE SENS.	1530303 OIL PRESSURE SENS. (Valid for USA AND CANADA - November 1998) SENSORE PRESSIONE OLIO	-	1	Enquire
003	1530309	CONNECTION	1530309 CONNECTION (Valid for USA AND CANADA - November 1998) RIDUZIONE	-	1	Enquire
004	8402202	WASHER	8402202 WASHER (Valid for USA AND CANADA - November 1998) RONDELLA	-	1	Enquire
005	8200804	NUT M8	8200804 NUT M8 (Valid for USA AND CANADA - November 1998) DADO	-	3	Enquire
006	8400801	WASHER	8400801 WASHER (Valid for USA AND CANADA - November 1998) RONDELLA	-	3	Enquire
007	1529610	CONNECTION	1529610 CONNECTION (Valid for USA AND CANADA - November 1998) RACCORDO	-	4	Enquire
008	8403007	WASHER	8403007 WASHER (Valid for USA AND CANADA - November 1998) RONDELLA	-	4	Enquire
009	1530040	CONNECTION	1530040 CONNECTION (Valid for USA AND CANADA - November 1998) RACCORDO	-	1	Enquire
010	1536755	TEMPERATURE SENS.	1536755 TEMPERATURE SENS. (Valid for USA AND CANADA - November 1998) SENSORE TEMPERATURA	-	1	Enquire
011	1530037	THERMOSTATIC VALVE	1530037 THERMOSTATIC VALVE (Valid for USA AND CANADA - November 1998) VALVOLA TERMOSTATICA	-	1	Enquire
012	1530761	WASHER	1530761 WASHER (Valid for USA AND CANADA - November 1998) RONDELLA	-	1	Enquire
013	1530038	SPRING	1530038 SPRING (Valid for USA AND CANADA - November 1998) MOLLA VALVOLA TERMOSTATICA	-	1	Enquire
014	1530301	TEMPERATURE SENS.	1530301 TEMPERATURE SENS. (Valid for USA AND CANADA - November 1998) SENSORE TEMPERATURA OLIO	-	1	Enquire
015	8401425	WASHER	8401425 WASHER (Valid for USA AND CANADA - November 1998) RONDELLA	-	1	Enquire
016	1505914	Oil Filter	1505914 Oil Filter (UFI)	-	1	Enquire
017	1523587	THREADED BUSHING	1523587 THREADED BUSHING (Valid for USA AND CANADA - November 1998) BOCCOLA FILETTATA	-	1	Enquire
