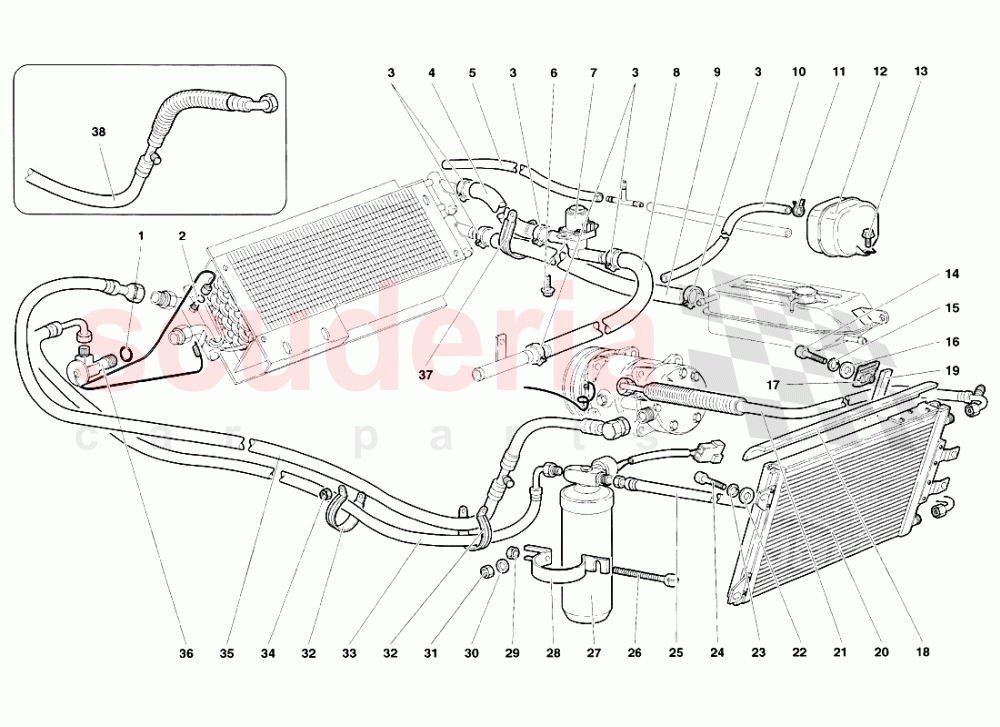

Lamborghini Diablo SV (1998) - Climate Control 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	4535912	SEAL	4535912 SEAL ANELLO TENUTA	$3.12	1
002	4535915	SEAL	4535915 SEAL ANELLO TENUTA	$1.93 MSRP: ~~2.00~~ (3.5% off)	1
003	8832003	CLAMP IN STOCK	8832003 CLAMP FASCETTA IN STOCK	$44.10	6
004	4734346	PIPE	4734346 PIPE TUBO	$201.93	1
005	9414600	PIPE	9414600 PIPE TUBO	$38.84	1
006	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$1.89	2
007	6031658	ELECTRO-VALVE	6031658 ELECTRO-VALVE ELETTROVALVOLA	$203.38	1
008	4734347	PIPE	4734347 PIPE TUBO	$197.59	1
009	1734332	PIPE	1734332 PIPE TUBO	$402.00	1
010	6237078	PIPE	6237078 PIPE TUBO	$18.74 MSRP: ~~18.95~~ (1.1% off)	1
011	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.46	2
012	1323406	VACUUM TANK	1323406 VACUUM TANK SERBATOIO VUOTO	$45.48	1
013	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$1.89	2
014	8700614	SCREW	8700614 SCREW VITE	$0.27	2
015	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.13 MSRP: ~~7.38~~ (98.2% off)	2
016	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	2
017	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT MOLLETTA IN STOCK	$0.94	2
018	4531592	GASKET	4531592 GASKET GUARNIZIONE	$9.32 MSRP: ~~9.45~~ (1.4% off)	2
019	4531591	GASKET	4531591 GASKET GUARNIZIONE	$1.93 MSRP: ~~2.00~~ (3.5% off)	2
020	45001234	A/C CONDENSER	45001234 A/C CONDENSER CONDENSATORE CONDIZIONATORE	$1,501.24 MSRP: ~~1,560.00~~ (3.8% off)	1
021	45001269	PIPE	45001269 PIPE TUBO	$527.32	1
022	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	4
023	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.13 MSRP: ~~7.38~~ (98.2% off)	4
024	8700614	SCREW	8700614 SCREW VITE	$0.27	4
025	45001270	PIPE	45001270 PIPE TUBO	$200.40	1
026	8700542	SCREW	8700542 SCREW VITE	$0.68 MSRP: ~~7.26~~ (90.6% off)	1
027	4535411	FILTER	4535411 FILTER FILTRO DEIDRATORE	$380.71	1
028	4531395	STRAP	4531395 STRAP FASCETTA	$8.96 MSRP: ~~9.30~~ (3.7% off)	1
029	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.76	1
030	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	2
031	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	2
032	8834401	CLAMP	8834401 CLAMP FASCETTA	$12.99 MSRP: ~~13.50~~ (3.8% off)	6
033	4535415	PIPE	4535415 PIPE TUBO	$326.31 MSRP: ~~341.00~~ (4.3% off)	1
034	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	8
035	4535935	PIPE	4535935 PIPE TUBO	$279.17 MSRP: ~~283.00~~ (1.4% off)	1
036	4535412	VALVE	4535412 VALVE VALVOLA Dl ESPANSIONE	$363.55	1
037	8834401	CLAMP	8834401 CLAMP FASCETTA	$12.99 MSRP: ~~13.50~~ (3.8% off)	2
038	4535935	PIPE	4535935 PIPE (Valid for USA - November 1998) TUBO	$279.17 MSRP: ~~283.00~~ (1.4% off)	1
038	4535935	PIPE	4535935 PIPE (Valid for CANADA - November 1998) TUBO	$279.17 MSRP: ~~283.00~~ (1.4% off)	1
