Find Your Part

View All

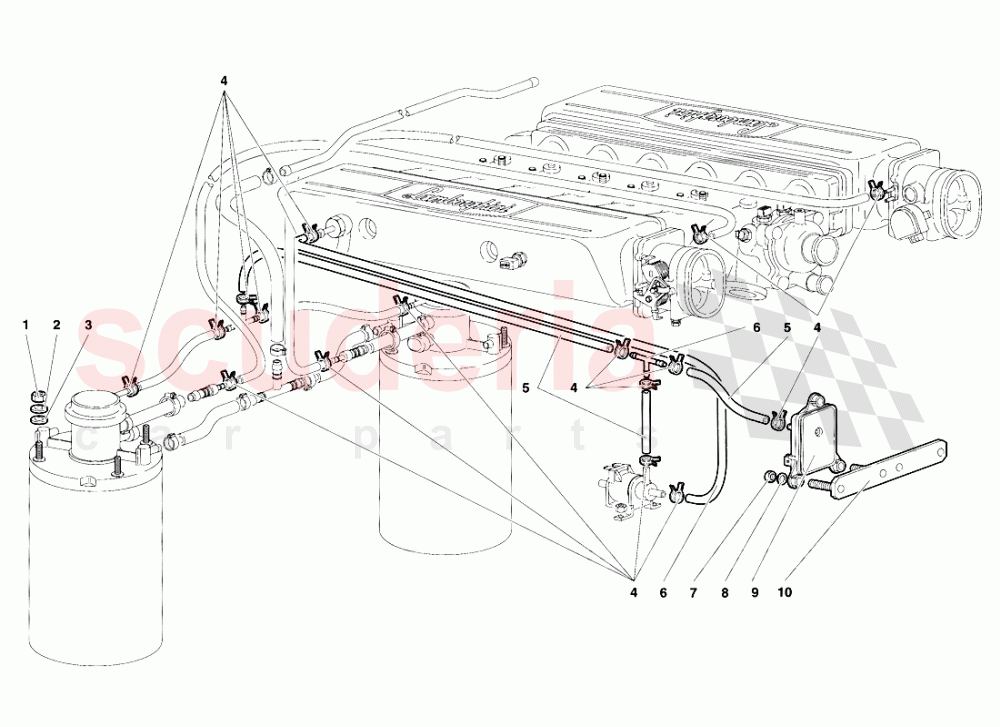

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8200610	NUT	8200610 NUT DADO	$2.56	4
002	8410602	WASHER	8410602 WASHER RONDELLA	$44.87	4
003	N01152427	WASHER	N01152427 WASHER RONDELLA	$0.28	4
004	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.46	16
005	6237988	PIPE	6237988 PIPE TUBO	$26.12	3
006	7014169	T UNION	7014169 T UNION RACCORDOATREVIE	$24.62 MSRP: ~~25.65~~ (4% off)	1
007	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	$2.04	3
008	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	3
009	7M919529A	PRESSURE SENSOR	7M919529A PRESSURE SENSOR SENSORE PRESSIONE ASSOLUTA	$439.51	1
010	6237804	SUPPORT - SUPPORTO	6237804 SUPPORT - SUPPORTO O	$35.75	1
