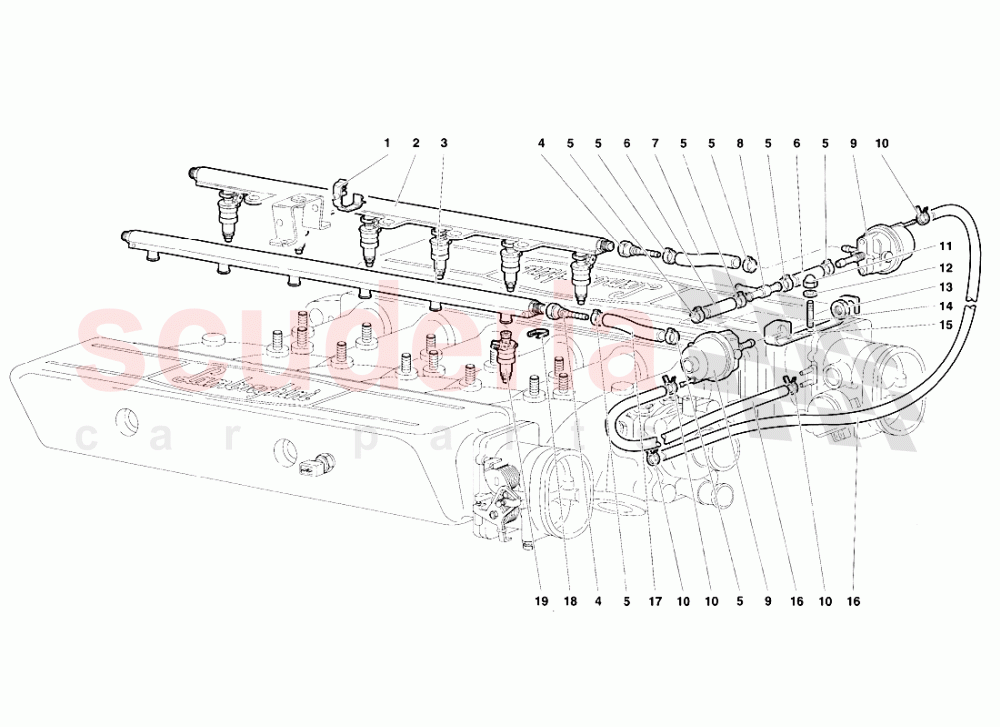

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	6134202	STRAP	6134202 STRAP FASCETTA	$1.11 MSRP: ~~8.40~~ (86.8% off)	4
002	2032514	INJECTOR	2032514 INJECTOR TUBAZIONE E INIETTORI	$3,238.21	2
003	2027643	INJECTOR ASSEMBLY	2027643 INJECTOR ASSEMBLY TUBAZIONE RIGIDA	$4,466.50	2
004	6227630	CONNECTION	6227630 CONNECTION RACCORDO	$14.99	2
005	8831528	CLAMP	8831528 CLAMP FASCETTA	$9.27	8
006	2033782	PIPE	2033782 PIPE TUBO	$30.09	2
007	2033781	PIPE	2033781 PIPE TUBO	$171.84	1
008	2033783	CONNECTION	2033783 CONNECTION RACCORDO A TRE VIE	$26.94	1
009	2027648	PRESSURE REGULATOR IN STOCK	2027648 PRESSURE REGULATOR REGOLATORE PRESSIONE IN STOCK	$686.90	2
010	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.46	4
011	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	1
012	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
013	8201223	NUT	8201223 NUT DADO	-	2	Enquire
014	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.96 MSRP: ~~5.10~~ (2.7% off)	1
015	2033784	BRACKET	2033784 BRACKET STAFFA	$151.28	1
016	1532659	PIPE	1532659 PIPE TUBO	$19.48	2
017	2033779	PIPE	2033779 PIPE TUBO	$129.04	1
018	2027642	CLIP	2027642 CLIP MOLLETTA	-	12	Enquire
019	7M906031	WE.IW031 430003 INJECTOR	7M906031 WE.IW031 430003 INJECTOR INIETTORE	$1,268.84	12
