Exhaust System 3 of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

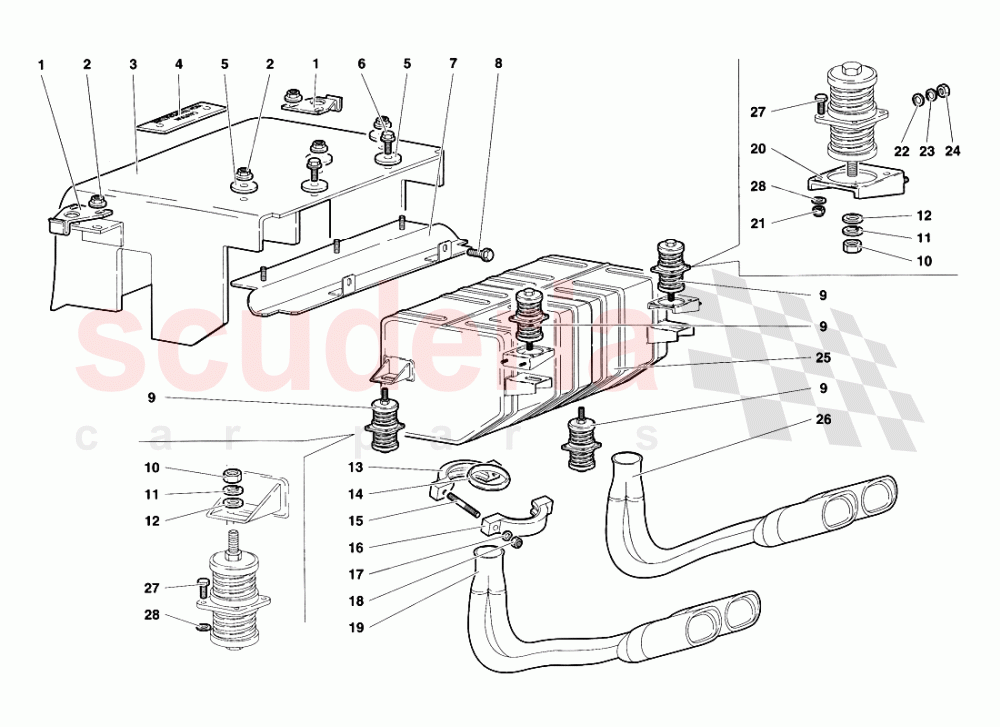

Lamborghini Diablo SV (1995-1997) - Exhaust System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9411613	SUPPORT - SUPPORTO	9411613 SUPPORT - SUPPORTO O	$35.87	2
002	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	$0.21	7
003	4433479	SHIELD	4433479 SHIELD PARATIA ANTICALORE	$3,232.00	1
005	9444151	WASHER	9444151 WASHER RONDELLA	-	5	Enquire
006	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	$0.95	2
007	4437412	SHIELD	4437412 SHIELD PARATIA ANTICALORE	-	1	Enquire
008	8700449	SCREW	8700449 SCREW VITE	$2.99 MSRP: ~~7.37~~ (59.4% off)	2
009	4432031	SHOCK ABSORBER	4432031 SHOCK ABSORBER AMMORTIZZATORE	-	4	Enquire
010	N10155210	NUT	N10155210 NUT DADO	$1.96 MSRP: ~~7.24~~ (72.9% off)	4
011	8451005	WASHER	8451005 WASHER RONDELLA	$0.16 MSRP: ~~7.37~~ (97.8% off)	4
012	8401006	WASHER	8401006 WASHER RONDELLA	$0.61 MSRP: ~~7.29~~ (91.6% off)	4
013	4425084	HALF RING	4425084 HALF RING SEMIANELLO FILETTATO	$503.73	2
014	4424070	BI-CONE RING	4424070 BI-CONE RING ANELLO DOPPIO CONO	$167.21	2
015	N0444416	STUD BOLT	N0444416 STUD BOLT PRIGIONIERO	$3.45 MSRP: ~~7.04~~ (51% off)	4
016	4425084	HALF RING	4425084 HALF RING SEMIANELLO	$503.73	2
017	8440806	WASHER	8440806 WASHER use : WHT001185	$0.27 MSRP: ~~7.36~~ (96.3% off)	4
018	N02214621	HEXAGON NUT M8 SELF-LOCKING	N02214621 HEXAGON NUT M8 SELF-LOCKING DADO	$90.94	4
019	44003943	RIGHT TERMINAL	44003943 RIGHT TERMINAL	$1,842.41 MSRP: ~~1,920.00~~ (4% off)	1
020	4437428	SUPPORT - SUPPORTO	4437428 SUPPORT - SUPPORTO O	$98.00	2
021	N0211963	NUT	N0211963 NUT DADO	$0.76	16
022	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	4
023	N0152785	WASHER	N0152785 WASHER RONDELLA	$0.40	4
024	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	$1.89	4
025	4430979	SILENCER/MUFFLER	4430979 SILENCER/MUFFLER SILENZIATORE	$6,966.48 MSRP: ~~7,290.00~~ (4.4% off)	1
026	44003942	RIGHT TERMINAL	44003942 RIGHT TERMINAL TERMINALE DX	$1,842.41 MSRP: ~~1,920.00~~ (4% off)	1
027	N01020717	SCREW M5X12	N01020717 SCREW M5X12 VITE	$0.67 MSRP: ~~7.31~~ (90.8% off)	16
028	8410508	WASHER	8410508 WASHER RONDELLA	$0.04 MSRP: ~~7.40~~ (99.5% off)	16
