Seats and Safety Belts of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

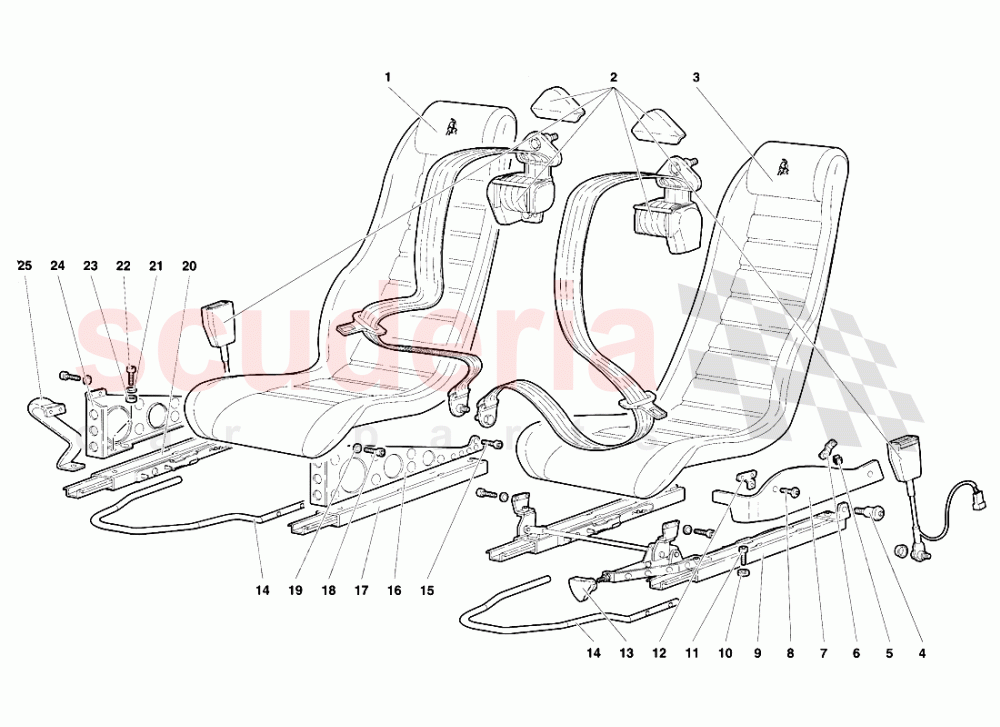

Lamborghini Diablo SE30 (1993-1995) - Seats and Safety Belts

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9435014	RIGHT SEAT	9435014 RIGHT SEAT SEDILE DX	-	1	Enquire
002	9490300	SEATS BELTS	9490300 SEATS BELTS CINTURE Dl SICUREZZA	-	1	Enquire
003	9435015	LEFT SEAT	9435015 LEFT SEAT SEDILE SX	-	1	Enquire
004	9435232	PIN	9435232 PIN PERNO X SNODO SEDILE	-	2	Enquire
005	8220503	CLIP	8220503 CLIP MOLLETTA	-	2	Enquire
006	9435227	BRACKET	9435227 BRACKET STAFFA	-	1	Enquire
007	9435313	LEFT SIDE PANEL	9435313 LEFT SIDE PANEL PANNELLO LATERALE SX	-	1	Enquire
008	8700543	SCREW	8700543 SCREW VITE	-	2	Enquire
009	9435003	LEFT SEAT GUIDE	9435003 LEFT SEAT GUIDE GUIDA SEDILE SX	-	1	Enquire
010	9435257	SPACER	9435257 SPACER RONDELLA	-	8	Enquire
011	8700847	SCREW	8700847 SCREW VITE	-	8	Enquire
012	9435229	LEFT BRACKET	9435229 LEFT BRACKET STAFFA	-	1	Enquire
013	7035114	KNOB	7035114 KNOB POMELLO	-	1	Enquire
014	9435207	LEVER	9435207 LEVER LEVA SGANCIO GUIDA SEDILE	-	2	Enquire
015	8700840	SCREW	8700840 SCREW VITE	-	2	Enquire
016	9435248	DRILLED PLATE	9435248 DRILLED PLATE PIASTRA FORATA	-	1	Enquire
017	9435201	LEFT SEAT GUIDE	9435201 LEFT SEAT GUIDE GUIDA SEDILE SX	-	1	Enquire
018	8700617	SCREW	8700617 SCREW VITE	-	8	Enquire
019	8410601	WASHER	8410601 WASHER RONDELLA	-	8	Enquire
020	410881220	RH GUIDE	410881220 RH GUIDE replaces 009435200	-	1	Enquire
020	9435200	LEFT SEAT GUIDE	9435200 LEFT SEAT GUIDE not as spare part - use part number: 410881220	-	1	Enquire
021	8400801	WASHER	8400801 WASHER RONDELLA	-	4	Enquire
022	8700847	SCREW	8700847 SCREW VITE	-	4	Enquire
023	8200809	NUT	8200809 NUT DADO	-	4	Enquire
024	9435247	DRILLED PLATE	9435247 DRILLED PLATE PIASTRA FORATA	-	1	Enquire
025	9435106	PASS. HOLD HANDLE	9435106 PASS. HOLD HANDLE MANIGLIAAPPIGLIO PASSEGGERO	-	1	Enquire
