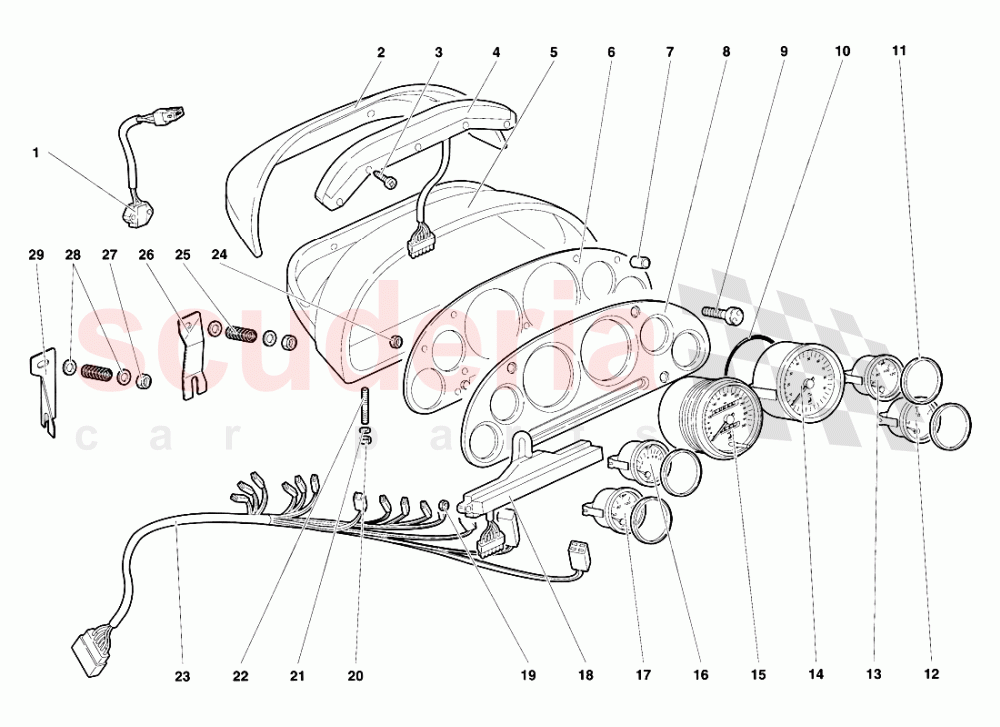

Lamborghini Diablo SE30 (1993-1995) - Dashboard Instruments

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4526662	TEMPERATURE SENS.	4526662 TEMPERATURE SENS. SENSORE TEMPERATURA ESTERNA	-	1	Enquire
002	9414427	REAR DASHBOARD P.	9414427 REAR DASHBOARD P. CRUSCOTTO POST.	-	1	Enquire
003	8700449	SCREW	8700449 SCREW VITE	-	5	Enquire
004	6033214	WARNING LIGHTS	6033214 WARNING LIGHTS GRUPPOSPIE	-	1	Enquire
005	9414437	FRONT DASHBOARD P.	9414437 FRONT DASHBOARD P. CRUSCOTTO ANT.	-	1	Enquire
006	9414428	INSTRUMENT PANEL	9414428 INSTRUMENT PANEL PLANCIA PORTASTRUMEN	-	1	Enquire
007	9414407	SPACER	9414407 SPACER DISTANZIALE	-	5	Enquire
008	9414429	PLATE	9414429 PLATE PIASTRA COPRISTRUMENTI	-	1	Enquire
009	9414420	SCREW	9414420 SCREW VITE	-	4	Enquire
010	8609802	SEAL	8609802 SEAL ANELLO TENUTA	-	1	Enquire
011	6030886	SPACER	6030886 SPACER DISTANZIALE	-	4	Enquire
012	6034966	FUEL LEVEL GAUGE	6034966 FUEL LEVEL GAUGE INDICATORE LIVELLO CARBURANTE	-	1	Enquire
013	6034969	WATER TEMP. GAUGE	6034969 WATER TEMP. GAUGE INDICATORE TEMPERATURA ACQUA	-	1	Enquire
014	6034965	REVOLUTION COUNT.	6034965 REVOLUTION COUNT. CONTAGIRI	-	1	Enquire
015	6034964	SPEEDOMETER - KM	6034964 SPEEDOMETER - KM CONTACHILOMETRI	-	1	Enquire
016	6034967	OIL PRESSURE GAUGE	6034967 OIL PRESSURE GAUGE INDICATORE PRESSIONE OLIO	-	1	Enquire
017	6034968	OIL TEMP. GAUGE	6034968 OIL TEMP. GAUGE INDICATORE TEMPERATURA OLIO	-	1	Enquire
018	6033213	WARNING LIGHTS	6033213 WARNING LIGHTS GRUPPOSPIE	-	1	Enquire
019	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT DADO	-	2	Enquire
020	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	2	Enquire
021	WHT003093	Washer	WHT003093 Washer RONDELLA	-	2	Enquire
022	8300611	STUD	8300611 STUD PRIGIONIERO	-	2	Enquire
023	6133198	ELECT CABLE	6133198 ELECT CABLE CAVO ELETTRICO	-	1	Enquire
024	N0211963	NUT	N0211963 NUT DADO	-	5	Enquire
025	9414416	SPRING	9414416 SPRING MOLLA	-	2	Enquire
026	9414414	BRACKET	9414414 BRACKET STAFFA DX	-	1	Enquire
027	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	4	Enquire
028	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	4	Enquire
029	9414415	BRACKET	9414415 BRACKET STAFFA SX	-	1	Enquire
