Passenger Compartment Trims 1 of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

Lamborghini Diablo VT Roadster (1998-2000) - Passenger Compartment Trims 1

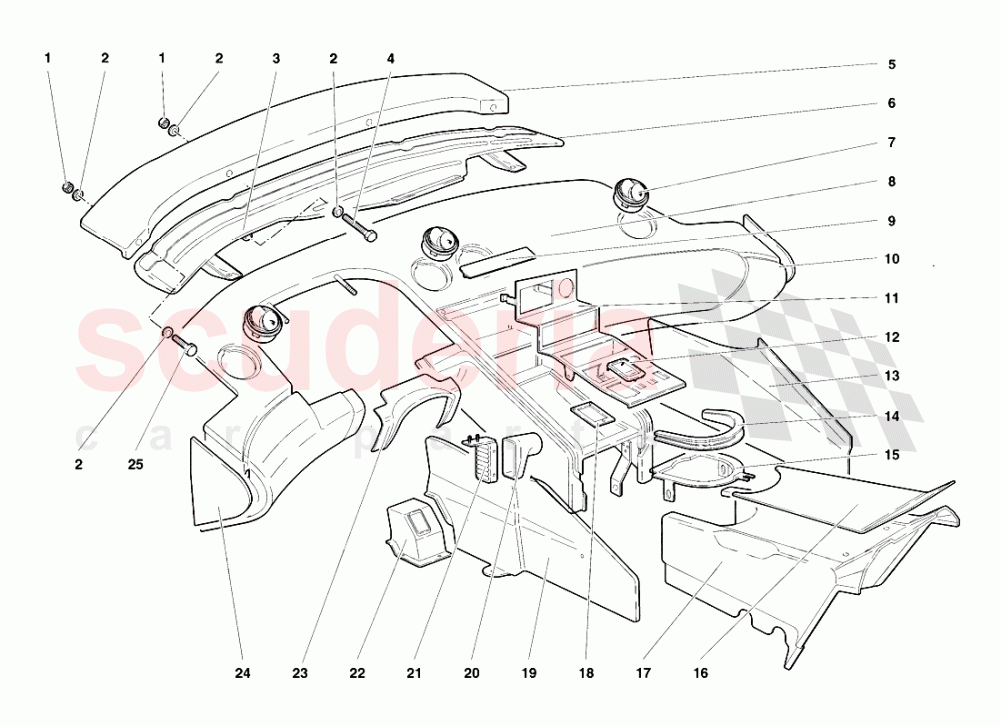

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	4	Enquire
002	8400606	WASHER	8400606 WASHER RONDELLA	-	8	Enquire
003	9414129	SPACER	9414129 SPACER DISTANZIALE	-	2	Enquire
004	8100636	SCREW	8100636 SCREW VITE	-	2	Enquire
005	9914302	PANEL	9914302 PANEL PANNELLO SOTTO PARABREZZA	-	1	Enquire
006	9414019	CONVEYOR	9414019 CONVEYOR CONVOGLIATORE	-	1	Enquire
007	9914500	AIR VENT	9914500 AIR VENT BOCCHETTA ARIA	-	4	Enquire
008	9914100	DASHBOARD PANEL	9914100 DASHBOARD PANEL CRUSCOTTO	-	1	Enquire
009	9914305	PLATE	9914305 PLATE LAMIERINO	-	1	Enquire
010	9914303	RIGHT SIDE PANEL	9914303 RIGHT SIDE PANEL FIANCHETTO DX	-	1	Enquire
011	9914113	TUNNEL PANEL	9914113 TUNNEL PANEL PLANCIA TUNNEL	-	1	Enquire
012	9414112	FRAME	9414112 FRAME CORNICE	-	1	Enquire
013	9414303	PANEL	9414303 PANEL PANNELLO DX	-	1	Enquire
014	9958606	FRAME	9958606 FRAME CORNICE	-	1	Enquire
015	9958607	PLATE	9958607 PLATE PIASTRA	-	1	Enquire
016	9958605	METAL COVERING	9958605 METAL COVERING RIVESTIMENTO METALLICO	-	1	Enquire
017	9958601	TUNNEL COVERING	9958601 TUNNEL COVERING RIVESTIMENTO TUNNEL	-	1	Enquire
018	9914112	PLATE	9914112 PLATE PIASTRA	-	1	Enquire
019	9414336	PANEL	9414336 PANEL PANNELLO SX	-	1	Enquire
020	9458356	UNION	9458356 UNION BOCCHETTA ARIA	-	1	Enquire
021	9958402	GRILLE	9958402 GRILLE GRIGLIA	-	1	Enquire
022	9458364	CASE	9458364 CASE SCATOLA	-	1	Enquire
023	9414321	COVERING	9414321 COVERING RIVESTIMENTO	-	1	Enquire
024	9914304	LEFT SIDE PANEL	9914304 LEFT SIDE PANEL FIANCHETTO SX	-	1	Enquire
025	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	2	Enquire
