Lamborghini Diablo VT Roadster (1998-2000) - Dashboard Instruments

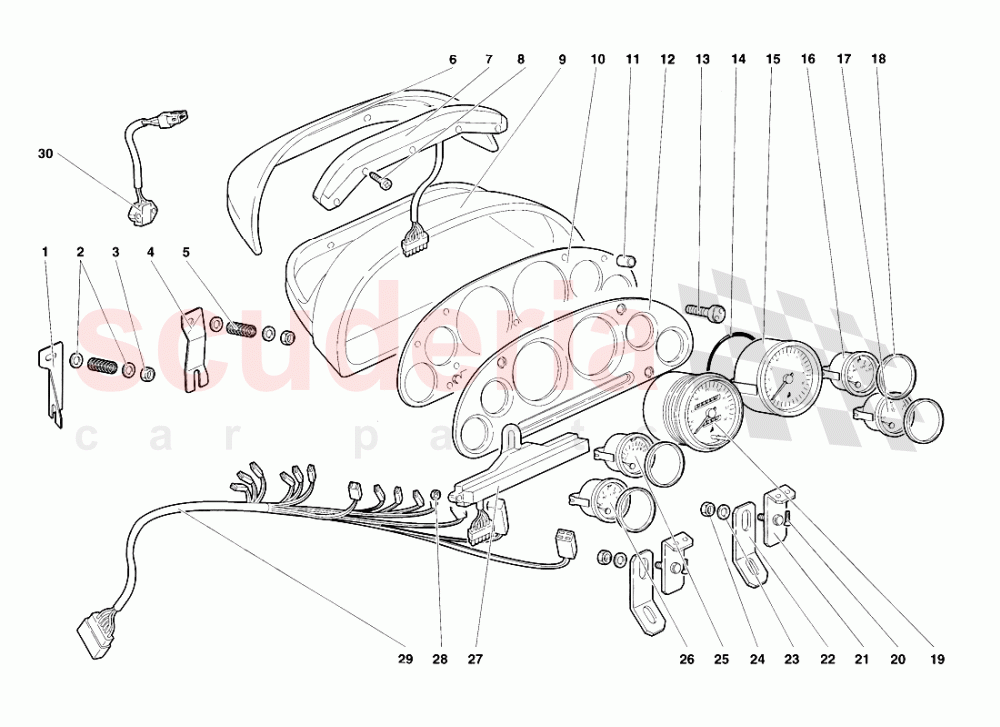

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9414422	LEFT BRACKET	9414422 LEFT BRACKET (Valid for U.K 1998) STAFFA SX	-	1	Enquire
001	9414415	BRACKET	9414415 BRACKET STAFFA SX	-	1	Enquire
002	8400606	WASHER	8400606 WASHER RONDELLA	-	4	Enquire
003	N01100637	NUT M6	N01100637 NUT M6 DADO	-	4	Enquire
004	9414414	BRACKET	9414414 BRACKET STAFFA DX	-	1	Enquire
004	9414435	RIGHT BRACKET	9414435 RIGHT BRACKET (Valid for U.K 1998) STAFFA DX	-	1	Enquire
005	9414416	SPRING	9414416 SPRING MOLLA	-	2	Enquire
006	9414427	REAR DASHBOARD P.	9414427 REAR DASHBOARD P. CRUSCOTTO POST.	-	1	Enquire
007	6033214	WARNING LIGHTS	6033214 WARNING LIGHTS GRUPPOSPIE	-	1	Enquire
008	8700449	SCREW	8700449 SCREW VITE	-	5	Enquire
009	9414437	FRONT DASHBOARD P.	9414437 FRONT DASHBOARD P. CRUSCOTTO ANT.	-	1	Enquire
010	9414428	INSTRUMENT PANEL	9414428 INSTRUMENT PANEL PLANCIA PORTASTRUMENTI	-	1	Enquire
011	9414407	SPACER	9414407 SPACER DISTANZIALE	-	5	Enquire
012	9414429	PLATE	9414429 PLATE PIASTRA	-	1	Enquire
013	9414420	SCREW	9414420 SCREW VITE	-	4	Enquire
014	8609802	SEAL	8609802 SEAL ANELLO GOMMA	-	1	Enquire
015	6029656	REVOLUTION COUNT.	6029656 REVOLUTION COUNT. CONTAGIRI	-	1	Enquire
016	6029660	WATER TEMP. GAUGE	6029660 WATER TEMP. GAUGE INDICATORE TEMPERATURA ACQUA	-	1	Enquire
017	6029657	FUEL LEVEL GAUGE	6029657 FUEL LEVEL GAUGE INDICATORE LIVELLO CARBURANTE	-	1	Enquire
018	6030886	SPACER	6030886 SPACER DISTANZIALE	-	4	Enquire
019	6029655	SPEEDOMETER-KM	6029655 SPEEDOMETER-KM CONTACHILOMETRI	-	1	Enquire
019	6030773	SPEEDOMETER-MILES	6030773 SPEEDOMETER-MILES (Valid for U.K & USA model)	-	1	Enquire
020	8700457	SCREW	8700457 SCREW VITE	-	4	Enquire
021	9414433	BRACKET	9414433 BRACKET STAFFA	-	2	Enquire
022	9414432	BRACKET	9414432 BRACKET STAFFA	-	2	Enquire
023	8400509	WASHER	8400509 WASHER RONDELLA	-	2	Enquire
024	8200501	NUT	8200501 NUT DADO	-	2	Enquire
025	6029658	OIL PRESSURE GAUGE	6029658 OIL PRESSURE GAUGE INDICATORE PRESSIONE OLIO	-	1	Enquire
026	6029659	OIL TEMPERATURE GA.	6029659 OIL TEMPERATURE GA. INDICATORE TEMPERATURA OLIO	-	1	Enquire
027	6033213	WARNING LIGHTS	6033213 WARNING LIGHTS GRUPPOSPIE	-	1	Enquire
028	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT DADO	-	2	Enquire
029	6133198	ELECT CABLE	6133198 ELECT CABLE CABLAGGIO CRUSCOTTO	-	1	Enquire
030	4526662	TEMPERATURE SENS.	4526662 TEMPERATURE SENS. SENSORE TEMPERATURA ESTERNA	-	1	Enquire
