Exhaust System 4

Lamborghini Diablo VT Roadster (1998-2000)

Find Your Part

Lamborghini Diablo VT Roadster (1998-2000) - Exhaust System 4

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

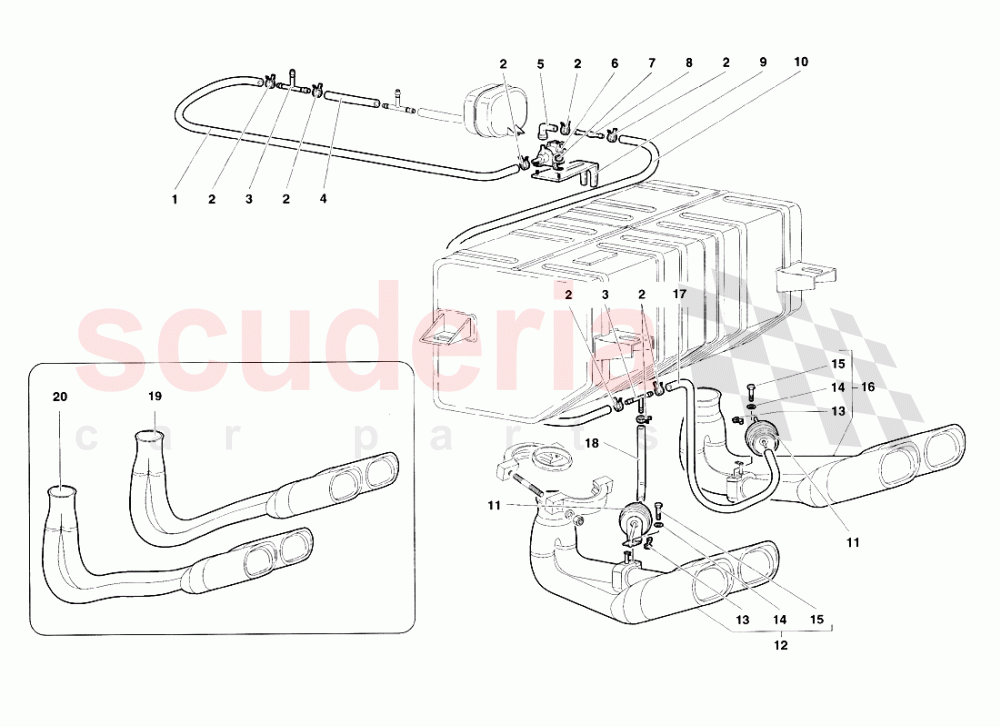

Exhaust System 4 of Lamborghini Lamborghini Diablo VT Roadster (1998-2000) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4437810
FLEX. HOSE
TUBO FLESSIBILE 		- 1 Enquire
002 8830128
CLAMP
FASCETTA 		- 8 Enquire
003 7014169
T UNION
RACCORDOTREVIE 		- 2 Enquire
004 4437808
FLEX. HOSE
TUBO FLESSIBILE 		- 1 Enquire
005 7L131756
CONNECTOR
RACCORDO 		- 1 Enquire
006 77906283
SOLENOID VALVE
ELETTROVALVOLA 		- 1 Enquire
007 WHT002959
CLAMPING NUT
DADO 		- 2 Enquire
008 1329319
ADAPTER
RACCORDO 		- 1 Enquire
009 1336194
SUPPORT - SUPPORTO
O 		- 1 Enquire
010 4437810
FLEX. HOSE
TUBO FLESSIBILE 		- 1 Enquire
011 1336037
CONTROL
ATTUATORE 		- 2 Enquire
012 4437812
LEFT TERMINAL
TERMINALESX 		- 1 Enquire
013 1337177
CLIP
FERMAGLIO 		- 2 Enquire
014 8400606
WASHER
RONDELLA 		- 2 Enquire
015 8100616
Bolt
VITE 		- 2 Enquire
016 4437813
RIGHT TERMINAL
TERMINALE DX 		- 1 Enquire
017 4437811
FLEX. HOSE
TUBO FLESSIBILE 		- 1 Enquire
018 4438267
FLEX. HOSE
TUBO FLESSIBILE 		- 1 Enquire
019 44003942
RIGHT TERMINAL
(Valid for ARABIA 1998) TERMINALE DX 		- 1 Enquire
019 44003942
RIGHT TERMINAL
(Valid for U.S.A 1998) TERMINALE DX 		- 1 Enquire
019 44003942
RIGHT TERMINAL
(Valid for CANADA 1998) TERMINALE DX 		- 1 Enquire
020 44003943
RIGHT TERMINAL
(Valid for ARABIA 1998) 		- 1 Enquire
020 44003943
RIGHT TERMINAL
(Valid for U.S.A) 		- 1 Enquire
020 44003943
RIGHT TERMINAL
(Valid for CANADA 1998) 		- 1 Enquire
