Exhaust System 1 of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

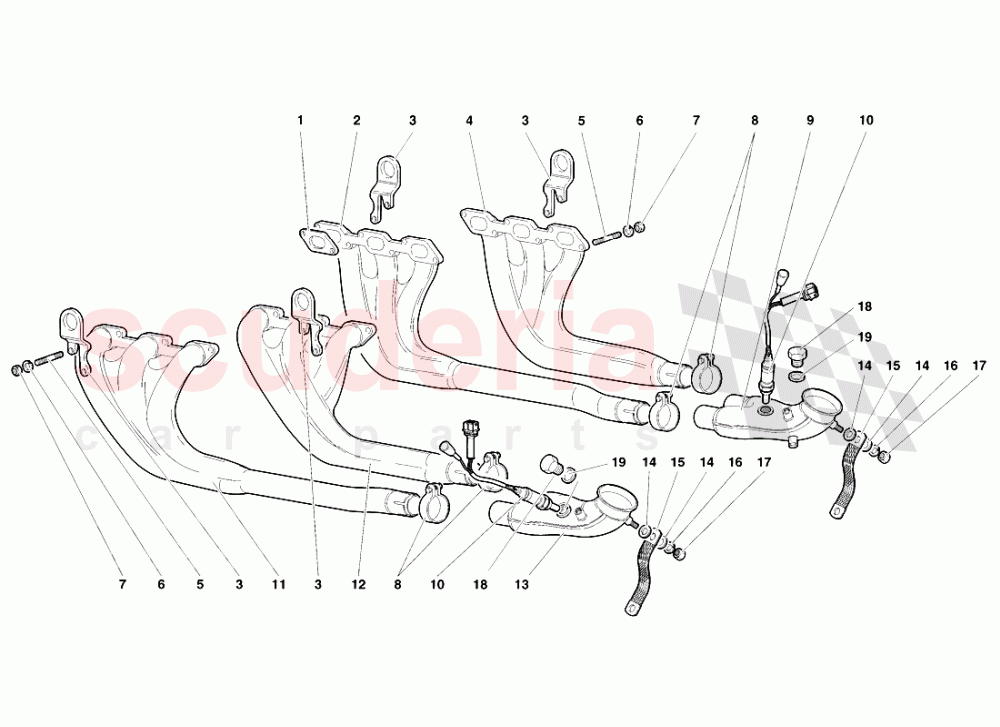

Lamborghini Diablo VT Roadster (1998-2000) - Exhaust System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7M253039	GASKET	7M253039 GASKET Alternative use : 111532	-	12	Enquire
002	4427530	EXHAUST MANIFOLD	4427530 EXHAUST MANIFOLD COLLETTORE ANT. DX	-	1	Enquire
003	4432438	HOOK	4432438 HOOK GANCIO	-	4	Enquire
004	4427529	EXHAUST MANIFOLD	4427529 EXHAUST MANIFOLD COLLETTORE POST. DX	-	1	Enquire
005	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	-	24	Enquire
006	8410817	WASHER	8410817 WASHER RONDELLA	-	24	Enquire
007	N90522002	NUT 8X1,25	N90522002 NUT 8X1,25 DADO	-	24	Enquire
008	8835002	STRAP	8835002 STRAP FASCETTA	-	4	Enquire
009	44001238	EXHAUST MANIFOLD	44001238 EXHAUST MANIFOLD COLLETTORE A TRE VIE DX	-	1	Enquire
010	R1470226	OXIGEN SENSOR	R1470226 OXIGEN SENSOR	-	2	Enquire
011	4427528	EXHAUST MANIFOLD	4427528 EXHAUST MANIFOLD COLLETTORE ANT. SX	-	1	Enquire
012	4427527	EXHAUST MANIFOLD	4427527 EXHAUST MANIFOLD COLLETTORE POST. SX	-	1	Enquire
013	44001236	EXHAUST MANIFOLD	44001236 EXHAUST MANIFOLD COLLETTORE A TRE VIE SX	-	1	Enquire
014	N0122094	WASHER	N0122094 WASHER RONDELLA	-	4	Enquire
015	1604328	GROUND CABLE	1604328 GROUND CABLE CAVO MASSA	-	2	Enquire
016	N0152785	WASHER	N0152785 WASHER RONDELLA	-	2	Enquire
017	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	2	Enquire
018	4431147	PLUG	4431147 PLUG (Valid for DUBA 1998) TAPPO	-	2	Enquire
018	4431147	PLUG	4431147 PLUG (Valid for ARABIA 1998) TAPPO	-	2	Enquire
018	4431147	PLUG	4431147 PLUG (Valid for SOUTH AFRICA.1998) TAPPO	-	2	Enquire
019	N91122801	WASHER 18,5X24X1,5	N91122801 WASHER 18,5X24X1,5 (Valid for DUBAI 1998) RONDELLA	-	2	Enquire
019	N91122801	WASHER 18,5X24X1,5	N91122801 WASHER 18,5X24X1,5 (Valid for SOUTH AFRICA.1998) RONDELLA	-	2	Enquire
019	N91122801	WASHER 18,5X24X1,5	N91122801 WASHER 18,5X24X1,5 (Valid for ARABIA 1998) RONDELLA	-	2	Enquire
