Electrical System 4 of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

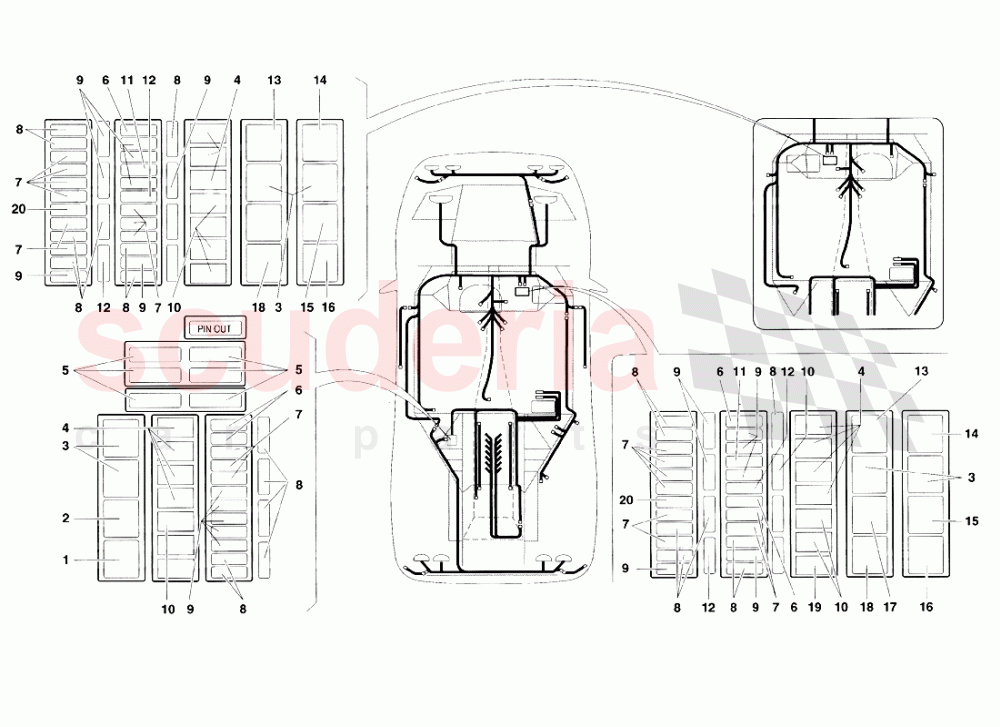

Lamborghini Diablo VT Roadster (1998-2000) - Electrical System 4

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	6311154	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151	6311154 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151 RELE BOSCH 33201 91 51	-	1	Enquire
002	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 RELE BOSCH 33201 5006	-	1	Enquire
003	6038007	RELAY	6038007 RELAY RELE ITALMEC 510	-	4	Enquire
004	6138214	RELAY	6138214 RELAY RELE SIEMENS A302	-	8	Enquire
005	6138332	FUSE	6138332 FUSE FUSIBILE 60A	-	6	Enquire
006	1638098	FUSE	1638098 FUSE FUSIBILE 20A	-	4	Enquire
007	1638097	FUSE	1638097 FUSE (Valid for U.K 1998) FUSIBILE 15A	-	12	Enquire
007	1638097	FUSE	1638097 FUSE FUSIBILE 15A	-	11	Enquire
008	1638094	FUSE	1638094 FUSE FUSIBILE 5A	-	14	Enquire
009	1638096	FUSE	1638096 FUSE (Valid for U.K 1998) FUSIBILE 10A	-	13	Enquire
009	1638096	FUSE	1638096 FUSE FUSIBILE 10A	-	12	Enquire
010	6038006	RELAY	6038006 RELAY (Valid for U.K 1998) RELE SIEMENS A303	-	5	Enquire
010	6038006	RELAY	6038006 RELAY RELE SIEMENS A303	-	4	Enquire
011	1638099	FUSE	1638099 FUSE FUSIBILE 25A	-	1	Enquire
012	1638121	FUSE	1638121 FUSE FUSIBILE 30A	-	2	Enquire
013	5937770	RELAY	5937770 RELAY RELE COBOAV1 80024	-	1	Enquire
014	6311154	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151	6311154 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151 RELE BOSCH 33201 91 51	-	1	Enquire
015	6138003	RELAY	6138003 RELAY RELE ITALMEC 063	-	1	Enquire
016	6038008	DIODES ASSEMBLY	6038008 DIODES ASSEMBLY GRUPPODIODIN. 45410	-	1	Enquire
017	6137308	DIODE	6137308 DIODE DIODO D.R.L.	-	1	Enquire
018	6036297	RELAY	6036297 RELAY RELE ITALMEC 064	-	1	Enquire
019	6138104	RELAY	6138104 RELAY CONN. PONTATO GSM	-	1	Enquire
020	1638371	FUSE	1638371 FUSE FUSIBILE 3A	-	1	Enquire
