Alternator of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

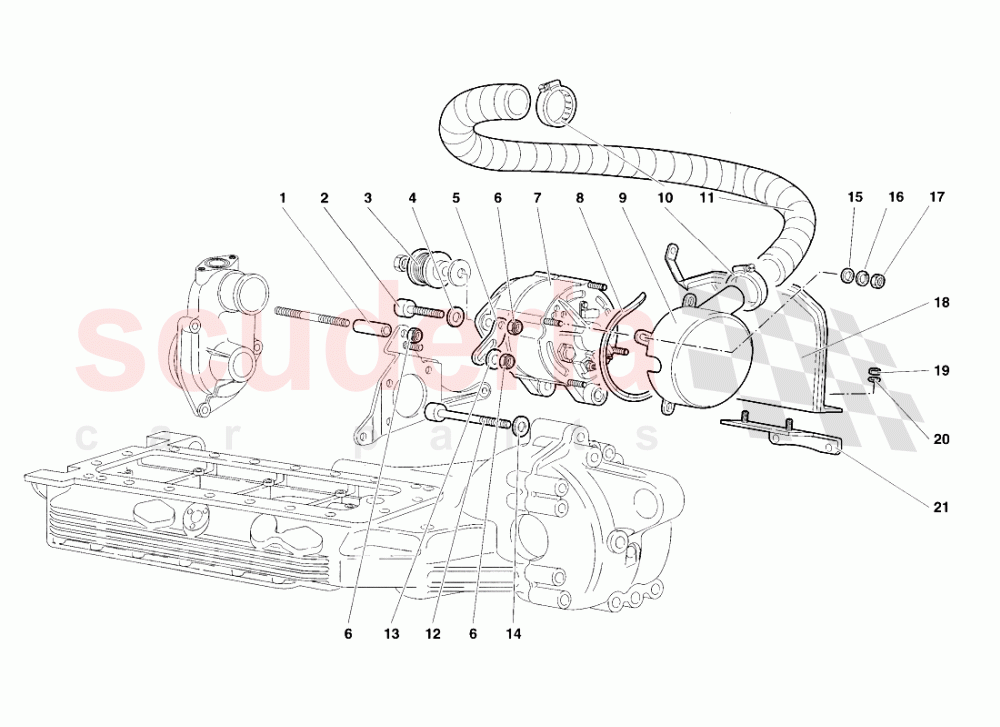

Lamborghini Diablo VT Roadster (1998-2000) - Alternator

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4031496	SPACER	4031496 SPACER DISTANZIALE	-	1	Enquire
002	8701017	SCREW	8701017 SCREW VITE	-	1	Enquire
003	1636515	PULLEY	1636515 PULLEY PULEGGIA	-	1	Enquire
004	8401006	WASHER	8401006 WASHER RONDELLA	-	1	Enquire
005	16002730	BRACKET	16002730 BRACKET STAFFA	-	1	Enquire
006	8201008	NUT	8201008 NUT DADO	-	3	Enquire
007	1625271	ALTERNATOR - ALTERNATORE	1625271 ALTERNATOR - ALTERNATORE	-	1	Enquire
008	1625920	GASKET	1625920 GASKET GUARNIZIONE	-	1	Enquire
009	1635962	CONVEYOR	1635962 CONVEYOR CONVOGLIATORE	-	1	Enquire
010	N0245022	CLAMP	N0245022 CLAMP FASCETTA	-	2	Enquire
011	7M903667	PIPE	7M903667 PIPE TUBO	-	1	Enquire
012	8701022	SCREW	8701022 SCREW VITE	-	1	Enquire
013	8401006	WASHER	8401006 WASHER RONDELLA	-	1	Enquire
014	WHT000768	WASHER	WHT000768 WASHER	-	1	Enquire
015	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	-	4	Enquire
016	8410502	WASHER	8410502 WASHER RONDELLA	-	4	Enquire
017	8200501	NUT	8200501 NUT DADO	-	4	Enquire
018	1635960	PLATE	1635960 PLATE (Valid for U.S.A.1998) PARATIA	-	1	Enquire
018	1635960	PLATE	1635960 PLATE (Valid for CANADA 1998) PARATIA	-	1	Enquire
019	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT (Valid for CANADA 1998) DADO	-	2	Enquire
019	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT (Valid for U.S.A.1998) DADO	-	2	Enquire
020	WHT002961	WASHER	WHT002961 WASHER (Valid for U.S.A.1998) RONDELLA	-	2	Enquire
020	WHT002961	WASHER	WHT002961 WASHER (Valid for CANADA 1998) RONDELLA	-	2	Enquire
021	1635961	BRACKET	1635961 BRACKET (Valid for CANADA 1998) STAFFA	-	1	Enquire
021	1635961	BRACKET	1635961 BRACKET (Valid for U.S.A.1998) STAFFA	-	1	Enquire
