Front Wheel And Hub Carrier

Lamborghini Diablo GT (1999-2000)

Find Your Part

Lamborghini Diablo GT (1999-2000) - Front Wheel and Hub Carrier

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

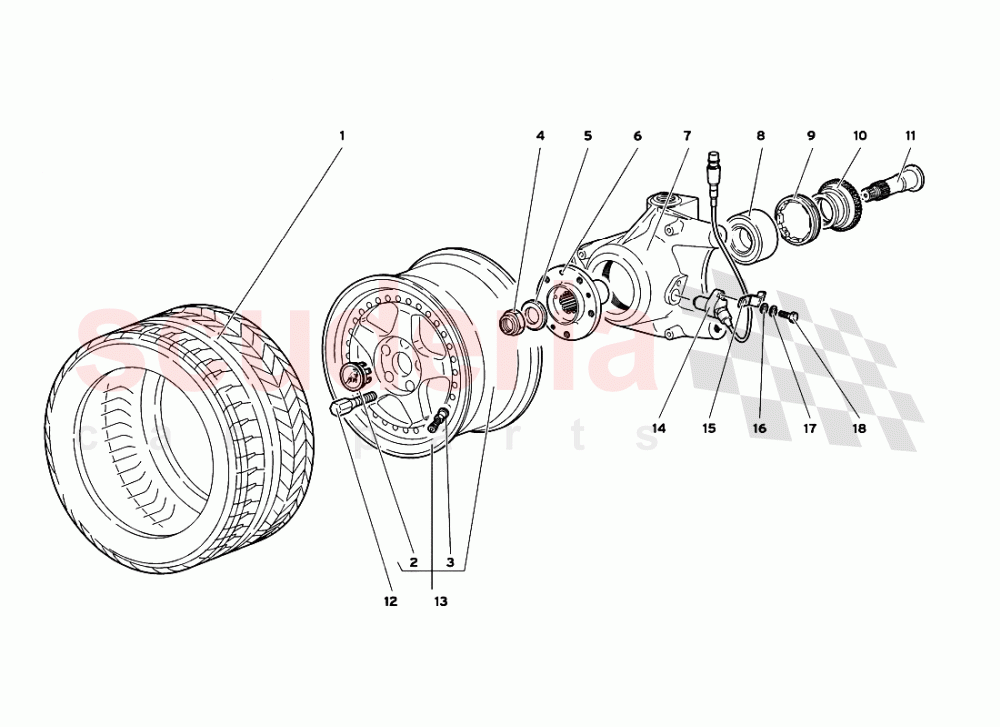

Front Wheel and Hub Carrier of Lamborghini Lamborghini Diablo GT (1999-2000) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 51004356
FRONT TYRE
PNEUMATICO ANT. 235/35 ZR 18 		$958.24 2
002 51004742
HUB COVER
COPRIMOZZO 		$91.49 2
003 51005003
VALVE
VALVOLA 		- 2 Enquire
004 410407338
NUT
DADO 		$455.66 2
005 410407631
WASHER 		$185.48 2
006 51001039
HUB
MOZZO 		$553.36 (4.1% off) 2
007 51000984
RIGHT HUB HOUSING
PORTAMOZZO DX 		$3,864.76 (4.2% off) 1
007 51000983
LEFT HUB HOUSING
PORTAMOZZO SX 		$3,864.76 (4.2% off) 1
008 8514501
BEARING
CUSCINETTO 		$115.64 (4.4% off) 2
009 5233369
PLUG
GHIERA 		$240.08 (4.4% off) 2
010 51001033
PHONIC WHEEL
RUOTA FONICA 		$480.16 (4.4% off) 2
011 51001038
PIN
PERNO 		$703.50 2
012 51001075LB
LOCKING WHEEL BOLT SET
(includes 1 bolt for each wheel and removal tool) 		- 1 Enquire
012 51001075
STUD
COLONNETTA 		$32.95 (4.4% off) 10
013 51004457
FRONT RIM
CERCHIO RUOTA ANTERIORE 		$2,844.28 2
014 51001139
TYRE REVOLUT. SENS.
SENSORE GIRI RUOTA LAVOR. 		$252.49 2
015 51001477
SUPPORT - SUPPORTO
O 		- 2 Enquire
016 N01152427
WASHER
RONDELLA
IN STOCK 		$0.28 2
017 WHT002963
WASHER
RONDELLA
IN STOCK 		$0.13 (98.2% off) 2
018 8100603
SCREW
VITE 		$1.38 (81.2% off) 2
