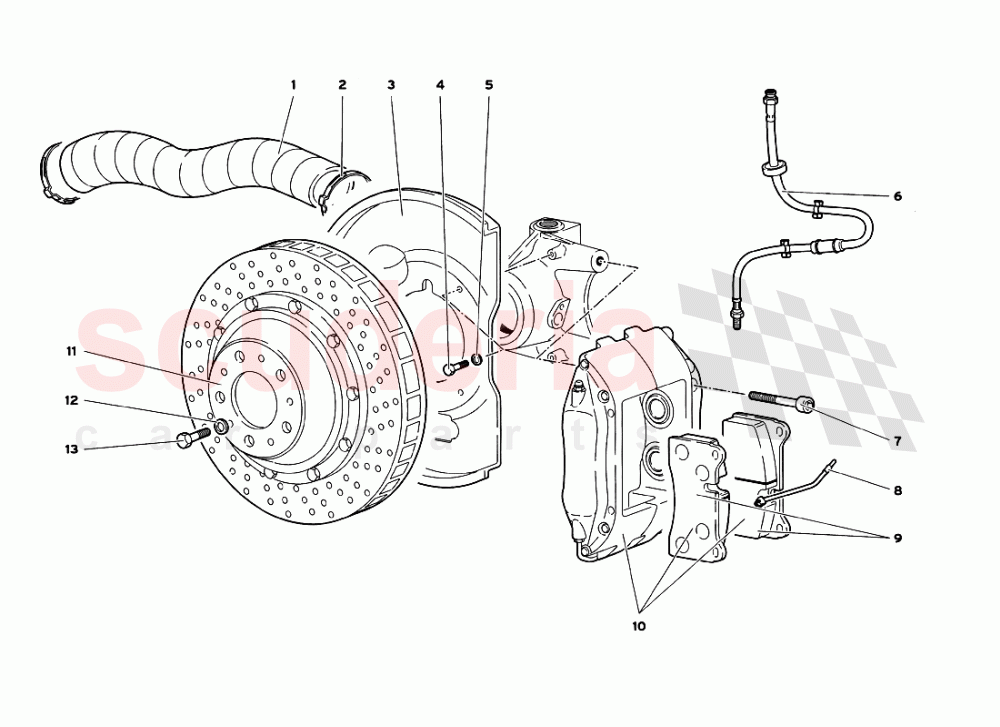

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	9453133	PIPE	9453133 PIPE TUBO FLESSIBILE	$244.43	2
002	8837501	STRAP	8837501 STRAP FASCETTA	$17.09	4
003	31001183	RIGHT CONVEYOR	31001183 RIGHT CONVEYOR CONVOGLIATORE DX	$408.19 MSRP: ~~425.00~~ (4% off)	1
003	31001180	LEFT CONVEYOR	31001180 LEFT CONVEYOR CONVOGLIATORE SX	$408.19 MSRP: ~~425.00~~ (4% off)	1
004	N01020717	SCREW M5X12	N01020717 SCREW M5X12 VITE	$0.67 MSRP: ~~7.31~~ (90.8% off)	6
005	8410503	WASHER	8410503 WASHER RONDELLA	$0.19 MSRP: ~~7.37~~ (97.4% off)	6
006	3229882	PIPE	3229882 PIPE TUBO FLESSIBILE	$172.36 MSRP: ~~174.50~~ (1.2% off)	2
007	8701224	SCREW	8701224 SCREW VITE	$16.02 MSRP: ~~16.65~~ (3.8% off)	4
008	3135643	ELECT CABLE	3135643 ELECT CABLE CAVO ELETTRICO	$30.84	2
009	32000561	Brake Pads Kit	32000561 Brake Pads Kit KIT PASTIGLIE FRENO	$991.31	1
010	31001456	LEFT BRAKE CALIPER	31001456 LEFT BRAKE CALIPER PINZA FRENI SX	$1,124.05	1
010	31001457	RIGHT BRAKE CALIP.	31001457 RIGHT BRAKE CALIP. PINZA FRENI DX	$1,124.05	1
011	31016759	Brake Disc	31016759 Brake Disc (355 mm diameter)	$2,399.20	2
012	WHT000771	WASHER	WHT000771 WASHER RONDELLA	$1.19	6
013	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	$1.22 MSRP: ~~7.23~~ (83.1% off)	6
