Front Brakes

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Front Brakes

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

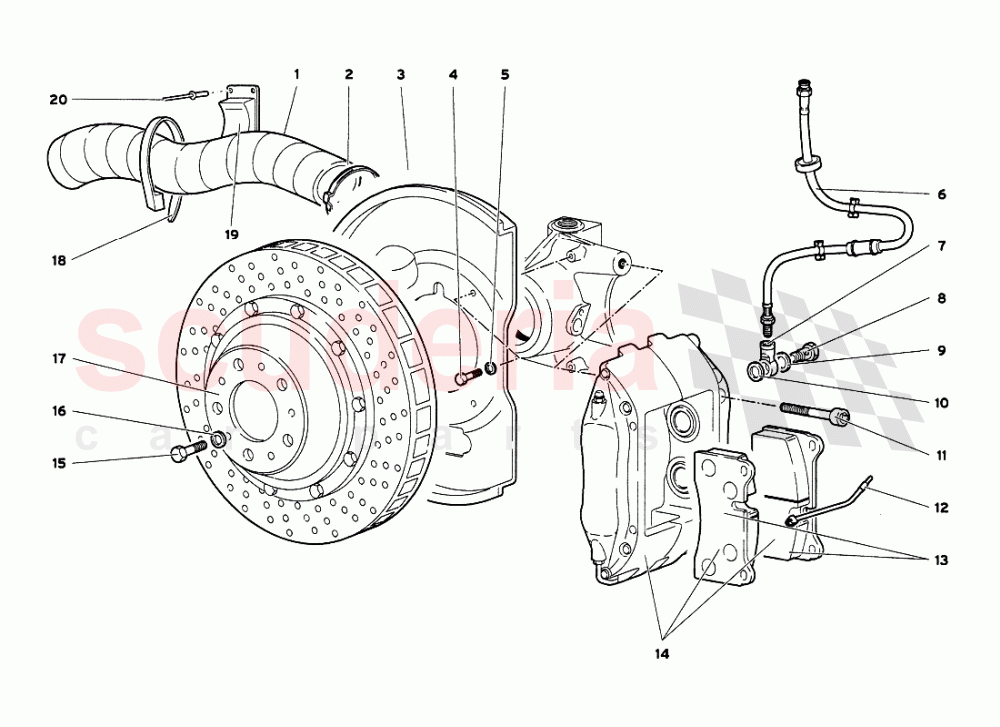

Front Brakes of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 9453133
PIPE 		$244.43 2
002 8837501
STRAP 		$17.09 4
003 31001183
RIGHT CONVEYOR 		$408.19 (4% off) 1
003 31001180
LEFT CONVEYOR 		$408.19 (4% off) 1
004 N01020717
SCREW M5X12
IN STOCK 		$0.67 (90.8% off) 6
005 8410503
WASHER 		$0.19 (97.4% off) 6
006 3229882
PIPE
IN STOCK 		$172.36 (1.2% off) 2
007 31003992
CONNECTION 		$48.21 (4.3% off) 2
008 31003991
SCREW 		- 2 Enquire
009 8401022
WASHER 		$0.27 (96.3% off) 2
010 8401022
WASHER 		$0.27 (96.3% off) 2
011 8701224
SCREW 		$16.02 (3.8% off) 4
012 3135643
ELECT CABLE 		$30.84 2
013 32000561
Brake Pads Kit 		$991.31 1
014 31001456
LEFT BRAKE CALIPER 		$1,124.05 1
014 31001457
RIGHT BRAKE CALIP. 		$1,124.05 1
015 N01029315
SCREW (FROM VIN 5LA01545) 		$1.22 (83.1% off) 6
016 WHT000771
WASHER
IN STOCK 		$1.19 6
017 31016759
Brake Disc
(355 mm diameter) 		$2,399.20 2
018 8830306
CLAMP 		$3.25 2
019 410805890
RIGHT SUPPORT 		$327.29 1
019 9411422
LEFT RETAINER 		- 1 Enquire
020 8954207
RIVET 		- 12 Enquire
