Hand Brake

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Hand Brake

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

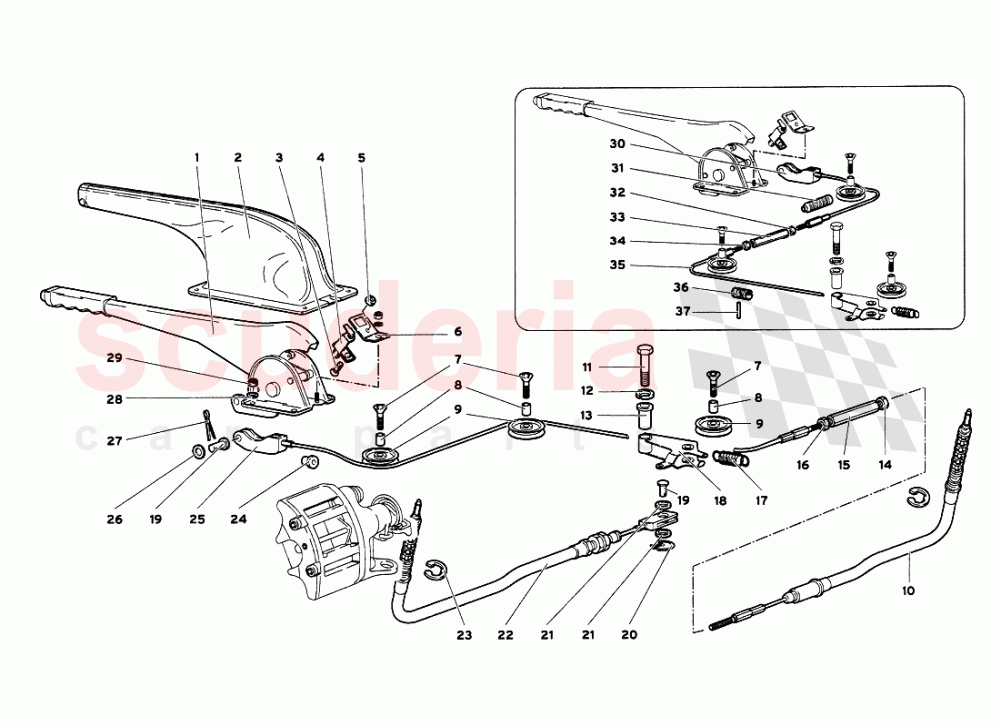

Hand Brake of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410711305
HAND BRAKE LEVER (STANDARD) 		$1,861.57 1
002 78001360
COVERING 		$161.92 (1.6% off) 1
003 8700431
SCREW 		$0.12 (98.4% off) 1
004 3336007
BUTTON 		$28.84 (4.2% off) 1
005 WHT002959
CLAMPING NUT
IN STOCK 		$0.82 (88.7% off) 1
006 3335993
SUPPORT - SUPPORTO 		- 1 Enquire
007 8700851
SCREW 		$0.82 (88.7% off) 3
008 3330827
BUSHING 		- 3 Enquire
009 3332512
PULLEY 		- 3 Enquire
010 33001133
RIGHT TIE ROD 		$221.48 1
011 8101407
SCREW M14X55 		$5.33 (2.2% off) 1
012 8411404
WASHER 		$0.49 (93.3% off) 1
013 3330828
SPACER 		- 1 Enquire
014 8200607
NUT M6 		$12.78 (3.9% off) 1
015 413609206
ADJUSTING SLEEVE
(Valid for R.H.D. version - April 1994) REGISTRO 		$65.79 1
016 N01100632
NUT M6 		$4.52 (38.3% off) 1
017 3330829
SPRING 		- 1 Enquire
018 3333935
ROCKER 		- 1 Enquire
019 410609789
JOURNAL 		$30.59 2
020 410713299
CLIP
IN STOCK 		$0.42 (94.3% off) 1
021 N0122094
WASHER
IN STOCK 		$1.47 (79.4% off) 2
022 33001131
LEFT TIE ROD 		$288.07 1
023 WHT003586
RETAINING RING
IN STOCK 		$0.68 (90.7% off) 2
024 3330880
RUBBER BUSHING 		- 1 Enquire
025 33001129
TIE ROD 		$389.38 1
026 N0122094
WASHER
IN STOCK 		$1.47 (79.4% off) 1
027 8820201
SPLIT PIN 		$6.52 (1.2% off) 1
028 N01152427
WASHER
IN STOCK 		$0.28 4
029 N01118312
HEXAGON NUT, SELF-LOCKING
IN STOCK 		$2.04 4
030 33008123
TIE ROD
(Valid for AUSTRALIA - March 2001) 		- 1 Enquire
030 33008123
TIE ROD
(Valid for GB - March 2001) 		- 1 Enquire
031 9458601
SHIELD
(Valid for GB - March 2001) 		- 1 Enquire
031 9458601
SHIELD
(Valid for AUSTRALIA - March 2001) 		- 1 Enquire
032 8200607
NUT M6
(Valid for AUSTRALIA - March 2001) 		$12.78 (3.9% off) 1
032 8200607
NUT M6
(Valid for GB - March 2001) 		$12.78 (3.9% off) 1
033 413609206
ADJUSTING SLEEVE
(Valid for R.H.D. version - April 1994) REGISTRO 		$65.79 2
034 N01100632
NUT M6
(Valid for GB - March 2001) 		$4.52 (38.3% off) 1
034 N01100632
NUT M6
(Valid for AUSTRALIA - March 2001) 		$4.52 (38.3% off) 1
035 3332749
TIE ROD
(Valid for AUSTRALIA - March 2001) 		$110.91 (4.4% off) 1
035 3332749
TIE ROD
(Valid for GB - March 2001) 		$110.91 (4.4% off) 1
036 3330824
BUSHING
(Valid for AUSTRALIA - March 2001) 		- 1 Enquire
036 3330824
BUSHING
(Valid for GB - March 2001) 		- 1 Enquire
037 8900204
PIN
(Valid for GB - March 2001) 		$0.16 (97.8% off) 1
037 8900204
PIN
(Valid for AUSTRALIA - March 2001) 		$0.16 (97.8% off) 1
