Lamborghini Diablo (1990-1998) - Fuel System (Valid for June 1992 Version) 3

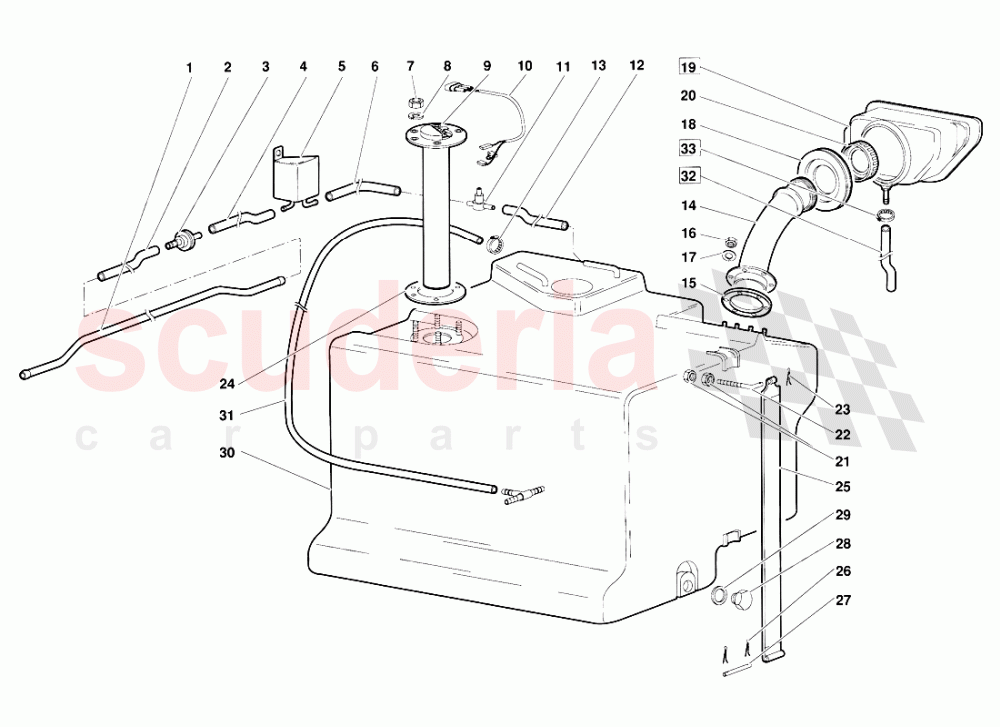

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	6231441	PIPE	6231441 PIPE (Valid for June 1992 version) TUBO IN RAME	$466.52	1
002	6231442	PIPE	6231442 PIPE (Valid for June 1992 version) TUBO	$7.16	1
003	6229379	SAFETY VALVE	6229379 SAFETY VALVE (Valid for June 1992 version) VALVOLA Dl SOVRAPRESSIONE	$130.89	1
004	6230435	PIPE	6230435 PIPE (Valid for June 1992 version) TUBO	$8.63	1
005	6231444	VAPOUR TANK	6231444 VAPOUR TANK (Valid for June 1992 version) SEPARATORE VAPORI BENZINA	-	1	Enquire
006	6230437	PIPE	6230437 PIPE (Valid for June 1992 version) TUBO	-	1	Enquire
007	8200501	NUT	8200501 NUT (Valid for June 1992 version) DADO	$0.06	5
008	8410502	WASHER	8410502 WASHER (Valid for June 1992 version) RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	5
009	6229648	LEVEL GAUGE	6229648 LEVEL GAUGE (Valid for June 1992 version) INDICATORE LIVELLO	$343.67 MSRP: ~~666.00~~ (48.4% off)	1
010	6130617	ELECT CABLE	6130617 ELECT CABLE (Valid for June 1992 version) CABLAGGIO GALLEGGIANTE	$36.22	1
011	6230531	SAFETY VALVE	6230531 SAFETY VALVE (Valid for June 1992 version) VALVOLA SICUREZZA	$294.68	1
012	6230438	PIPE	6230438 PIPE (Valid for June 1992 version) TUBO	$14.35	1
013	N0245097	CLAMP	N0245097 CLAMP (Valid for June 1992 version) FASCETTA	$18.10	2
014	6221128	UNION	6221128 UNION (Valid for June 1992 version) TUBO INTRODUZIONE	$2,004.77	1
015	6205360	GASKET	6205360 GASKET (Valid for June 1992 version) GUARNIZIONE	$98.53	1
016	N01100412	HEXAGON NUT	N01100412 HEXAGON NUT (Valid for June 1992 version) DADO	-	6	Enquire
017	WHT003052	WASHER 4,3	WHT003052 WASHER 4,3 (Valid for June 1992 version) RONDELLA	$3.77 MSRP: ~~7.38~~ (48.9% off)	6
018	9409215	GASKET	9409215 GASKET (Valid for June 1992 version) GUARNIZIONE	$32.82 MSRP: ~~34.30~~ (4.3% off)	1
019	9490517	CASE	9490517 CASE (Valid for June 1992 version) SCATOLA (dalla 1 2471 sostit. 0094905,06)	-	1	Enquire
020	400201587A	Fuel Filler Plug	400201587A Fuel Filler Plug (Valid for June 1992 version) TAPPO SERBATOIO	$966.28	1
021	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT (Valid for June 1992 version) DADO	$1.89	2
022	6226884	TIE ROD	6226884 TIE ROD (Valid for June 1992 version) TIRANTE	-	1	Enquire
023	8820304	SPLIT PIN	8820304 SPLIT PIN (Valid for June 1992 version) COPIGLIA	$1.74 MSRP: ~~7.09~~ (75.5% off)	1
024	6229649	FUEL LEVEL GAUGE FLANGE SEAL	6229649 FUEL LEVEL GAUGE FLANGE SEAL (Valid for June 1992 version) GUARNIZIONE	$17.95	1
025	6229506	STRAP	6229506 STRAP (Valid for June 1992 version) TIRANTE	$39.13	1
026	8820201	SPLIT PIN	8820201 SPLIT PIN (Valid for June 1992 version) COPIGLIA	$6.52 MSRP: ~~6.60~~ (1.2% off)	2
027	6231344	PIN	6231344 PIN (Valid for June 1992 version) PERNO	$323.52	1
028	8931203	PLUG	8931203 PLUG (Valid for June 1992 version) TAPPO Dl SCARICO	$27.29	1
029	WHT003362	WASHER	WHT003362 WASHER (Valid for June 1992 version) RONDELLA	$1.37 MSRP: ~~7.17~~ (80.9% off)	1
030	6229504	FUEL TANK	6229504 FUEL TANK (Valid for June 1992 version) SERBATOIO COMBUSTIBILE	-	1	Enquire
031	6230215	PIPE	6230215 PIPE (Valid for June 1992 version) TUBO	$134.00	1
032	9490516	PIPE	9490516 PIPE (Valid for June 1992 version) TUBO (dalla 12471 sostit. 009490513)	$13.28 MSRP: ~~13.45~~ (1.3% off)	1
033	8832205	STRAP	8832205 STRAP (Valid for June 1992 version) FASCETTA (dalla 12471)	$20.67 MSRP: ~~21.50~~ (3.9% off)	1
