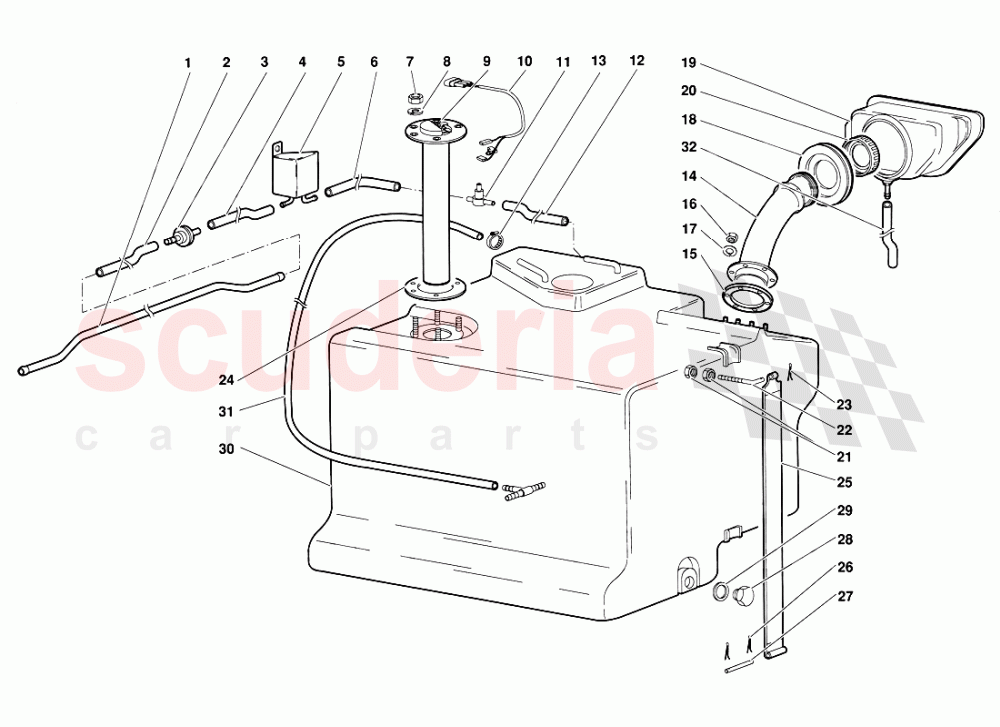

Lamborghini Diablo (1990-1998) - Fuel System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	6231441	PIPE	6231441 PIPE TUBO IN RAME	$466.52	1
002	6231442	PIPE	6231442 PIPE TUBO	$7.16	1
003	6229379	SAFETY VALVE	6229379 SAFETY VALVE VALVOLA Dl SOVRAPRESSIONE	$130.89	1
004	6230435	PIPE	6230435 PIPE TUBO	$8.63	1
005	5231444	VAPOUR TANK	5231444 VAPOUR TANK SEPARATORE VAPORI BENZINA	-	1	Enquire
006	6230437	PIPE	6230437 PIPE TUBO	-	1	Enquire
007	8200501	NUT	8200501 NUT DADO	$0.06	5
008	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	5
009	6229648	LEVEL GAUGE	6229648 LEVEL GAUGE INDICATORS LIVELLO	$343.67 MSRP: ~~666.00~~ (48.4% off)	1
010	6130617	ELECT CABLE	6130617 ELECT CABLE CABLAGGIO GALLEGGIANTE	$36.22	1
011	6230531	SAFETY VALVE	6230531 SAFETY VALVE VALVOLA SICUREZZA	$294.68	1
012	6230438	PIPE	6230438 PIPE TUBO	$14.35	1
013	N0245097	CLAMP	N0245097 CLAMP FASCETTA	$18.10	2
014	6221128	UNION	6221128 UNION TUBO INTRODUZIONE	$2,004.77	1
015	6205360	GASKET IN STOCK	6205360 GASKET GUARNIZIONE IN STOCK	$98.53	1
016	N01100412	HEXAGON NUT	N01100412 HEXAGON NUT DADO	-	6	Enquire
017	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.77 MSRP: ~~7.38~~ (48.9% off)	6
018	9409215	GASKET	9409215 GASKET GUARNIZIONE	$32.82 MSRP: ~~34.30~~ (4.3% off)	1
019	9490506	CASE	9490506 CASE SCATOLA	-	1	Enquire
020	400201587A	Fuel Filler Plug IN STOCK	400201587A Fuel Filler Plug TAPPO SERBATOIO IN STOCK	$966.28	1
021	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	2
022	6226884	TIE ROD	6226884 TIE ROD TIRANTE	-	1	Enquire
023	8820304	SPLIT PIN	8820304 SPLIT PIN COPIGLIA	$1.74 MSRP: ~~7.09~~ (75.5% off)	1
024	6229649	FUEL LEVEL GAUGE FLANGE SEAL IN STOCK	6229649 FUEL LEVEL GAUGE FLANGE SEAL GUARNIZIONE IN STOCK	$17.95	1
025	6229506	STRAP	6229506 STRAP TIRANTE	$39.13	1
026	8820201	SPLIT PIN	8820201 SPLIT PIN COPIGLIA	$6.52 MSRP: ~~6.60~~ (1.2% off)	2
027	6231344	PIN IN STOCK	6231344 PIN PERNO IN STOCK	$323.52	1
028	8931203	PLUG	8931203 PLUG TAPPO Dl SCARICO	$27.29	1
029	WHT003362	WASHER	WHT003362 WASHER RONDELLA	$1.37 MSRP: ~~7.17~~ (80.9% off)	1
030	6229504	FUEL TANK	6229504 FUEL TANK SERBATOIO COMBUSTIBILE	-	1	Enquire
031	6230215	PIPE	6230215 PIPE TUBO	$134.00	1
032	9490513	PIPE	9490513 PIPE TUBO	$31.63	1
