Lamborghini Diablo (1990-1998) - Exhaust System (Valid for June 1992 Version) 2

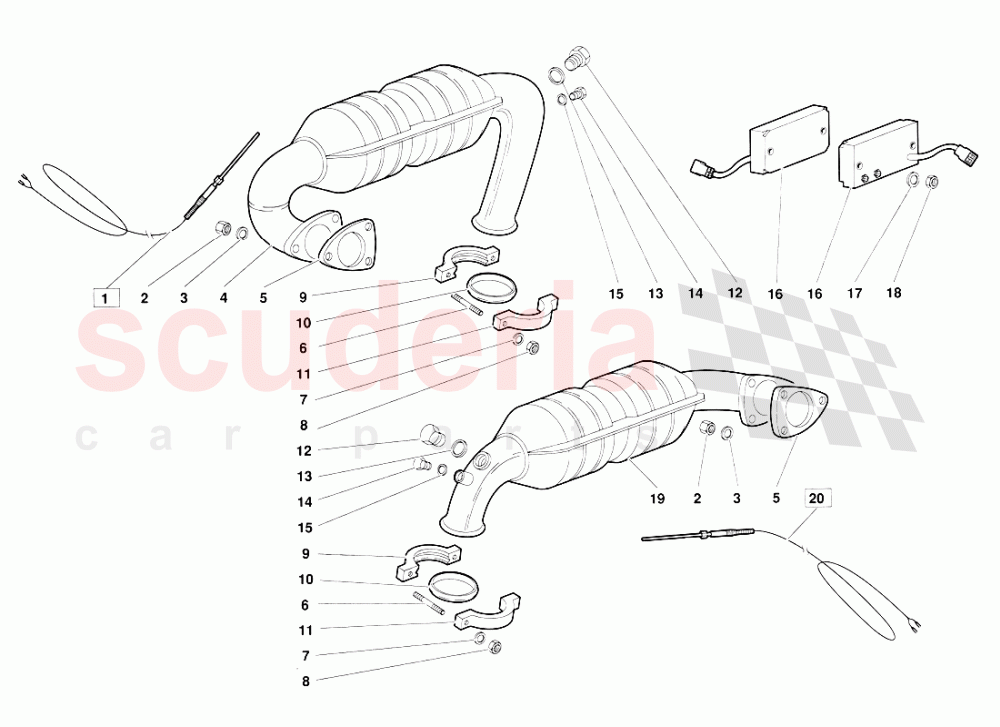

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4431296	THERMOCOUPLE	4431296 THERMOCOUPLE (Valid for June 1992 version) TERMOCOPPIA (dalla 12658) (sostituisce 004431295)	-	1	Enquire
002	N02214621	HEXAGON NUT M8 SELF-LOCKING	N02214621 HEXAGON NUT M8 SELF-LOCKING (Valid for June 1992 version) DADO	-	6	Enquire
003	8440806	WASHER	8440806 WASHER use : WHT001185	-	6	Enquire
004	4431146	RIGHT CATALYTIC CON.	4431146 RIGHT CATALYTIC CON. (Valid for June 1992 version) CONVERTITORE CATALITICO DX	-	1	Enquire
005	4432145	GASKET	4432145 GASKET (Valid for June 1992 version) GUARNIZIONE	-	2	Enquire
006	N0444416	STUD BOLT	N0444416 STUD BOLT (Valid for June 1992 version) PRIGIONIERO	-	4	Enquire
007	8440806	WASHER	8440806 WASHER use : WHT001185	-	4	Enquire
008	N02214621	HEXAGON NUT M8 SELF-LOCKING	N02214621 HEXAGON NUT M8 SELF-LOCKING (Valid for June 1992 version)DADO	-	4	Enquire
009	4425084	HALF RING	4425084 HALF RING (Valid for June 1992 version) SEMIANELLO FILETTATO	-	2	Enquire
010	4424070	BI-CONE RING	4424070 BI-CONE RING (Valid for June 1992 version) ANELLODOPPIOCONO	-	2	Enquire
011	4425084	HALF RING	4425084 HALF RING (Valid for June 1992 version) SEMIANELLO	-	2	Enquire
012	4431147	PLUG	4431147 PLUG (Valid for June 1992 version) TAPPO	-	2	Enquire
013	N91122801	WASHER 18,5X24X1,5	N91122801 WASHER 18,5X24X1,5 (Valid for June 1992 version) RONDELLA	-	2	Enquire
014	4431148	PLUG	4431148 PLUG (Valid for June 1992 version) TAPPO	-	2	Enquire
015	WHT001191	WASHER	WHT001191 WASHER (Valid for June 1992 version) RONDELLA	-	2	Enquire
016	1625281	ELECTRONIC CONTROL	1625281 ELECTRONIC CONTROL (Valid for June 1992 version) CENTRALINA ELETTRONICA	-	2	Enquire
017	WHT001187	WASHER	WHT001187 WASHER (Valid for June 1992 version) RONDELLA	-	2	Enquire
018	N0211963	NUT	N0211963 NUT (Valid for June 1992 version) DADO	-	2	Enquire
019	4431143	LEFT CATALYTIC CON.	4431143 LEFT CATALYTIC CON. (Valid for June 1992 version) CONVERTITORE CATALITICO SX	-	1	Enquire
020	4431295	THERMOCOUPLE	4431295 THERMOCOUPLE (Valid for June 1992 version) TERMOCOPPIA (dalla 12658) (sostituisce 004431296)	-	1	Enquire
