Exhaust System (Valid for June 1992 Version) 1 of Lamborghini Lamborghini Diablo (1990-1998)

View All

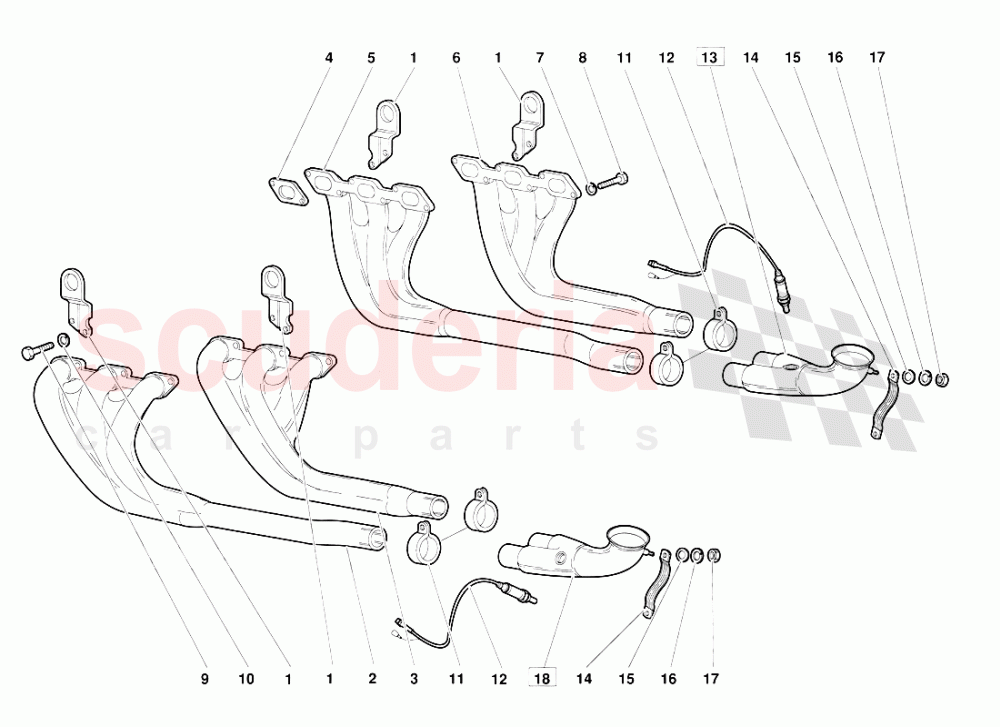

Lamborghini Diablo (1990-1998) - Exhaust System (Valid for June 1992 Version) 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4432438	HOOK	4432438 HOOK (Valid for June 1992 version) GANCIO	$36.36 MSRP: ~~38.05~~ (4.4% off)	4
002	4427528	EXHAUST MANIFOLD	4427528 EXHAUST MANIFOLD (Valid for June 1992 version) COLLETTORE ANT. SX (VISTA POST.)	$1,007.45 MSRP: ~~1,020.00~~ (1.2% off)	1
003	4427527	EXHAUST MANIFOLD	4427527 EXHAUST MANIFOLD (Valid for June 1992 version) COLLETTORE POST. SX (VISTA POST.)	$1,007.45 MSRP: ~~1,020.00~~ (1.2% off)	1
004	7M253039	GASKET	7M253039 GASKET Alternative use : 111532	$39.86	12
005	4427530	EXHAUST MANIFOLD	4427530 EXHAUST MANIFOLD (Valid for June 1992 version) COLLETTORE ANT. DX (VISTA POST.)	$1,007.45 MSRP: ~~1,020.00~~ (1.2% off)	1
006	4427529	EXHAUST MANIFOLD	4427529 EXHAUST MANIFOLD (Valid for June 1992 version) COLLETTORE POST. DX (VISTA POST.)	$1,007.45 MSRP: ~~1,020.00~~ (1.2% off)	1
007	N0152785	WASHER	N0152785 WASHER (Valid for June 1992 version) RONDELLA	$0.40	16
008	8100821	SCREW	8100821 SCREW (Valid for June 1992 version) VITE	$1.26	16
009	WHT002952	SCREW M8X1,25X30	WHT002952 SCREW M8X1,25X30 (Valid for June 1992 version) VITE	$4.98	8
010	N0152785	WASHER	N0152785 WASHER (Valid for June 1992 version) RONDELLA	$0.40	8
011	8835002	STRAP	8835002 STRAP (Valid for June 1992 version) FASCETTA	$288.78	4
012	R1470226	OXIGEN SENSOR	R1470226 OXIGEN SENSOR	$300.25 MSRP: ~~353.00~~ (14.9% off)	2
013	4431306	EXHAUST MANIFOLD	4431306 EXHAUST MANIFOLD (Valid for June 1992 version) COLLETTORE A TRE VIE DX (fino ,12440)	-	1	Enquire
013	4432704	EXHAUST MANIFOLD	4432704 EXHAUST MANIFOLD (Valid for June 1992 version) COLLETTORE A TRE VIE DX (dalla12441) (particolare intercambiabile)	$2,887.73	1
014	1604328	GROUND CABLE	1604328 GROUND CABLE (Valid for June 1992 version) CAVO MASSA	-	2	Enquire
015	N0122094	WASHER	N0122094 WASHER (Valid for June 1992 version) RONDELLA	$1.47 MSRP: ~~7.15~~ (79.4% off)	2
016	N0152785	WASHER	N0152785 WASHER (Valid for June 1992 version) RONDELLA	$0.40	2
017	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT (Valid for June 1992 version) DADO	$1.89	2
018	4432703	EXHAUST MANIFOLD	4432703 EXHAUST MANIFOLD (Valid for June 1992 version) COLLETTORE A TRE VIE SX (fino 12440)	$2,887.73	1
018	4432703	EXHAUST MANIFOLD	4432703 EXHAUST MANIFOLD (Valid for June 1992 version) COLLETTORE A TRE VIE SX (dalla12441) (particolare intercambiabile)	$2,887.73	1
