Lamborghini Diablo (1990-1998) - Electrical System (Valid for June 1992 Version) 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

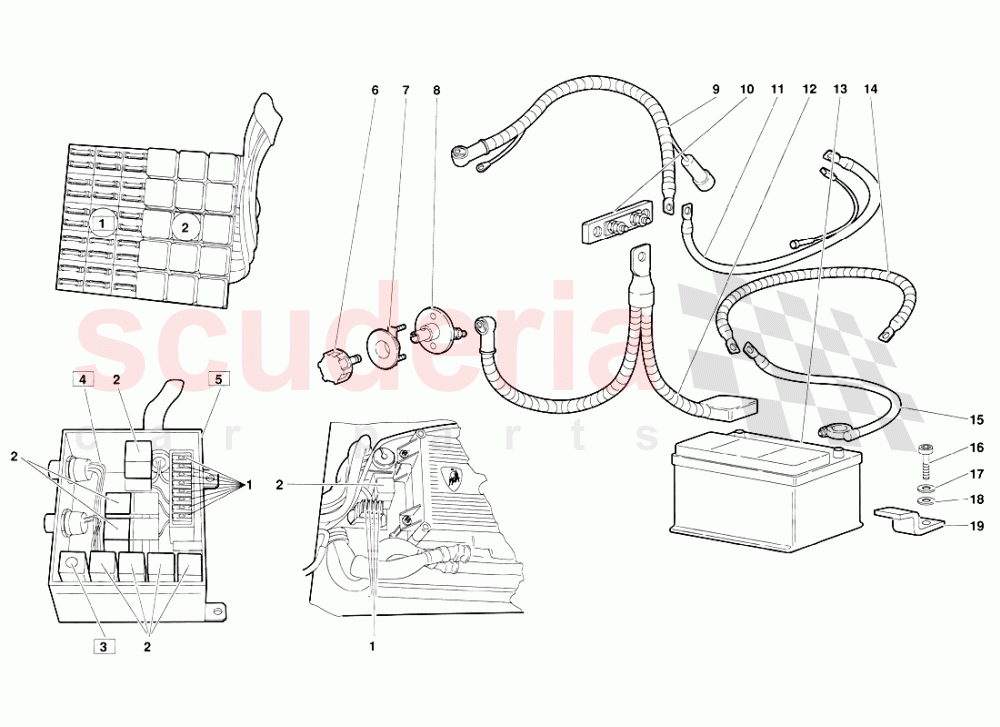

Electrical System (Valid for June 1992 Version) 2 of Lamborghini Lamborghini Diablo (1990-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 1626193
FUSE
(Valid for June 1992 version) FUSIBILE DA 15 AMPERE 		$0.61 1
001 1626697
FUSE
(Valid for June 1992 version) FUSIBILE DA 10 AMPERE 		$0.61 1
001 1629257
FUSE
(Valid for June 1992 version) FUSIBILE DA 7.5 AMPERE 		$1.50 1
001 1629259
FUSE
(Valid for June 1992 version) FUSIBILE DA 30 AMPERE 		$0.61 1
001 1629258
FUSE
(Valid for June 1992 version) FUSIBILE DA 20 AMPERE 		$0.61 (91.6% off) 1
001 1626192
FUSE
(Valid for June 1992 version) FUSIBILE DA 5 AMPERE 		$0.61 1
001 1633966
FUSE
(Valid for June 1992 version) FUSIBILE DA 25 AMPERE 		$0.61 1
002 6311154
RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151
(Valid for June 1992 version) TELERUTTORE BOSCH 0.332.014.151 		$48.08 1
002 6319913
RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151
(Valid for June 1992 version) TELERUTTORE BOSCH 0.332.204.151 		$63.16 1
002 6311155
RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006
(Valid for June 1992 version) TELERUTTORE BOSCH 0.332.015.006 		$57.69 1
003 6033965
DIODES ASSEMBLY
(Valid for June 1992 version) PORTADIODI ITALAMEC 454 		$75.80 1
004 6130615
ELECT CABLE
(Valid for June 1992 version) CABLAGGIO (fina 12595) 		- 1 Enquire
004 6132676
ELECT CABLE
(Valid for June 1992 version) CABLAGGIO (dalla 12596) 		- 1 Enquire
005 6130086
RELAY HOUSING
(Valid for June 1992 version) SCATOLA TELER. POST, (fino 12595) 		- 1 Enquire
005 6132677
RELAY HOUSING
(Valid for June 1992 version) SCATOLA TELER. POST, (dalla 12596) 		- 1 Enquire
006 5931167
KNOB
(Valid for June 1992 version) POMELLO 		$89.84 1
007 5931299
FLANGE
(Valid for June 1992 version) FLANGIA 		$233.25 (4.2% off) 1
008 5931163
CONNECTING BLOCK
(Valid for June 1992 version) BLOCCHETTO CONNESSIONE 		$235.12 1
009 6131371
ELECT CABLE
(Valid for June 1992 version) CAVO DAL MOT. AW. ALLA GIUNZIONE 		$433.02 1
010 1606170
ELECTRIC CONNECT.
(Valid for June 1992 version) GIUNZIONE 		$62.76 1
011 6132507
ELECT CABLE
(Valid for June 1992 version) CAVO DA ALTERNATORE A GIUNZIONE 		- 1 Enquire
012 6132157
ELECT CABLE
(Valid for June 1992 version) CAVO DA BATTERIA A GIUNZIONE 		$187.46 1
013 1624948
BATTERY
(Valid for June 1992 version) BATTERIA 		$1,147.87 1
014 6130080
ELECT CABLE
(Valid for June 1992 version) CAVO DAL MOTORE AL TELAIO 		$310.47 1
015 6130078
HARNESS
(Valid for June 1992 version) CAVO DALLA BATTERIA AL TELAIO 		$335.09 1
016 8700815
SCREW
(Valid for June 1992 version) VITE
IN STOCK 		$0.21 (97.1% off) 1
017 8410819
WASHER
(Valid for June 1992 version) RONDELLA 		$2.29 (4.6% off) 1
018 WHT002962
WASHER 14X8.4X1.5
(Valid for June 1992 version) RONDELLA
IN STOCK 		$0.33 (95.5% off) 1
019 4130608
PLATE
(Valid for June 1992 version) STAFFA 		$32.49 1
