Ignition Distributor and Phase Sensors of Lamborghini Lamborghini Diablo (1990-1998)

View All

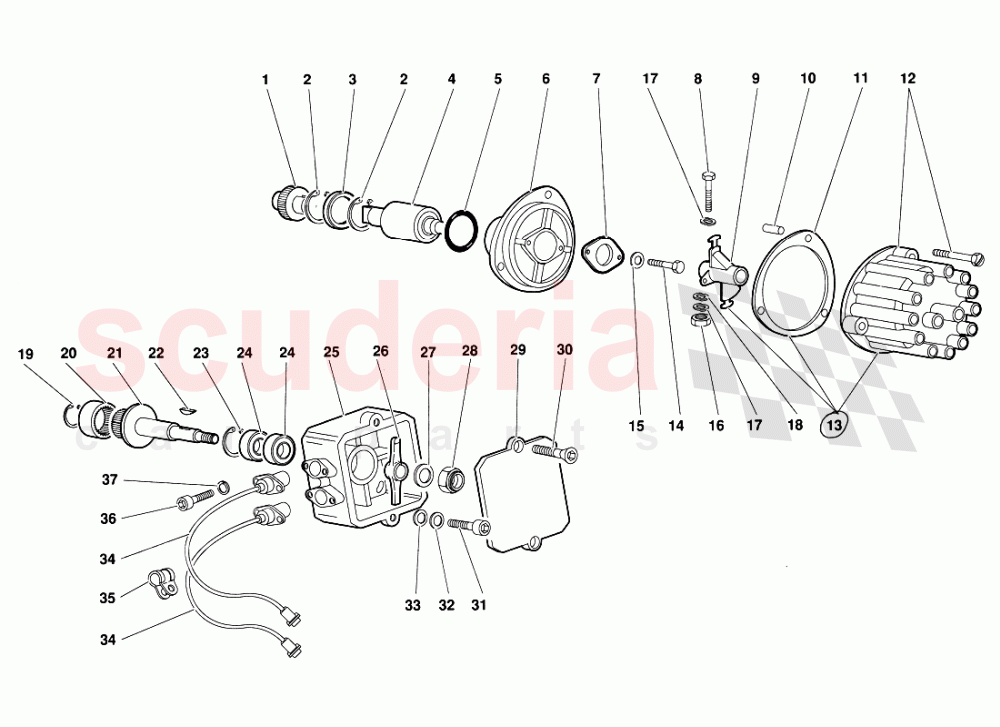

Lamborghini Diablo (1990-1998) - Ignition Distributor and Phase Sensors

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1625447	COUPLING	1625447 COUPLING INGRANAGGIO	$263.64	1
002	8573202	RETAINER RING	8573202 RETAINER RING ANELLO RITEGNO	$5.59	2
003	7L103051	Oil Seal	7L103051 Oil Seal	$37.08	1
004	1625446	BEARING	1625446 BEARING ALBERINO	$193.55	1
005	8604601	RING	8604601 RING ANELLO TENUTA	$2.67	1
006	1625303	FLANGE	1625303 FLANGE FLANGIA	$848.62	1
007	1629805	FLANGE	1629805 FLANGE FLANGIA	$25.94	1
008	8100506	SCREW	8100506 SCREW VITE	$10.24	1
009	1627730	ROTOR ARM	1627730 ROTOR ARM	$1,968.56	1
010	8850201	DOWEL	8850201 DOWEL GRANO	$44.56	1
011	1627729	GASKET	1627729 GASKET GUARNIZIONE	$15.39	1
012	1627728	CAP	1627728 CAP CALOTTA	$1,534.32	1
013	1625445	IGNITION DISTRIB	1625445 IGNITION DISTRIB DISTRIBUTORE ACCENSIONE	$2,808.11	1
014	8100508	SCREW	8100508 SCREW VITE	$5.82	2
015	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	2
016	8200509	NUT	8200509 NUT DADO	-	1	Enquire
017	8410503	WASHER	8410503 WASHER RONDELLA	$0.19 MSRP: ~~7.37~~ (97.4% off)	2
018	8400507	WASHER	8400507 WASHER RONDELLA	-	1	Enquire
019	8573202	RETAINER RING	8573202 RETAINER RING ANELLO RITEGNO	$5.59	1
020	1624409	COUPLING	1624409 COUPLING BUSSOLA	$289.50	1
021	1629249	SMALL SHAFT	1629249 SMALL SHAFT ALBERINO	$411.92	1
022	8860301	LOCK KEY	8860301 LOCK KEY LINGUETTA	$1.10	1
023	7M109381	RETAINING RING	7M109381 RETAINING RING ANELLO RITEGNO	$1.68 MSRP: ~~7.14~~ (76.5% off)	1
024	410109264	BEARING	410109264 BEARING CUSCINETTO	$29.09	2
025	1629776	CASE	1629776 CASE SCATOLA PICK-UP	$569.48	1
026	1632285	PULSE GENERATOR	1632285 PULSE GENERATOR GENERATORE Dl IMPULSI	$357.32	1
027	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5 RONDELLA	$1.55	1
028	8200819	NUT	8200819 NUT DADO	$5.82	1
029	1629246	COVER	1629246 COVER COPERCHIO	-	1	Enquire
030	8700501	SCREW	8700501 SCREW VITE	$2.72	2
031	8700608	SCREW	8700608 SCREW VITE	$0.55 MSRP: ~~7.36~~ (92.5% off)	4
032	N01152427	WASHER	N01152427 WASHER RONDELLA	$0.28	4
033	WHT002963	WASHER	WHT002963 WASHER RONDELLA	$0.13 MSRP: ~~7.38~~ (98.2% off)	4
034	7M905381	FLYWHEEL TIMING SENSOR	7M905381 FLYWHEEL TIMING SENSOR	$700.59	2
035	1628404	STRAP	1628404 STRAP FASCETTA	$2.67	1
036	N10648502	SCREW M5X10	N10648502 SCREW M5X10 VITE	$1.32 MSRP: ~~7.18~~ (81.6% off)	4
037	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	4
