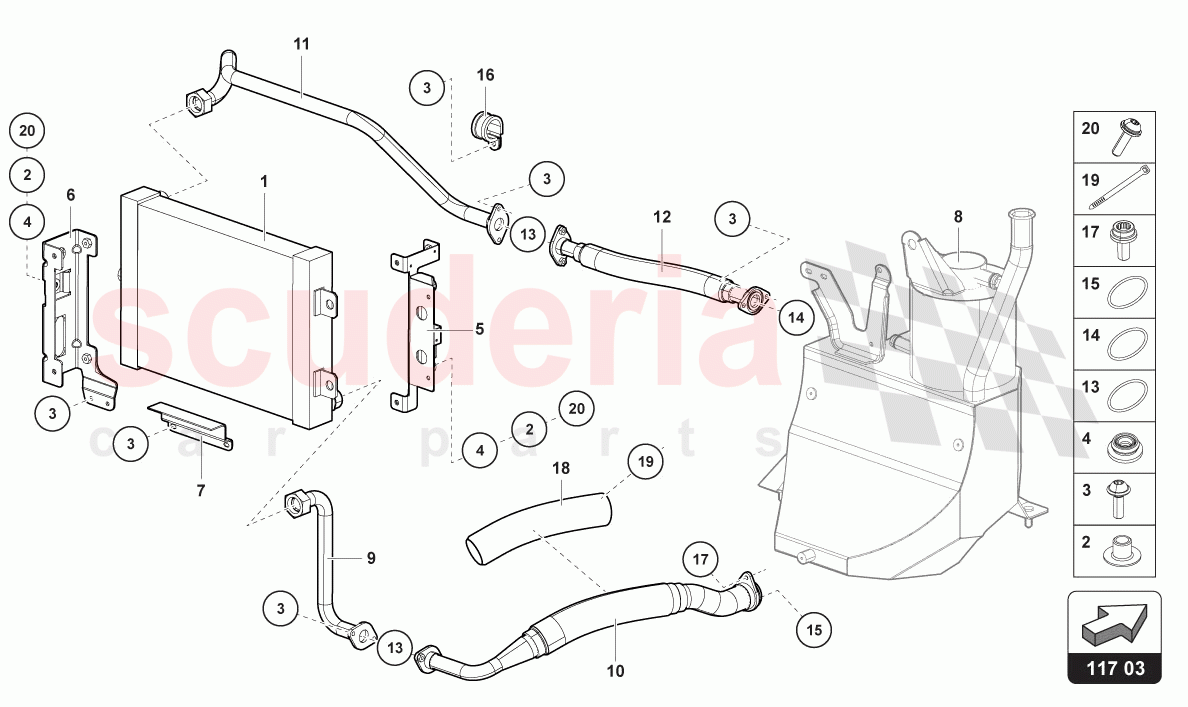

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7M117021C	OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8Z0129734	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8Z0129669A	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115633A	RETAINER FOR OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115632A	RETAINER FOR OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470117188	RETAINER FOR OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115655A	OIL HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115657G	OIL HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115689B	OIL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115687A	OIL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT004894	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT004894	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT004896	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0206244	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10717001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470198049	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470971850C	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91054001	SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7M117021C	OIL COOLER	7M117021C OIL COOLER	-	1	Enquire
2	8Z0129734	BUSH	8Z0129734 BUSH	-	3	Enquire
3	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M6X18	-	16	Enquire
4	8Z0129669A	GROMMET	8Z0129669A GROMMET	-	3	Enquire
5	470115633A	RETAINER FOR OIL COOLER	470115633A RETAINER FOR OIL COOLER INNER	-	1	Enquire
6	470115632A	RETAINER FOR OIL COOLER	470115632A RETAINER FOR OIL COOLER OUTER	-	1	Enquire
7	470117188	RETAINER FOR OIL COOLER	470117188 RETAINER FOR OIL COOLER	-	1	Enquire
9	470115655A	OIL HOSE	470115655A OIL HOSE	-	1	Enquire
10	470115657G	OIL HOSE	470115657G OIL HOSE	-	1	Enquire
11	470115689B	OIL PIPE	470115689B OIL PIPE	-	1	Enquire
12	470115687A	OIL PIPE	470115687A OIL PIPE	-	1	Enquire
13	WHT004894	SEAL RING	WHT004894 SEAL RING 31.42X2.62	-	2	Enquire
14	WHT004894	SEAL RING	WHT004894 SEAL RING 31.42X2.62	-	1	Enquire
15	WHT004896	SEAL RING	WHT004896 SEAL RING 38X2	-	1	Enquire
16	N0206244	CLAMP	N0206244 CLAMP	-	1	Enquire
17	N10717001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10717001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X18	-	1	Enquire
18	470198049	HEAT SHIELD	470198049 HEAT SHIELD	-	1	Enquire
19	470971850C	SPRING BAND CLAMP	470971850C SPRING BAND CLAMP	-	2	Enquire
20	N91054001	SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD	N91054001 SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD M6X22	-	3	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Oil Cooler

Lamborghini Aventador LP780 Ultimae Roadster
