Find Your Part

OIL CONTAINER of Lamborghini Lamborghini Aventador LP780 Ultimae Roadster

View All

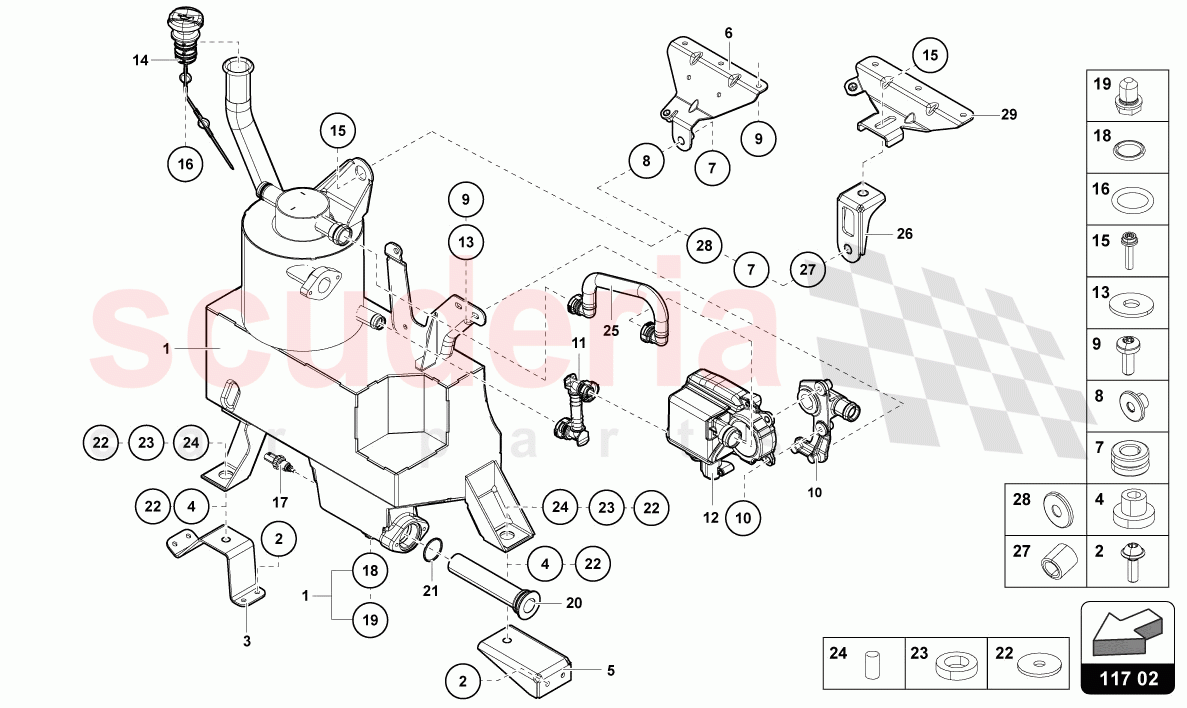

Lamborghini Aventador LP780 Ultimae Roadster - OIL CONTAINER (117.02.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470115373G	OIL CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115641B	BRACKET FOR FLUID RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400121268	RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115575C	BRACKET FOR FLUID RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4D0317867A	RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0903127	MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470103811	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115659A	OIL HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7C103464F	OIL SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002961	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115319A	OIL DIPSTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10533601	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002641	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	59919523F	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0138157	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	36103193	OIL DRAIN PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115157	CONNECTOR UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT004895	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT001942	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT001189	PLASTIC WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400121277	DISTANCE PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470103235A	VENT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115268	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0903127	MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115261F	BRACKET FOR FLUID RESERVOIR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470115373G	OIL CONTAINER	470115373G OIL CONTAINER	-	1	Enquire
2	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M6X18	-	6	Enquire
3	470115641B	BRACKET FOR FLUID RESERVOIR	470115641B BRACKET FOR FLUID RESERVOIR	-	1	Enquire
4	400121268	RUBBER BUSH	400121268 RUBBER BUSH	-	2	Enquire
5	470115575C	BRACKET FOR FLUID RESERVOIR	470115575C BRACKET FOR FLUID RESERVOIR	-	1	Enquire
7	4D0317867A	RUBBER BUSH	4D0317867A RUBBER BUSH	-	1	Enquire
8	4E0903127	MOUNTING	4E0903127 MOUNTING	-	2	Enquire
9	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	N10451408 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	7	Enquire
10	470103811	BRACKET	470103811 BRACKET	-	1	Enquire
11	470115659A	OIL HOSE	470115659A OIL HOSE	-	1	Enquire
12	7C103464F	OIL SEPARATOR	7C103464F OIL SEPARATOR	-	1	Enquire
13	WHT002961	WASHER	WHT002961 WASHER 6 -5X18X1,5	-	3	Enquire
14	470115319A	OIL DIPSTICK	470115319A OIL DIPSTICK	-	1	Enquire
15	N10533601	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N10533601 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	-	1	Enquire
16	WHT002641	SEAL RING	WHT002641 SEAL RING 20 -22X3,53	-	1	Enquire
17	59919523F	TEMPERATURE SENSOR	59919523F TEMPERATURE SENSOR	-	1	Enquire
18	N0138157	SEAL RING	N0138157 SEAL RING 1 WASHER FOR SERVICE INSPECTION-14X20	-	1	Enquire
19	36103193	OIL DRAIN PLUG	36103193 OIL DRAIN PLUG M14X1 -5X19	-	1	Enquire
20	470115157	CONNECTOR UNION	470115157 CONNECTOR UNION	-	1	Enquire
21	WHT004895	SEAL RING	WHT004895 SEAL RING 29X2	-	1	Enquire
22	WHT001942	WASHER	WHT001942 WASHER	-	4	Enquire
23	WHT001189	PLASTIC WASHER	WHT001189 PLASTIC WASHER	-	2	Enquire
24	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE	-	2	Enquire
25	470103235A	VENT HOSE	470103235A VENT HOSE FROM VIN CLA00325	-	1	Enquire
26	470115268	BRACKET	470115268 BRACKET	-	1	Enquire
28	4E0903127	MOUNTING	4E0903127 MOUNTING	-	1	Enquire
29	470115261F	BRACKET FOR FLUID RESERVOIR	470115261F BRACKET FOR FLUID RESERVOIR	-	1	Enquire

OIL COOLER (117.01.00)

OIL CONTAINER (117.02.00)

OIL COOLER (117.03.00)

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Oil Container

Lamborghini Aventador LP780 Ultimae Roadster

Illustration Number: 117.02.00

Lamborghini Aventador LP780 Ultimae Roadster - OIL CONTAINER (117.02.00)
