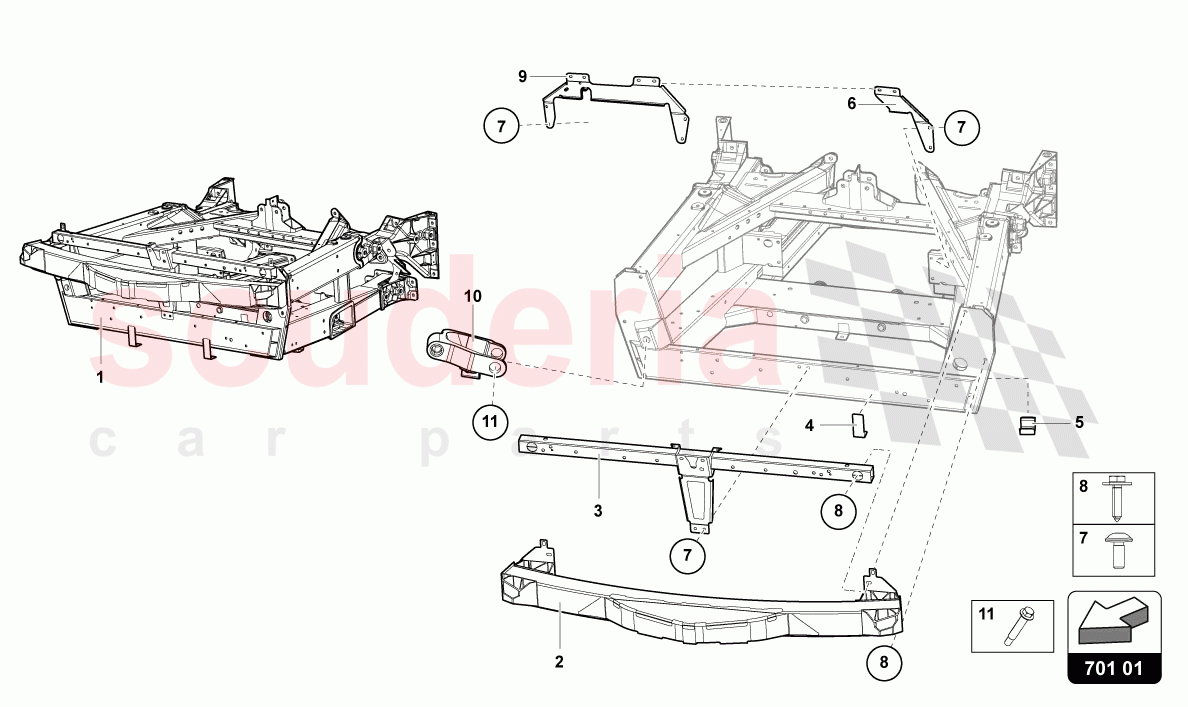

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470805011E	TRIM FRAME FRONT PART	$23,763.37	To Order

Photo	Part No	Description	Price (each)	Stock
	470807051D	CROSS MEMBER	$5,793.00	To Order

Photo	Part No	Description	Price (each)	Stock
	470805563C	CROSS MEMBER	$1,814.52	To Order

Photo	Part No	Description	Price (each)	Stock
	470805364B	ARM	$715.07	To Order

Photo	Part No	Description	Price (each)	Stock
	470805614B	ARM	$780.92	To Order

Photo	Part No	Description	Price (each)	Stock
	N90900401	HEX SOCKET OVAL HEAD COLLARED	$1.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90862302	HEXAGON HEAD BOLT (COMBI)	$6.20	To Order

Photo	Part No	Description	Price (each)	Stock
	470805313D	BAFFLE PLATE	$98.00	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	470898045	FRONT FRAME	470898045 FRONT FRAME REPAIR KIT FOR SERVICE CAMPAIGN	$5,254.33	1
1	470805011E	TRIM FRAME FRONT PART	470805011E TRIM FRAME FRONT PART	$23,763.37	1
2	470807051D	CROSS MEMBER	470807051D CROSS MEMBER CONTACT YOUR AREA MANAGER FROM VIN ZHWUR1ZD2ELA 02465	$5,793.00	1
3	470805563C	CROSS MEMBER	470805563C CROSS MEMBER CONTACT YOUR AREA MANAGER	$1,814.52	1
4	470805364B	ARM	470805364B ARM	$715.07	2
5	470805614B	ARM	470805614B ARM	$780.92	2
7	N90900401	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N90900401 HEX SOCKET OVAL HEAD COLLARED M6X20 IN STOCK	$1.25	10
8	N90862302	HEXAGON HEAD BOLT (COMBI)	N90862302 HEXAGON HEAD BOLT (COMBI) M8X40	$6.20	2
9	470805313D	BAFFLE PLATE	470805313D BAFFLE PLATE	$98.00	1
