TRIM FRAME REAR PART of Lamborghini Lamborghini Aventador LP770 SVJ Coupe

View All

Lamborghini Aventador LP770 SVJ Coupe - TRIM FRAME REAR PART

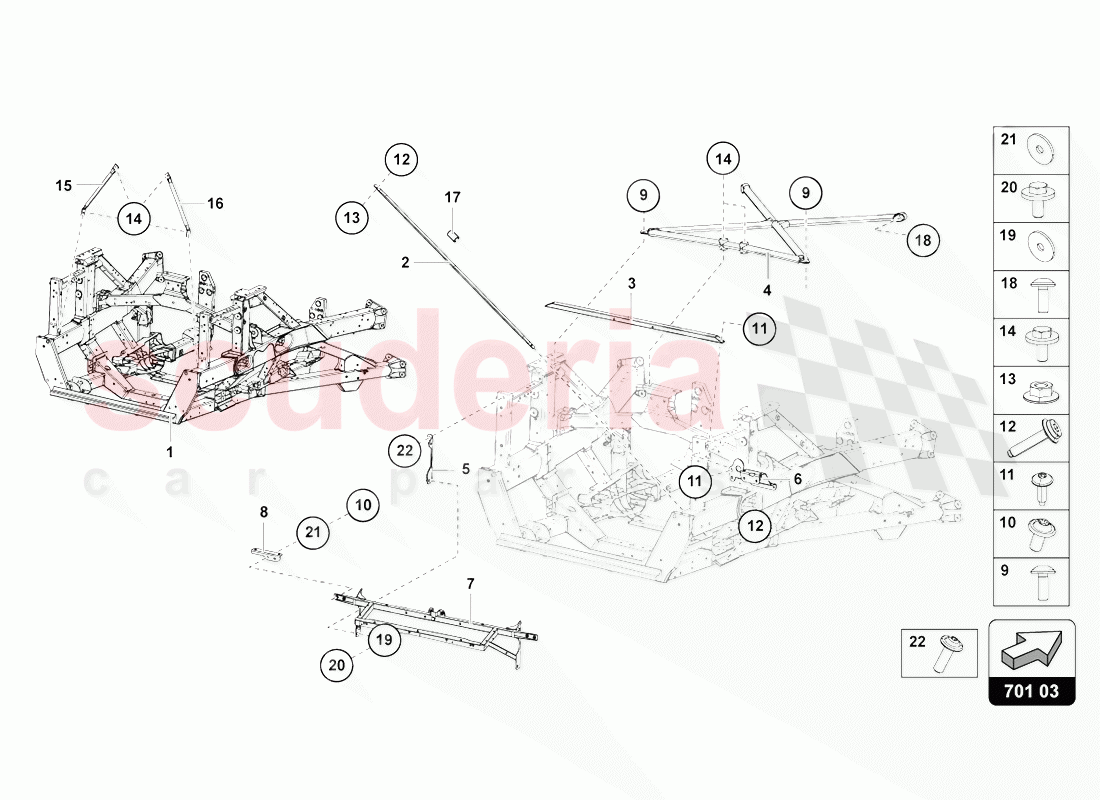

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470813031F	FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470813249B	CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470814519E	STRUT,REAR PANEL ANBINDUNG AGA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470814587E	X FRAME (CONTACT YOUR AREA MANAGER)	Enquire	To Order
	470814587D	X FRAME (CARBON-CONTACT YOUR AREA MANAGER)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470814657B	ARM	Enquire	To Order
	470814658B	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470814942B	Bracket (rear)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		MOTOR FOR WIND DEFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470814185D	CONNECTING PART	Enquire	To Order
	470814186D	CONNECTING PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0195306	BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10406504	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90900401	HEX SOCKET OVAL HEAD COLLARED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT001237	HEX SOCKET HEAD COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90798805	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90863802	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470813465B	SIDE REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470813466B	SIDE REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10761201	TOOTHED LOCK WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		FLAT HEAD MULTI-POINT SOCKET BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT001942	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90848003	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0116945	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470813031F	FRAME	470813031F FRAME CONTACT YOUR AREA MANAGER-REAR	-	1	Enquire
2	470813249B	CROSS MEMBER	470813249B CROSS MEMBER CONTACT YOUR AREA MANAGER-REAR	-	2	Enquire
3	470814519E	STRUT,REAR PANEL ANBINDUNG AGA	470814519E STRUT,REAR PANEL ANBINDUNG AGA	-	1	Enquire
4	470814587E	X FRAME (CONTACT YOUR AREA MANAGER)	470814587E X FRAME (CONTACT YOUR AREA MANAGER) CONTACT YOUR AREA MANAGER-REAR	-	1	Enquire
4	470814587D	X FRAME (CARBON-CONTACT YOUR AREA MANAGER)	470814587D X FRAME (CARBON-CONTACT YOUR AREA MANAGER) CARBON- CONTACT YOUR AREA MANAGER - PARTICULAR DIMENSION-REAR	-	1	Enquire
5	470814657B	ARM	470814657B ARM LEFT REAR	-	1	Enquire
5	470814658B	ARM	470814658B ARM RIGHT REAR	-	1	Enquire
6	470814942B	Bracket (rear)	470814942B Bracket (rear) REAR	-	1	Enquire
7	-	MOTOR FOR WIND DEFLECTOR	MOTOR FOR WIND DEFLECTOR	-	-	Enquire
8	470814185D	CONNECTING PART	470814185D CONNECTING PART LEFT REAR	-	1	Enquire
8	470814186D	CONNECTING PART	470814186D CONNECTING PART RIGHT REAR	-	1	Enquire
9	N0195306	BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING	N0195306 BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING M8X25	-	14	Enquire
10	N10406504	OVAL HEXAGON SOCKET HEAD BOLT	N10406504 OVAL HEXAGON SOCKET HEAD BOLT M6X12	-	4	Enquire
11	N90900401	HEX SOCKET OVAL HEAD COLLARED	N90900401 HEX SOCKET OVAL HEAD COLLARED M6X20	-	2	Enquire
12	WHT001237	HEX SOCKET HEAD COLLARED BOLT	WHT001237 HEX SOCKET HEAD COLLARED BOLT M8X40	-	4	Enquire
13	N90798805	HEXAGON COLLAR NUT	N90798805 HEXAGON COLLAR NUT M8	-	2	Enquire
14	N90863802	HEXAGON HEAD BOLT (COMBI)	N90863802 HEXAGON HEAD BOLT (COMBI) WITH THE READLOCK-M8X25	-	6	Enquire
15	470813465B	SIDE REINFORCEMENT	470813465B SIDE REINFORCEMENT LEFT REAR	-	1	Enquire
16	470813466B	SIDE REINFORCEMENT	470813466B SIDE REINFORCEMENT RIGHT REAR	-	1	Enquire
17	N10761201	TOOTHED LOCK WASHER	N10761201 TOOTHED LOCK WASHER 14X24X30	-	2	Enquire
18	-	FLAT HEAD MULTI-POINT SOCKET BOLT	FLAT HEAD MULTI-POINT SOCKET BOLT SEE ILLUSTRATION :-M8X30 701-060	-	-	Enquire
19	WHT001942	WASHER	WHT001942 WASHER	-	2	Enquire
20	N90848003	HEX COLLARED BOLT	N90848003 HEX COLLARED BOLT M8X18	-	2	Enquire
21	N0116945	WASHER	N0116945 WASHER 7X22	-	4	Enquire
22	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT M8X25-H	-	4	Enquire
