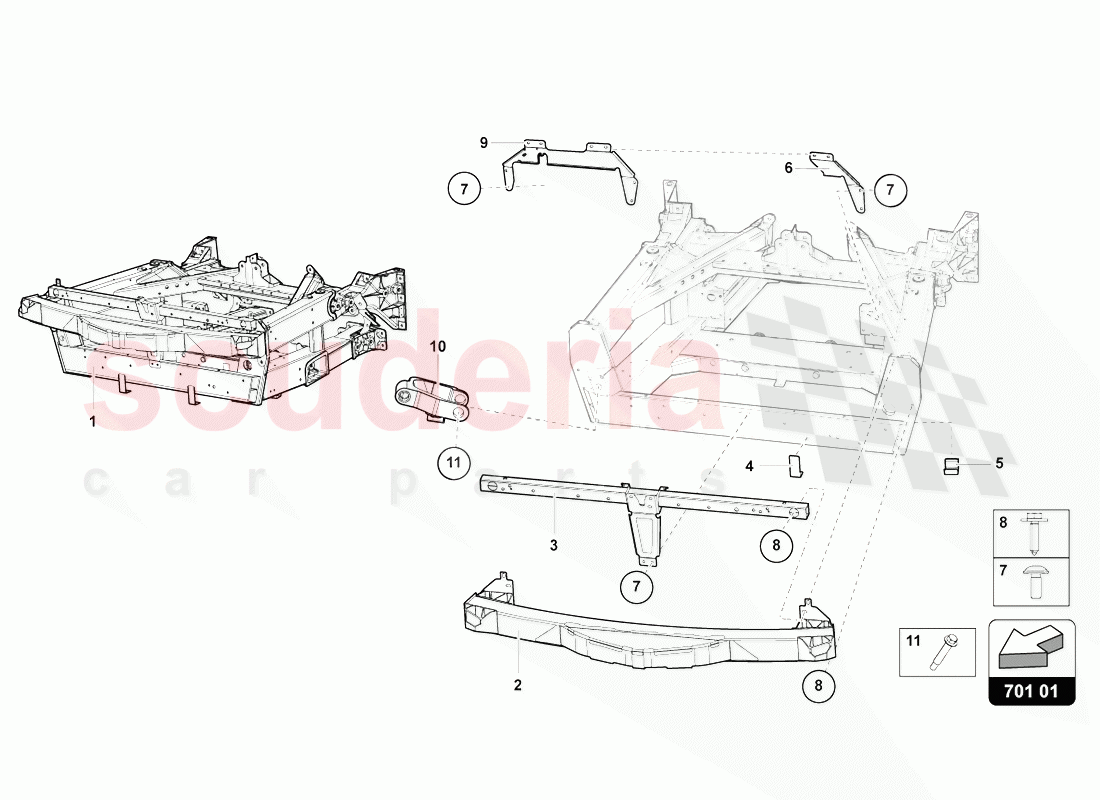

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470805011E	TRIM FRAME FRONT PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470807051D	CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470805563C	CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470805364B	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470805614B	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BAFFLE PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90900401	HEX SOCKET OVAL HEAD COLLARED	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90862302	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470805313D	BAFFLE PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470807195A	SUPPORT PART VITE FISS GANCIO	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470805011E	TRIM FRAME FRONT PART	470805011E TRIM FRAME FRONT PART	-	1	Enquire
2	470807051D	CROSS MEMBER	470807051D CROSS MEMBER CONTACT YOUR AREA MANAGER FROM VIN ZHWUR1ZD2ELA 02465	-	1	Enquire
3	470805563C	CROSS MEMBER	470805563C CROSS MEMBER	-	1	Enquire
4	470805364B	ARM	470805364B ARM	-	2	Enquire
5	470805614B	ARM	470805614B ARM	-	2	Enquire
6	-	BAFFLE PLATE	BAFFLE PLATE NO PART - VALID ONLY FOR MY12 - INCLUDED IN REF.:- 9	-	-	Enquire
7	N90900401	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N90900401 HEX SOCKET OVAL HEAD COLLARED M6X20 IN STOCK	-	10	Enquire
8	N90862302	HEXAGON HEAD BOLT (COMBI)	N90862302 HEXAGON HEAD BOLT (COMBI) M8X40	-	2	Enquire
9	470805313D	BAFFLE PLATE	470805313D BAFFLE PLATE	-	1	Enquire
10	-	ARM	ARM ONLY FOR SV VERSION	-	-	Enquire
11	470807195A	SUPPORT PART VITE FISS GANCIO	470807195A SUPPORT PART VITE FISS GANCIO CORNER PANEL	-	1	Enquire
