FOR AIR CONDITIONER

Find Your Part

Lamborghini Aventador LP770 SVJ Coupe - FOR AIR CONDITIONER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
420260401B A/C CONDENSER $603.51 To Order
Photo Part No Description Price (each) Stock
470260437A MOUNTING BAR $1,306.47 To Order
Photo Part No Description Price (each) Stock
470260438A MOUNTING BAR $49.40 To Order
Photo Part No Description Price (each) Stock
470260711D FLANGED PIPE $411.30 To Order
Photo Part No Description Price (each) Stock
470260741C FLANGED PIPE $403.23 To Order
Photo Part No Description Price (each) Stock
470260759A ATTACHMENT BARS $21.86 To Order
Photo Part No Description Price (each) Stock
470260759B ATTACHMENT BARS $26.49 To Order
Photo Part No Description Price (each) Stock
470260759C ATTACHMENT BARS $48.05 To Order
Photo Part No Description Price (each) Stock
470820191 DRIER $700.29 To Order
Photo Part No Description Price (each) Stock
470965521A FAN WHEEL FOR REFRIGERANT CONDENSER $4,885.75 To Order
Photo Part No Description Price (each) Stock
470965551 BRACKET $96.11 To Order
Photo Part No Description Price (each) Stock
471260704 FLANGED PIPE $438.19 To Order
472260704 FLANGED PIPE $450.27 To Order
Photo Part No Description Price (each) Stock
471260710 FLANGED PIPE $459.69 To Order
472260710 FLANGED PIPE $399.20 To Order
Photo Part No Description Price (each) Stock
N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD $1.68 To Order
Photo Part No Description Price (each) Stock
N90943501 HOSE BRACKET $1.23 To Order
Photo Part No Description Price (each) Stock
N10762301 TOOTHED LOCK WASHER $8.62 To Order
Photo Part No Description Price (each) Stock
N0206015 CLAMP $2.23 To Order
Photo Part No Description Price (each) Stock
N10413405 HEXAGON SOCKET FLAT HEAD BOLT M6 X 25 $1.74 To Order
Photo Part No Description Price (each) Stock
N10347103 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) $1.19 To Order
Photo Part No Description Price (each) Stock
8Z0129669A GROMMET $6.11 To Order
Photo Part No Description Price (each) Stock
8Z0129734 BUSH $8.56 To Order
Photo Part No Description Price (each) Stock
N10347204 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING $2.29 To Order
Photo Part No Description Price (each) Stock
N10405604 OVAL HEXAGON SOCKET HEAD BOLT $1.25 To Order
Photo Part No Description Price (each) Stock
N91193003 HEX SOCKET HEAD BOLT (COMBI) $2.84 To Order
View All

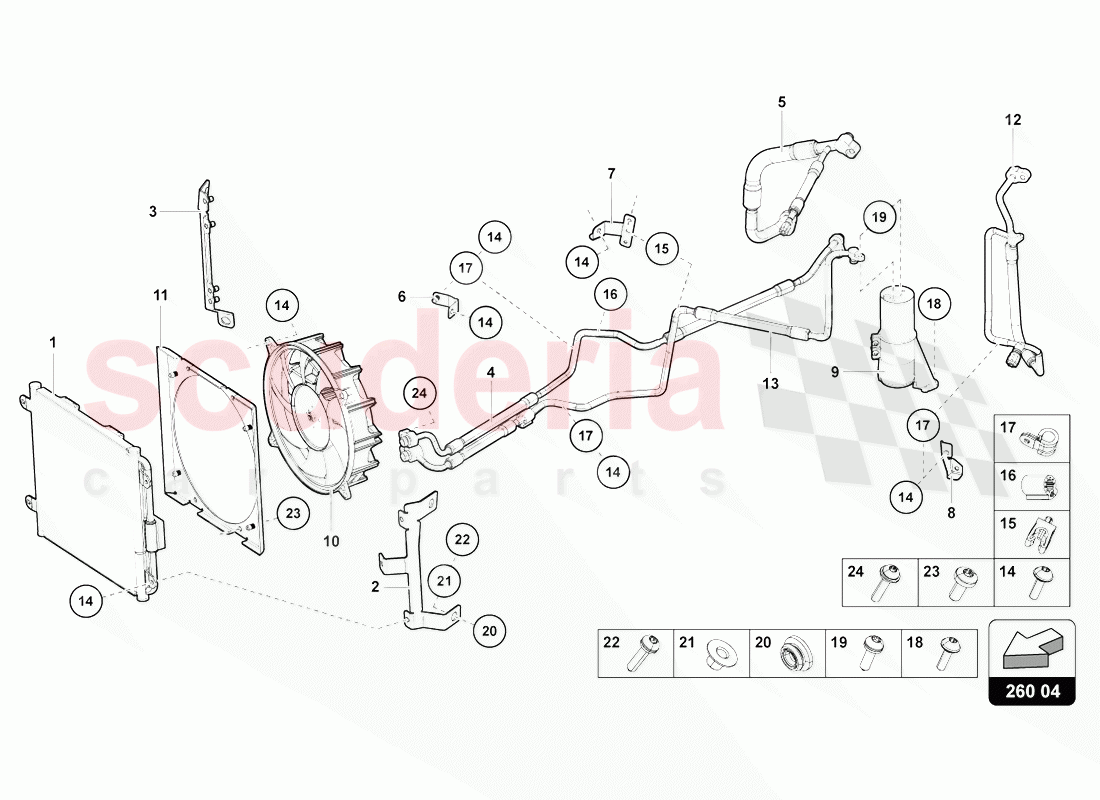

FOR AIR CONDITIONER of Lamborghini Lamborghini Aventador LP770 SVJ Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 420260401B
A/C CONDENSER
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS 		$603.51 1
2 470260437A
MOUNTING BAR
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS-LEFT 		$1,306.47 1
3 470260438A
MOUNTING BAR
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS-RIGHT 		$49.40 1
4 470260711D
FLANGED PIPE
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS 		$411.30 1
5 470260741C
FLANGED PIPE
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS 		$403.23 1
6 470260759A
ATTACHMENT BARS
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS 		$21.86 1
7 470260759B
ATTACHMENT BARS
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS 		$26.49 1
8 470260759C
ATTACHMENT BARS
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS 		$48.05 1
9 470820191
DRIER
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS 		$700.29 1
10 470965521A
FAN WHEEL FOR REFRIGERANT CONDENSER 		$4,885.75 1
11 470965551
BRACKET
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS 		$96.11 1
12 471260704
FLANGED PIPE
VALID FOR EUROPE, TURKEY, SVEDEN, INDIA, HONG KONG MARKETS- LHD 		$438.19 1
12 472260704
FLANGED PIPE
VALID FOR GB, SOUTH AFRICA- RHD 		$450.27 1
13 471260710
FLANGED PIPE
VALID FOR EUROPE, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS- LHD 		$459.69 1
13 472260710
FLANGED PIPE
VALID FOR GB, SOUTH AFRICA- RHD 		$399.20 1
14 N91032702
ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD
M6X20 		$1.68 13
15 N90943501
HOSE BRACKET
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS 		$1.23 (82.9% off) 2
16 N10762301
TOOTHED LOCK WASHER
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS-11,5X21,5X30 		$8.62 1
17 N0206015
CLAMP
12X15 		$2.23 (68.6% off) 3
18 N10413405
HEXAGON SOCKET FLAT HEAD BOLT M6 X 25
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS-M6X25 		$1.74 (76% off) 3
19 N10347103
HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS-M6X20 		$1.19 (83.7% off) 2
20 8Z0129669A
GROMMET 		$6.11 4
21 8Z0129734
BUSH 		$8.56 3
22 N10347204
HEXAGON SOCKET HEAD BOLT, SELF-LOCKING
M6X25 		$2.29 (68.5% off) 4
23 N10405604
OVAL HEXAGON SOCKET HEAD BOLT
M6X14 		$1.25 4
24 N91193003
HEX SOCKET HEAD BOLT (COMBI)
VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS-M6X28 		$2.84 (60.8% off) 2
