Find Your Part

View All

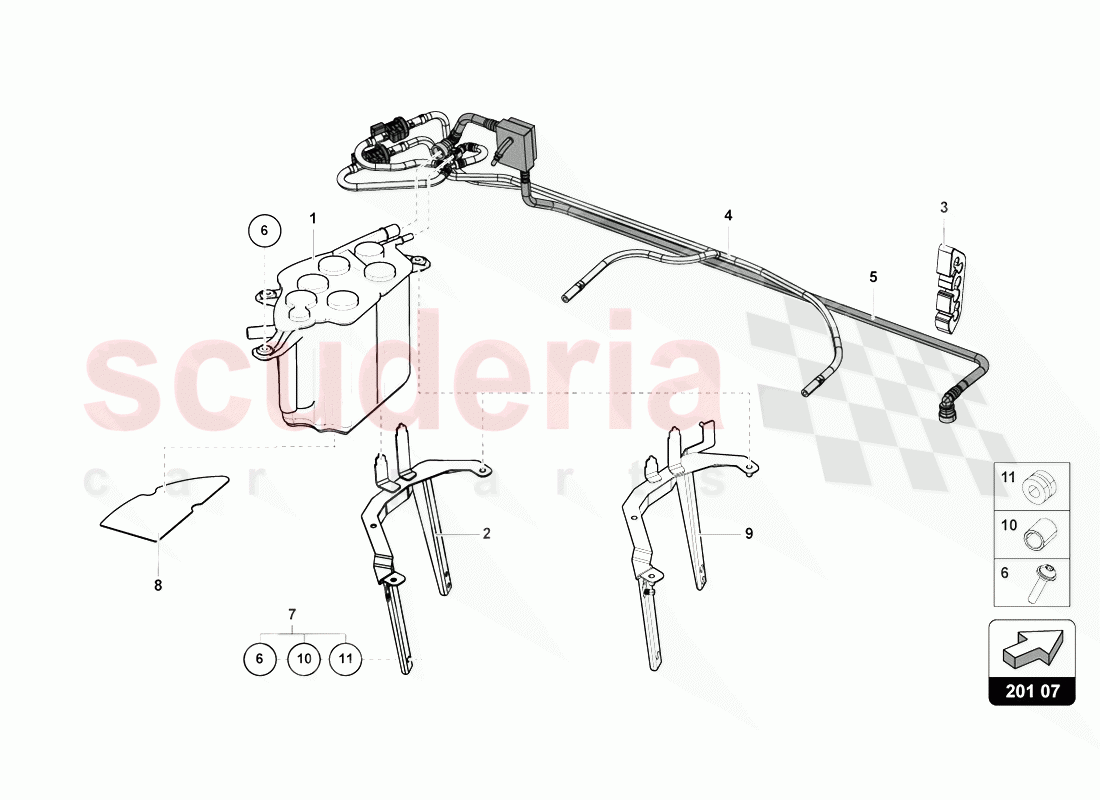

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
		ACTIVATED CHARCOAL CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470201898C	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470201171A	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470133366D	VENT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470201528C	FUEL LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470198037	FIXING SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470201283A	WARM AIR DEFLECTOR PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470201898D	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400121129A	SPACER HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M121585	VIBRATION DAMPER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	-	ACTIVATED CHARCOAL CONTAINER	ACTIVATED CHARCOAL CONTAINER WARNING! ORDER ALSO REF.8 - SEE TABLE 201. 10 REF.27	-	-	Enquire
2	470201898C	BRACKET	470201898C BRACKET	-	1	Enquire
3	470201171A	BRACKET	470201171A BRACKET RUBBER	-	2	Enquire
4	470133366D	VENT HOSE	470133366D VENT HOSE	-	1	Enquire
5	470201528C	FUEL LINE	470201528C FUEL LINE	-	1	Enquire
6	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING M6X28	-	5	Enquire
7	470198037	FIXING SET	470198037 FIXING SET	-	1	Enquire
8	470201283A	WARM AIR DEFLECTOR PLATE	470201283A WARM AIR DEFLECTOR PLATE SELF-ADHESIVE	-	1	Enquire
9	470201898D	BRACKET	470201898D BRACKET	-	1	Enquire
10	400121129A	SPACER HOLDER	400121129A SPACER HOLDER	-	2	Enquire
11	7M121585	VIBRATION DAMPER	7M121585 VIBRATION DAMPER	-	2	Enquire
