Interior D - cor 1 of Lamborghini Lamborghini Aventador LP740 S

View All

Lamborghini Aventador LP740 S - Interior D - cor 1

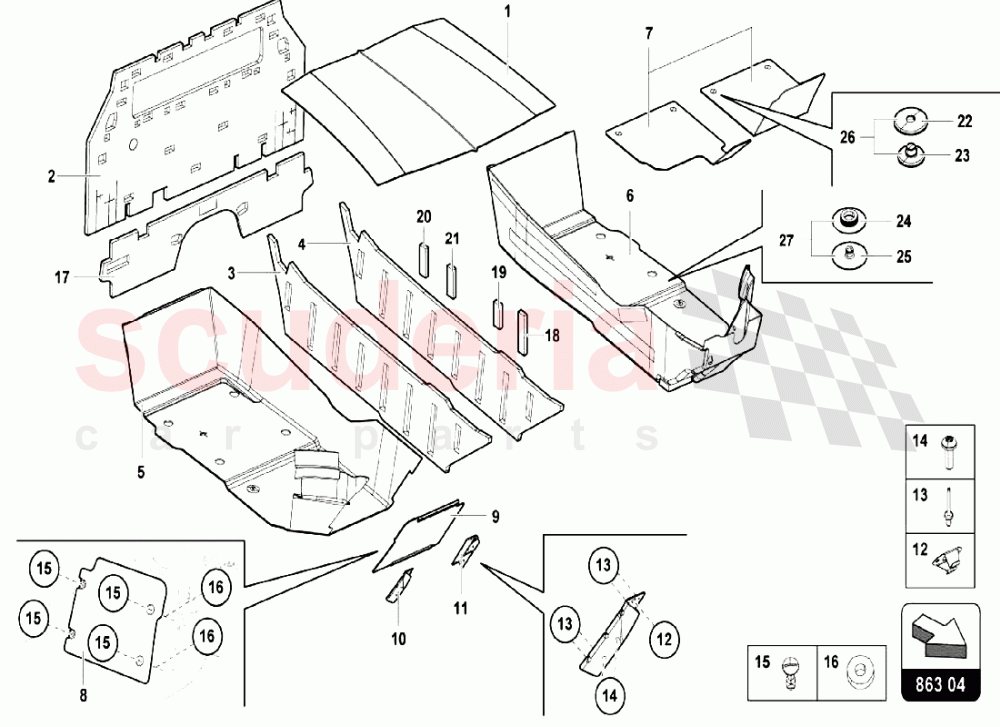

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	476867505K	Moulded Headliner (alcantara Interior - Supply Vin-alcantara + Q- Citura)	476867505K Moulded Headliner (alcantara Interior - Supply Vin-alcantara + Q- Citura)	-	1	Enquire
001	476867505L	Moulded Headliner (alcantara Interior - Supply Vin-leather)	476867505L Moulded Headliner (alcantara Interior - Supply Vin-leather)	-	1	Enquire
001	476867505M	Moulded Headliner (alcantara Interior - Supply Vin-alcantara)	476867505M Moulded Headliner (alcantara Interior - Supply Vin-alcantara)	-	1	Enquire
001	476867505P	Moulded Headliner (alcantara Interior - Supply Vin-carbon Effect)	476867505P Moulded Headliner (alcantara Interior - Supply Vin-carbon Effect)	-	1	Enquire
001	476867505F	Moulded Headliner (alcantara Interior - Supply Vin)	476867505F Moulded Headliner (alcantara Interior - Supply Vin)	-	1	Enquire
001	476867505J	Moulded Headliner (alcantara Interior - Supply Vin-carbon Effect)	476867505J Moulded Headliner (alcantara Interior - Supply Vin-carbon Effect)	-	1	Enquire
001	476867505E	Moulded Headliner (interni In Pelle Artificiale - Fornire Vin)	476867505E Moulded Headliner (interni In Pelle Artificiale - Fornire Vin)	-	1	Enquire
001	476867505B	Moulded Headliner (leather Upholstery - Supply Vin)	476867505B Moulded Headliner (leather Upholstery - Supply Vin)	-	1	Enquire
001	476867505G	Moulded Headliner (leather Upholstery Q-citura - Supply Vin)	476867505G Moulded Headliner (leather Upholstery Q-citura - Supply Vin)	-	1	Enquire
002	476863901A	Sound Absorber For Rear Panel	476863901A Sound Absorber For Rear Panel	-	1	Enquire
003	470864954A	DAMPING	470864954A DAMPING	-	1	Enquire
004	470864953A	DAMPING	470864953A DAMPING	-	1	Enquire
005	472863368F	Trim (from Vin Ela02707-right Rhd)	472863368F Trim (from Vin Ela02707-right Rhd)	-	1	Enquire
006	472863367F	Trim (from Vin Ela02707-left Rhd)	472863367F Trim (from Vin Ela02707-left Rhd)	-	1	Enquire
006	472863367G	Trim (newspapers Net- Warning Up To Vin Ela02706 Also Buy Rif. 7 Cod. 472863691a-left Rhd)	472863367G Trim (newspapers Net- Warning Up To Vin Ela02706 Also Buy Rif. 7 Cod. 472863691a-left Rhd)	-	1	Enquire
007	472863691A	1 SET FOOT MATS	472863691A 1 SET FOOT MATS	-	1	Enquire
008	472864419A	FOOT REST	472864419A FOOT REST	-	1	Enquire
009	472864463	FLOORING	472864463 FLOORING	-	1	Enquire
010	472864781	Bracket For Footrest (right Rhd)	472864781 Bracket For Footrest (right Rhd)	-	1	Enquire
011	472864782	Bracket For Footrest (left Rhd)	472864782 Bracket For Footrest (left Rhd)	-	1	Enquire
012	470864994	CLIP	470864994 CLIP	-	4	Enquire
013	N90931101	POP RIVET	N90931101 POP RIVET	-	8	Enquire
014	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	-	4	Enquire
015	8D0805121	GRIP PIN	8D0805121 GRIP PIN	-	4	Enquire
016	4A0805137A	RETAINING WASHER	4A0805137A RETAINING WASHER	-	4	Enquire
017	476863902A	SOUND ABSORBER FOR REAR PANEL	476863902A SOUND ABSORBER FOR REAR PANEL	-	1	Enquire
017	476863902B	SOUND ABSORBER FOR REAR PANEL	476863902B SOUND ABSORBER FOR REAR PANEL	-	1	Enquire
018	470864240D	INSULATING PIECE	470864240D INSULATING PIECE	-	2	Enquire
019	470864240E	INSULATING PIECE	470864240E INSULATING PIECE	-	6	Enquire
020	470864240F	INSULATING PIECE	470864240F INSULATING PIECE	-	8	Enquire
