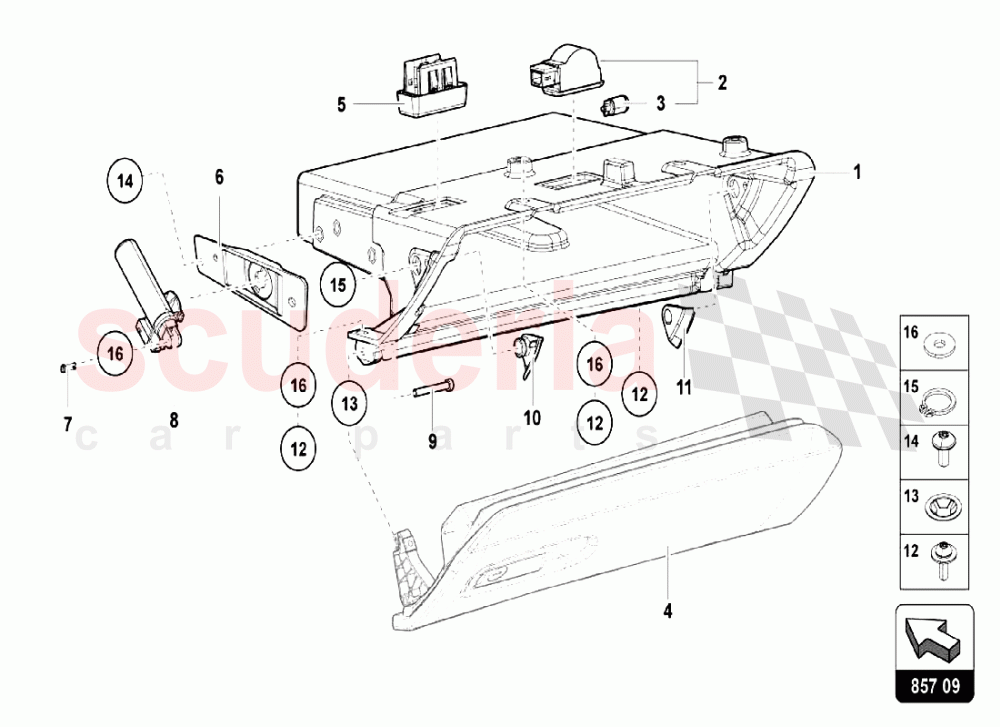

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	472857035B	GLOVE COMPARTMENT	472857035B GLOVE COMPARTMENT	$434.16	1
002	4B0947415A	LUGGAGE COMPARTMENT LAMP	4B0947415A LUGGAGE COMPARTMENT LAMP	$21.50	1
003	N0177532	BULB	N0177532 BULB	$1.17 MSRP: ~~7.09~~ (83.5% off)	1
005	4F0035909	TRIM FOR CONNECTION OF AUDIO SOURCES	4F0035909 TRIM FOR CONNECTION OF AUDIO SOURCES	$10.22	1
006	472858693A	BRACKET	472858693A BRACKET	$12.51	1
007	470857973	HINGE PIN	470857973 HINGE PIN	$1.63 MSRP: ~~7.14~~ (77.2% off)	1
008	4F2880324	BRAKE ELEMENT WITH SWITCH	4F2880324 BRAKE ELEMENT WITH SWITCH	$48.60	1
009	470858175	Hinge Pin	470858175 Hinge Pin	$24.95	2
010	471857955	Retaining Bar (left)	471857955 Retaining Bar (left)	$19.02	1
011	471857956	Retaining Bar (right)	471857956 Retaining Bar (right)	$19.02	1
012	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	$1.07	2
012	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI)	$0.88	3
013	N90657502	CLAMPING WASHER	N90657502 CLAMPING WASHER	$0.36 MSRP: ~~7.34~~ (95.1% off)	2
014	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	N10586401 OVAL HEXAGON SOCKET HEAD BOLT	$0.95	11
014	N10653801	HEXAGON SOCKET HEAD BOLT	N10653801 HEXAGON SOCKET HEAD BOLT	$3.30 MSRP: ~~7.29~~ (54.7% off)	3
015	N0124121	SECURING RING	N0124121 SECURING RING	$0.42 MSRP: ~~7.34~~ (94.3% off)	2
016	WHT003738	WASHER	WHT003738 WASHER	$0.77 MSRP: ~~7.27~~ (89.4% off)	1
