REAR ARMS of Lamborghini Lamborghini Aventador LP750 SV Roadster

View All

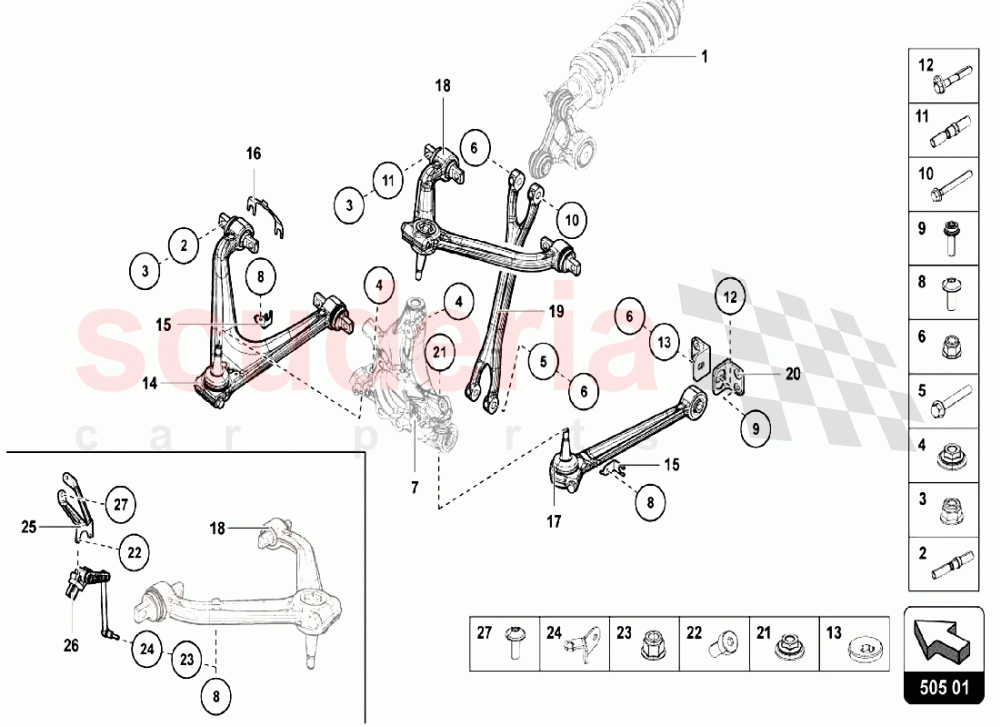

Lamborghini Aventador LP750 SV Roadster - REAR ARMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
002	WHT005396	THREADED PIN IN STOCK	WHT005396 THREADED PIN IN STOCK	$29.77	8
003	N10272302	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10272302 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	$2.42 MSRP: ~~7.14~~ (66.1% off)	16
004	WHT004898	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	WHT004898 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	$7.13	4
005	N10736901	HEXAGON BOLT	N10736901 HEXAGON BOLT	$75.80	2
006	N10106402	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10106402 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	$2.50	6
008	N91055501	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91055501 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.58 MSRP: ~~7.30~~ (92.1% off)	6
009	N10689301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10689301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$3.11	8
010	N10640301	HEX COLLARED BOLT IN STOCK	N10640301 HEX COLLARED BOLT IN STOCK	$7.44	2
011	WHT005397	THREADED PIN	WHT005397 THREADED PIN	$40.13	8
012	WHT004856	ECCENTRIC BOLT	WHT004856 ECCENTRIC BOLT	$65.33	2
013	WHT001676	ECCENTRIC WASHER IN STOCK	WHT001676 ECCENTRIC WASHER IN STOCK	$1.74 MSRP: ~~7.27~~ (76.1% off)	2
014	470505311F	LH LOWER ARM	470505311F LH LOWER ARM	$1,364.25	1
014	470505312F	RH LOWER ARM	470505312F RH LOWER ARM	$1,364.25	1
015	470971005	BRACKET	470971005 BRACKET	$18.29	4
016	470407203E	BALANCING PLATE	470407203E BALANCING PLATE	$20.84	4
016	470407203G	BALANCING PLATE	470407203G BALANCING PLATE	$27.83	4
016	470407203F	BALANCING PLATE IN STOCK	470407203F BALANCING PLATE IN STOCK	$28.24	4
017	470501530E	RH REAR TIE ROD (FROM VIN CLA00136)	470501530E RH REAR TIE ROD (FROM VIN CLA00136)	$1,841.41	1
017	470501529E	LH REAR TIE ROD (FROM VIN CLA00136)	470501529E LH REAR TIE ROD (FROM VIN CLA00136)	$1,841.41	1
018	470505324G	RH UPPER ARM	470505324G RH UPPER ARM	$743.29	1
018	470505323G	LH UPPER ARM	470505323G LH UPPER ARM	$743.29	1
019	470513387B	INSULATION STRIP	470513387B INSULATION STRIP	$969.10	2
020	470501430A	SUPPORT IN STOCK	470501430A SUPPORT IN STOCK	$58.40	4
021	WHT004995	HEXAGON FLANGE NUT, SELF-LOCKING	WHT004995 HEXAGON FLANGE NUT, SELF-LOCKING	$5.59	2
022	N10434301	SOCKET HEAD BOLT	N10434301 SOCKET HEAD BOLT	$0.83 MSRP: ~~7.29~~ (88.6% off)	4
023	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.04	2
024	470941288H	ARM	470941288H ARM	$17.07	1
024	470941287F	ARM	470941287F ARM	$17.07	1
025	470941288G	ARM	470941288G ARM	$29.11	1
025	470941287G	ARM	470941287G ARM	$29.11	1
026	470941307	POSITION SENSOR	470941307 POSITION SENSOR	$121.12	2
027	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT	$0.85	4
