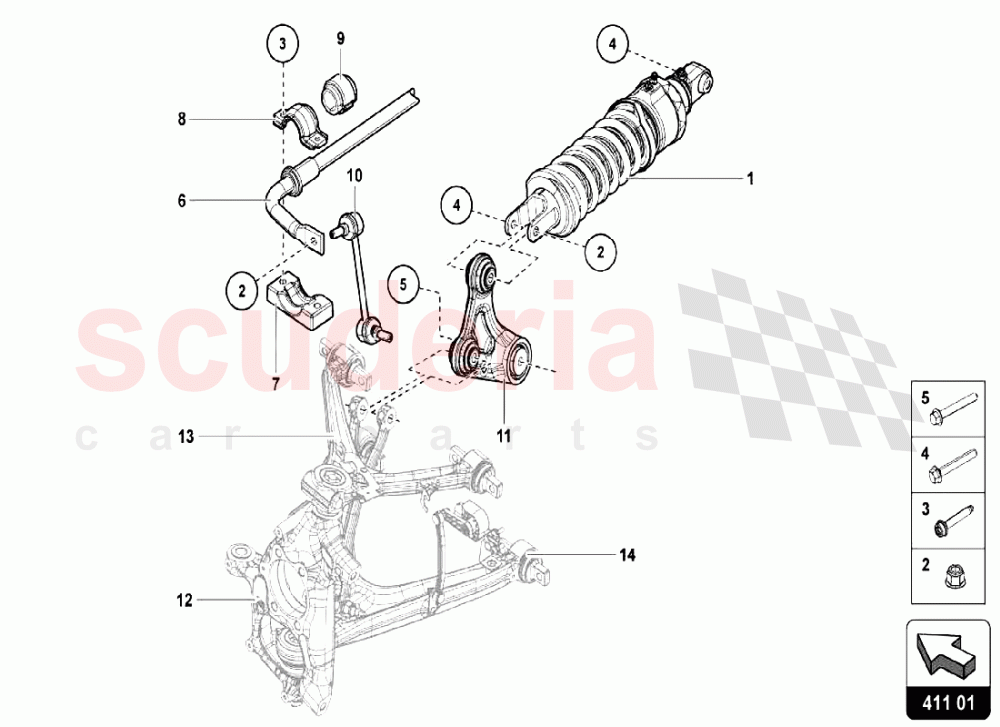

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470412019P	SHOCK ABSORBER (LIFTING SYSTEM)	470412019P SHOCK ABSORBER (LIFTING SYSTEM)	$6,066.99	2
001	470412019Q	SHOCK ABSORBER	470412019Q SHOCK ABSORBER	$15,961.47	2
002	N10106402	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10106402 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	$2.50	4
003	N10682501	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10682501 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$2.78 MSRP: ~~7.07~~ (60.7% off)	4
004	N10428002	HEX COLLARED BOLT	N10428002 HEX COLLARED BOLT	$6.27	2
005	N10628301	HEX COLLARED BOLT IN STOCK	N10628301 HEX COLLARED BOLT IN STOCK	$6.66	2
006	470411309D	Anti-roll Bar (front)	470411309D Anti-roll Bar (front)	$373.66	1
007	420411031A	ANTI-ROLL BAR BEARING BRACKET IN STOCK	420411031A ANTI-ROLL BAR BEARING BRACKET IN STOCK	$25.42	2
008	4D0411336G	CLAMP	4D0411336G CLAMP	$5.85	2
009	4D0411327J	RUBBER BUSH IN STOCK	4D0411327J RUBBER BUSH IN STOCK	$181.16	2
010	470411318C	COUPLING ROD IN STOCK	470411318C COUPLING ROD IN STOCK	$426.08	1
010	470411317C	COUPLING ROD	470411317C COUPLING ROD	$426.08	1
011	470413127	OUTRIGGER	470413127 OUTRIGGER	$1,298.39	2
