Lamborghini Aventador LP750 SV Coupe - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

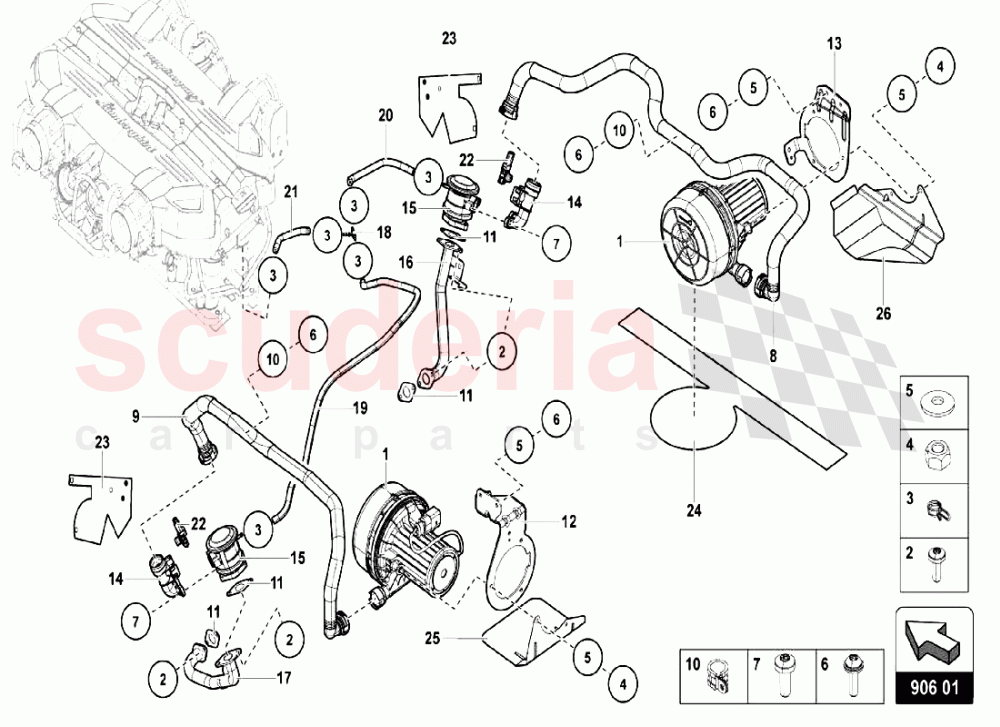

SECONDARY AIR SYSTEM of Lamborghini Lamborghini Aventador LP750 SV Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 R8340017
HEAT SHIELD + PUMP (ORDERABLE FOR CAMPAING NR L834-A.06.12) 		- 1 Enquire
001 400998075
PUMP 		- 2 Enquire
002 N10451408
OVAL HEXAGON SOCKET HEAD BOLT 		- 8 Enquire
003 N10210501
CLAMP 		- 6 Enquire
004 N02214812
HEXAGON NUT, SELF-LOCKING 		- 6 Enquire
005 WHT002961
WASHER 		- 10 Enquire
006 N91054001
SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD 		- 9 Enquire
007 N10451408
OVAL HEXAGON SOCKET HEAD BOLT 		- 4 Enquire
008 470131611B
AIR HOSE 		- 1 Enquire
009 470131611C
AIR HOSE 		- 1 Enquire
010 N0206253
CLAMP 		- 5 Enquire
011 6A131120D
SEAL 		- 4 Enquire
012 470906613C
SUPPORT 		- 1 Enquire
013 470906617A
SUPPORT 		- 1 Enquire
014 7L131119
Secondary Air Injection Pump Hose 		- 2 Enquire
015 7L131101N
COMBINATION VALVE 		- 2 Enquire
016 470133898A
PIPE 		- 1 Enquire
017 470133897B
PIPE 		- 1 Enquire
018 7L133579
T-PIECE 		- 1 Enquire
019 470131845
PIPE 		- 1 Enquire
020 470131846
PIPE 		- 1 Enquire
021 470131853
PIPE 		- 1 Enquire
022 6L906052A
PRESSURE SENSOR 		- 2 Enquire
023 7M133106B
HEAT SHIELD 		- 2 Enquire
025 470906325A
HEAT SHIELD 		- 1 Enquire
026 470906294A
HEAT SHIELD 		- 1 Enquire
