Lamborghini Aventador LP750 SV Coupe - VACUUM SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

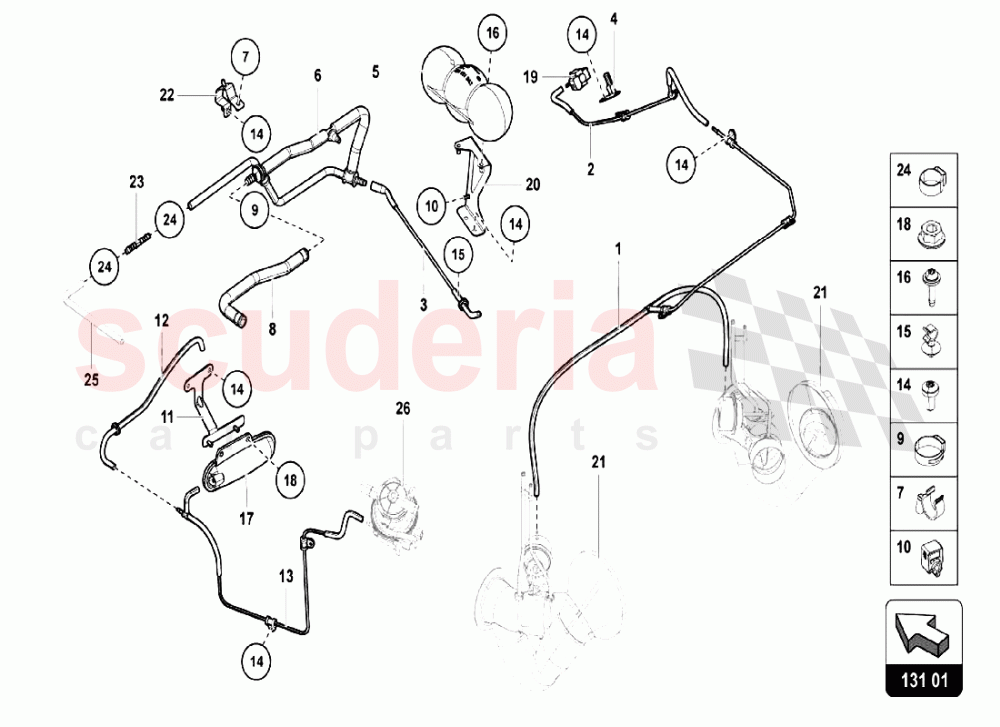

VACUUM SYSTEM of Lamborghini Lamborghini Aventador LP750 SV Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 470131377A
PIPE 		- 1 Enquire
002 470131056
PIPE 		- 1 Enquire
003 470131459B
VACUUM LINE 		- 1 Enquire
004 470131327
MOUNTING BAR 		- 1 Enquire
005 420131541
VACUUM RESERVOIR 		- 1 Enquire
006 470131375B
VACUUM PIPE 		- 1 Enquire
007 420201449
SECURING CLIP 		- 1 Enquire
008 470131386C
VACUUM PIPE 		- 1 Enquire
009 N10201901
CLAMP 		- 1 Enquire
010 8D0611797D
BRACKET 		- 1 Enquire
011 470131429A
BRACKET 		- 1 Enquire
012 470611908
VACUUM LINE 		- 1 Enquire
013 470611929
VACUUM LINE 		- 1 Enquire
014 N10335206
HEXAGON SOCKET FLAT HEAD BOLT 		- 14 Enquire
015 N10416402
BRACKET 		- 1 Enquire
016 N90939303
HEXAGON SOCKET OVAL HEAD BOLT (COMBI), SELF-LOCKING 		- 1 Enquire
017 4F0131541A
VACUUM RESERVOIR 		- 1 Enquire
018 N01508210
HEXAGON COLLAR NUT 		- 1 Enquire
019 37906283C
SOLENOID VALVE 		- 1 Enquire
020 470809163B
RETAINER FOR VACUUM CONTAINER 		- 1 Enquire
020 470253729B
CONNECTING PIECE 		- 1 Enquire
022 470131340C
CARRIER 		- 1 Enquire
023 470253729B
CONNECTING PIECE 		- 1 Enquire
024 N10196901
CLAMP 		- 2 Enquire
