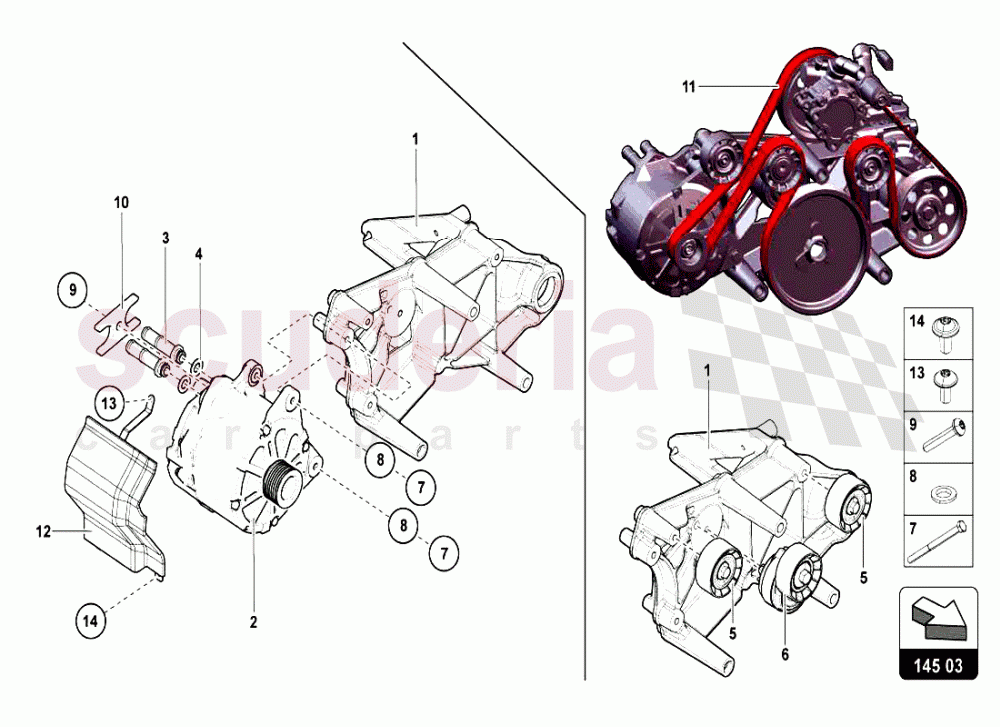

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
000	R8340118	TENSIONING DEVICE	R8340118 TENSIONING DEVICE	$135.92	1
001	470903103E	SUPPORT	470903103E SUPPORT	$654.60	1
002	7C903015B	3-PHASE ALTERNATOR (WATER-COOLED) IN STOCK	7C903015B 3-PHASE ALTERNATOR (WATER-COOLED) IN STOCK	$2,013.04	1
003	7M121131	HOSE CONNECTOR	7M121131 HOSE CONNECTOR	$52.91	2
004	WHT001011	O-RING	WHT001011 O-RING	$4.31	2
005	7M109564B	IDLER PULLEY	7M109564B IDLER PULLEY	$59.99	2
006	7M903133A	TENSIONING ROLLER WITH SECURING PARTS IN STOCK	7M903133A TENSIONING ROLLER WITH SECURING PARTS IN STOCK	$173.65	1
007	N10531802	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N10531802 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	$29.39	2
008	N0152785	WASHER IN STOCK	N0152785 WASHER IN STOCK	$0.40	2
009	N10156206	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10156206 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.63	1
010	7C121077H	RETAINING PLATE	7C121077H RETAINING PLATE	$81.06	1
011	7M903137C	Poly-V-Belt	7M903137C Poly-V-Belt	$37.47	1
012	470103653A	HEAT SHIELD	470103653A HEAT SHIELD	$540.33	1
013	N10586401	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10586401 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.95	1
014	N10406504	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10406504 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.74 MSRP: ~~7.20~~ (75.8% off)	2
