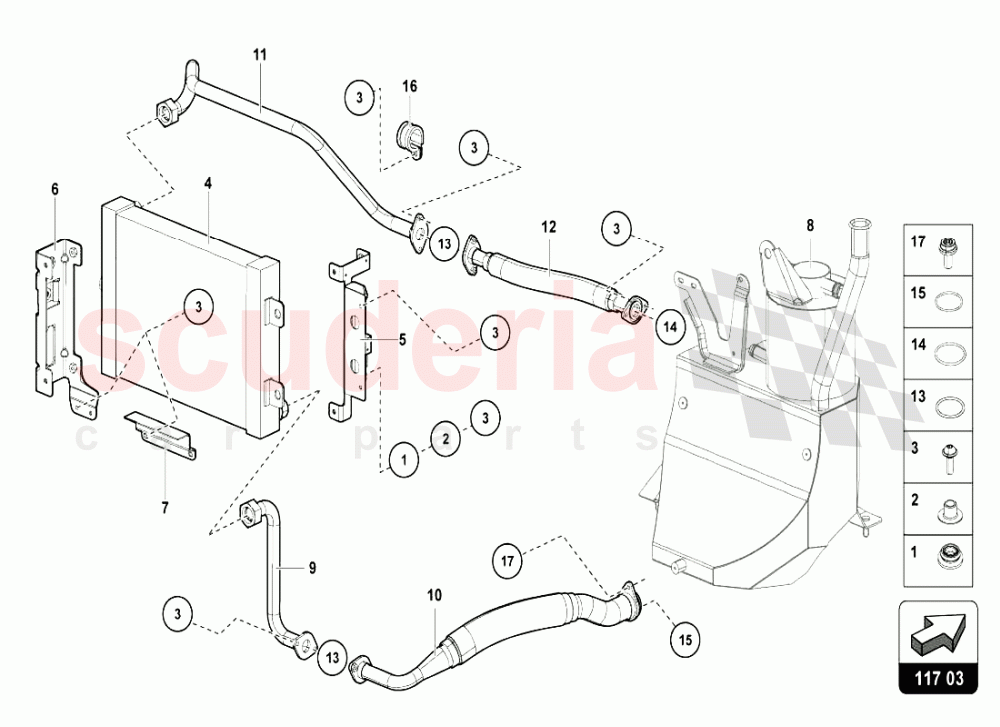

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8Z0129669A	GROMMET IN STOCK	8Z0129669A GROMMET IN STOCK	$6.11	3
002	8Z0129734	BUSH IN STOCK	8Z0129734 BUSH IN STOCK	$8.56	3
003	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.38	16
004	7M117021C	OIL COOLER	7M117021C OIL COOLER	$1,827.95	1
005	470115633	SUPPORT	470115633 SUPPORT	$84.15	1
006	470115632	SUPPORT	470115632 SUPPORT	$43.49	1
007	470117188	RETAINER FOR OIL COOLER	470117188 RETAINER FOR OIL COOLER	$31.25	1
009	470115655	PIPE	470115655 PIPE	$244.64	1
010	470115657B	PIPE	470115657B PIPE	$880.39	1
011	470115689A	PIPE	470115689A PIPE	$305.11	1
012	470115687	PIPE	470115687 PIPE	$579.30	1
013	WHT004894	SEAL RING IN STOCK	WHT004894 SEAL RING IN STOCK	$3.21	2
014	WHT004894	SEAL RING IN STOCK	WHT004894 SEAL RING IN STOCK	$3.21	1
015	WHT004896	SEAL RING ARRIVING SOON	WHT004896 SEAL RING ARRIVING SOON	$18.47	1
016	N0206244	CLAMP	N0206244 CLAMP	$4.37	1
017	N10717001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10717001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$2.96 MSRP: ~~7.22~~ (59% off)	1
